Basic Info
-
Model NO.: YSD4100A-Vet
-
Type: Ultrasound Scanner
-
Group: All People and Veterinary
-
Medical Devices Reg./Record No.: 20142230425
-
Outlook Design: Laptop
-
Display Mode: B, B+B, 4b, B+M, M
-
Outlook Color: White/Black Two Color
-
Production Capacity.: 100 Unit in Stock
-
Gray: 256
-
Transport Package: in Carton Box Packing
-
Origin: Chengdu
-
Classification: Imaging Diagnostic Equipment
-
Certification: CE, SGS, FDA, MSDS, ISO13485
-
Medical Device Regulatory Type: Type 2
-
Type.: Veterianry Ultrasound Scanner
-
Screen: 15 Inch High Resolution LED
-
Scanning Mode: Electronic Convex/Linear/Micro-Convex
-
USB: Yes
-
Tgc: 8-Segment Tgc
-
Trademark: YSD
-
Specification: 47cm*47cm*27cm
-
HS Code: 90181210
Product Description

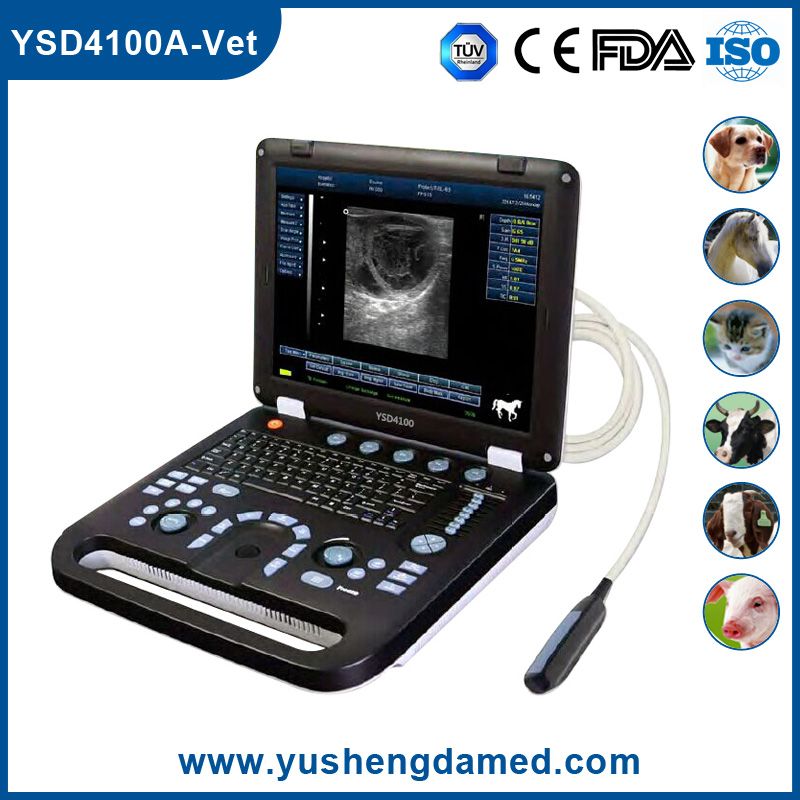

Main Feature:Laptop design and 5kg weight make it compact and easy to carry
Quick Boot-up with in 30 seconds,save waitting time
Enbed PC,Stablity,Security and Connectivity
2 -5hours battery working time, extends point-of-care when AC power is unavailable
15' high resolution LED monitor delivers superb image quality
Upgradable to personal computer for general office purpose(option)
Multi-language, almost a native speaker anywhere
Professional Measurement Software:
| Equine(GA) |
Bi-Parietal Diameter(BPD),Gastation Sac(GS) |
| Bovine(GA) |
Bi-Parietal Diameter(BPD),Crown-Rump Length(CRL) |
| Ovine(GA) |
Bi-Parietal Diameter(BPD),Crown-Rump Length(CRL) |
| Feline(GA) |
Head Diameter(HD),Binary-top Diameter (BD) |
| Ganine(GA) |
Crown-Rump Length(CRL),Binary-top Diameter (BD) |
Teachnical data:
Scanning mode
|
convex / linear / micro-convex
|
Probe
|
convex, linear, transvaginal, rectal |
Monitor
|
15 inch high resolution LED |
Operation panel
|
user-friendly, convenient and flexible with back-lit silica gel keyboard
& track ball operation |
Display mode
|
B, B+B, 4B, B+M, M |
Scanning depth
|
more than 244mm |
Resolution
|
lateral≤2mm, axial≤1mm |
Blind zone
|
≤3mm |
Geometry precision
|
lateral≤5%, axial≤5% |
Gray scale
|
256 |
Electronical focusing
|
2 focuses combination randomly |
Cine loop
|
256 frames, realized in automatic successive playback and manual
single step forward, backward playback |
Permanent image
storage
|
1024 |
Magnification
|
×0.8, ×0.8, ×0.90, ×0.95, ×1.0, ×1.05, ×1.10, ×1.20, ×1.30, ×1.40,
×1.50, ×1.60, ×1.80, ×2.0, ×2.2, ×2.5.(16 kinds) |
Body mark
|
143 |
Probe interface
|
2 |
Pseudo color
|
8 |
| Image processing |
up/ down, left / right, black / white convertion, edge enhancement,
gamma correction, frame correlation, pseudo color processor
( need external color display)
|
Measurement
|
distance, perimeter, area, volume, heart rate, gestational week,
FW, AFI, EDD , maternity table, heart package etc
|
| Note |
date, time, name, sex, age, doctor, hospital, comment, Chinese/ English conversion
|

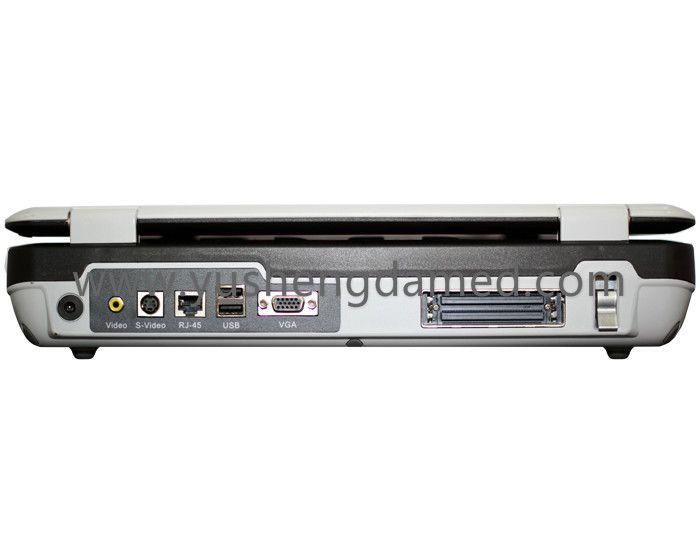

Output interface
|
PAL-D, SVGA (SVGA color monitor), USB port |
Main power supply
|
AC220V±22V , 50/60Hz |
