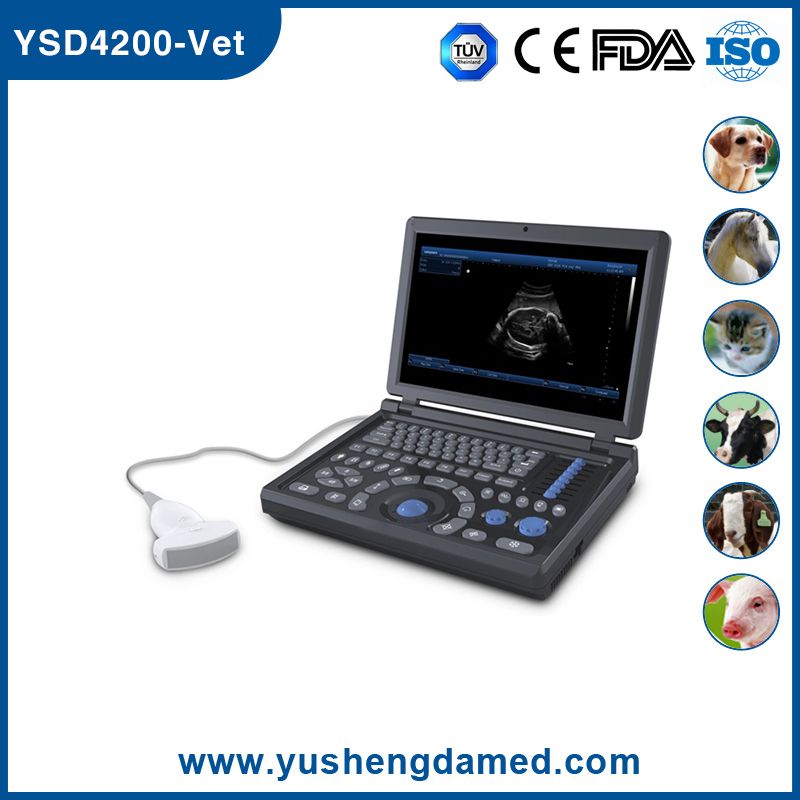

Ysd4200-Vet Ce Veterinary Ultrasonic Diagnosis Medical Equipment Ultrasound PC Based

$1898.00 /piece


Stock:	1000piece

Send Inquiry

Seller Support:

Trade Assurance — To protect your orders from payment to delivery

Product Details

Transaction Comments

Basic Info

Model NO.: YSD4200-Vet
Type: Ultrasound Scanner
Group: Middle-aged and Old
Medical Devices Reg./Record No.: 20142230425
Outlook Design: Laptop
Scanning Mode: Electronic Convex/ Linear/ Micro-Convex
Export Range: The Whole World
Production Capacity.: 100 Unit in Stock
Manufacture: Chengdu China
Transport Package: in Carton Box Packing
Origin: Chengdu

Classification: Imaging Diagnostic Equipment
Certification: CE, SGS, FDA, MSDS, ISO13485
Medical Device Regulatory Type: Type 2
Type.: Veterinary Ultrasound Scanner
Screen: 12.1 Inch
Display Mode: B, B/B, B/M, M, 4b, 9b
USB: Yes
Depth: 240mm
Trademark: YSD
Specification: 440mm. 360mm. 235mm
HS Code: 90181210

Product Description

Main Feature:

1.Dual interface

2.Can directly matche video,laser,ink jet printers to print report,no need any software,and image is real.

3.Can directly connect various kinds of probes with different elements,different specifications and different applications.

4.Equipped with lithium battery,which can be used more than four hours when the power is off.

5.Advanced and reliable pure digital PC platform,backlit silica gel keyboard.

6.Net weight:2.9kg,packaged by metal suitcase,light and easy to carry.

7.High definition 10.4/12.1 inch medical liquid crystal display.

8.with 3D reconstruction function

Professional Measurement Software:

Equine(GA)	Bi-Parietal Diameter(BPD),Gastation Sac(GS)
Bovine(GA)	Bi-Parietal Diameter(BPD),Crown-Rump Length(CRL)
Ovine(GA)	Bi-Parietal Diameter(BPD),Crown-Rump Length(CRL)
Feline(GA)	Head Diameter(HD),Binary-top Diameter (BD)
Ganine(GA)	Crown-Rump Length(CRL),Binary-top Diameter (BD)

Ysd4200-Vet Ce Veterinary Ultrasonic Diagnosis Medical Equipment Ultrasound PC Based

Technical Parameters:

Product Name: Full Digital Diagnostic Ultrasound System

Display Mode: B, B/B, B/M, M, 4B, 9B

Scanning Mode: Electronic Convex/ Linear/ Micro-convex

Depth:240mm

Screen:10.4^//12.1^/inchwide screen LED

*Probe Connector:2

Resolution:longitudinal≤1mm;horizontal≤2mm

Output Connecter:USB, DICOM, VGA

Gray Scale:256

Time Gain:gain:0~100dB;

TGC:8 segments,it can separately adjust under B Mode and M Mode

*Storage:image save,cine loop,big memory capacity≥10G. measurement results storage,report storage.

Cine Loop:64,128,256,512 frame auto/manual

Patient Information: Hospital Name ;Patient Name ; Record Number; Age; Gender; Record Save;

Focus:1-4 focuses, it can be combined by different methods and removed

*Zoom, Partial Enlargement:16 levels zoom,1-4 Real-time partial enlargement

Comments function:comments function in picture are Comments function in patient information

Chinese and English:operation interface can realize the change of Chinese and English

Body Mark:140

*multi-frequency check :THI5 segment frequencies+THI for check

*Have 3D software function

*Color Display: more than 40 kinds

AC/DC amphibious

*Report:display report, save report.

* Variable Angle scanning:25%,30%,35%,100% in total 16 levels angles

Image processing:image front-processing,image post-processing,dynamic range,frame correlation, line correlation, edge enhancemen, W/B overturn,L/R overturn, UP/DOWN overturn,gray project, gray curve, contrast, brightness, V correction, noise reduction

*Measurement and Calculation
Basic measurement in B mode:distance, circumstance, area, volume, angle, histogram, cross-section diagram, thurl angle;

Basic measurement in M mode:heart rate, time,slope;

Abdominal measurement:liver,gallbladder, kidney, pancreas,spleen;

Gynecology measurement:uterus,cervix uterus, endometrium, ovary, ovarian follicle, hydatoncus, enclosed mass;

Obstetric measurement:AC,BPD,CRL,FL,THD,GS,OFD,HUMERUS,TIDIA,ULNA,HC,TAD,APTD,FTA. It can measure the age of fetus, weight of fetus, AFI, the analytical report of fetus and the growth curve;

Cardiology measurement:LV,LV function,aorta, mitral valve;

Urology measurement:Left renal volume, Right renal volume, RUV,prostate kidney;

Small organs measurement:ophthalmology, thyroid,jaw and face;

Standrd Configuration

Standard configuration	YSD4200-Vet main unit,
	3.5MHz convex probe,
	Power Adapter
	Lithium Battery
	Aluminum Box
	Certifications
	user manual
	Packing list
	warranty list
Optional	3D function software
	Electronic linear array probe
	Electronic rectum probe
	Electronic micro-convex probe
	Electronic high frequency linear probe
	Electronic convex cardic probe
	Video printer, laser printer, inkjet printer
	Foot switch
Delivery Time	within 3-5 working days after payment
Warranty	24months
Packing size	490mm×385mm×250mm
Gross Weight	9KG
