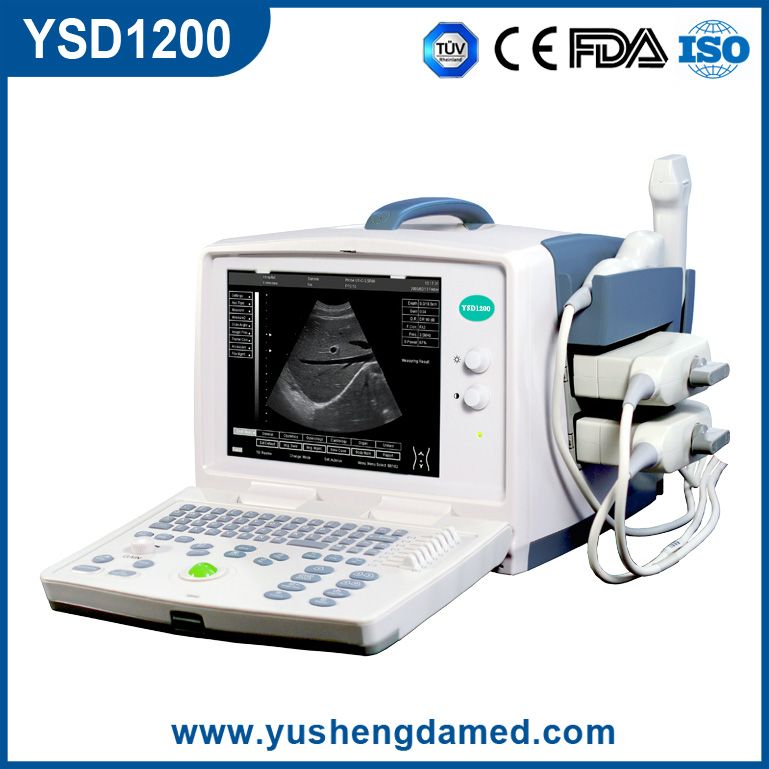

YSD1200 incorporated with the latest micro-electronic technology and image processing techniques,  this model B/W ultrasound
scanners deliver efficient operation workflow and confidence in ultrasonic diagnosis.



Main Feature

10.4" LCD display, environment protection

 Multi-frequency probe

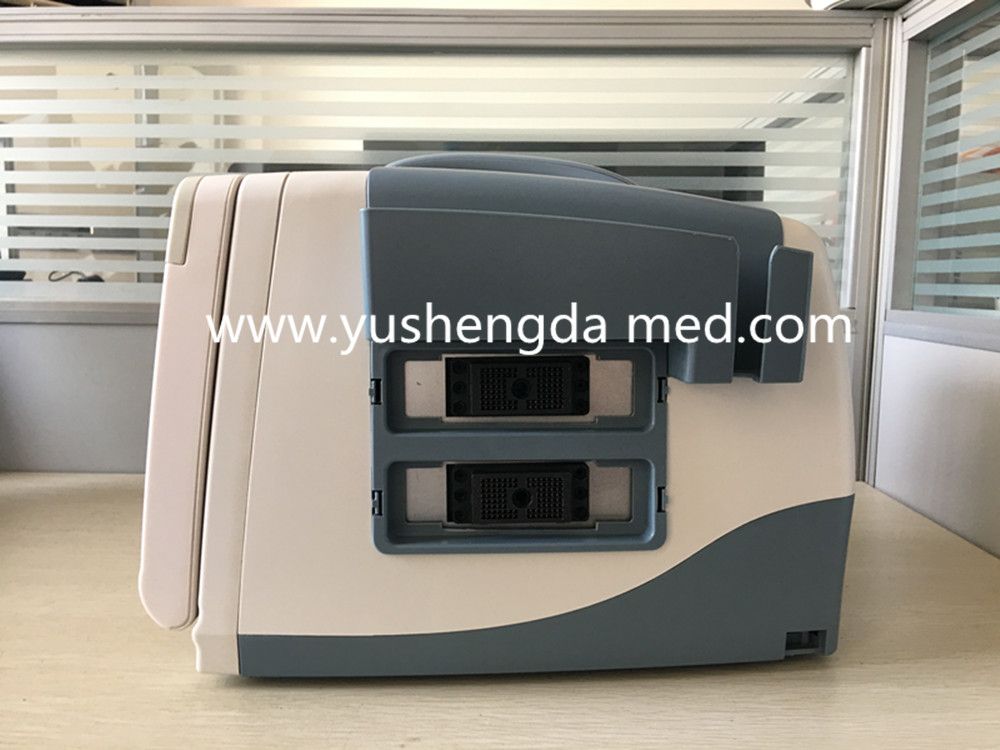

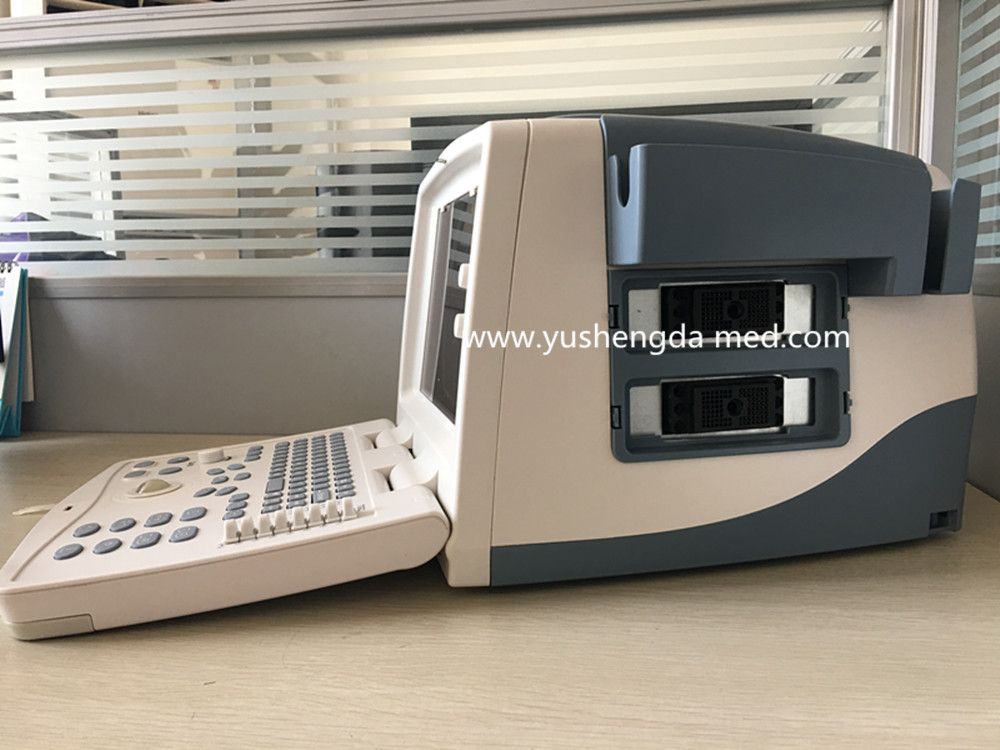

2 activated probe ports, easy probe switch

8-segment TGC, precise adjustment of near/far gain

Embed PC, stability, security and connectivity

Abundant diagnostic software packages, satisfying different clinical requirement

Various peripheral ports, flexible expansion solutions

Smart 3D imaging (option), vivid presentation of fetus face

Technical specifications

Safety standard: IEC 60601-1, 60601-1-2, EN 60101

AC: 110-220V, 50/60Hz, ±10%

Net weight: 9 kgs

Monitor: 10.4" LCD

TGC: 8 segments

Body mark: 123 types

Gray scale: 256

Scanning method: electronic convex/linear/micro-convex

Probe: electronic convex/linear, broadband, multi-frequency, THI on all probes

Clinical application: General, Obstetric, Gynecology, Cardiology, Urology, Small organ, etc

Display mode: B, 2B, 4B, B/M, M

Zoom: continuously, real-time dynamic PIP

Image storage: >50,000 frames

Cine loop: Auto 512 frames

Image/video format: AVI, JPG, BMP, PNG, TIF, DCM (DICOM)

Scan angle: 40-160 degrees, depending on probe

Scan depth: 30mm~300mm, depending on probe

Dynamic range: ≥120dB, 4-level adjustable

Image flip: up/down, left/right, black/ white, 90/180/270°

Annotation: date, time, name, sex, age, doctor, hospital name, etc

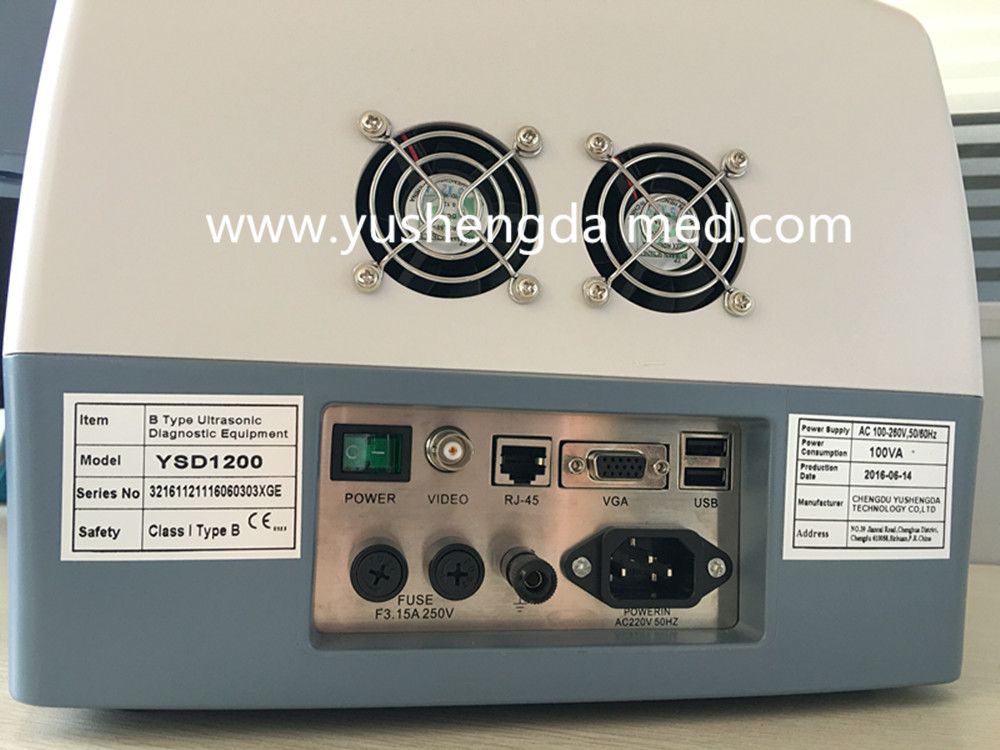

Peripheral port: Video, S-video, USB2.0, DICOM3.0, VGA



Standard Accessary
YSD1200  main unit
3.5MHz convex probe
Electric wires
User manual
Packing list
Warranty list

Option
3D function
5.0Mhz cardiac probe
6.5Mhz transvaginal probe
7.5Mhz high frequency linear probe
7.5Mhz endorectal linear
DVD-RW
VIDEO, Laser printer
Biopsy bracket
Foot switch



Probe
