Main Feature

1.Smart Design, 800g

2. 7 inch LCD monitor

3.Comprehensive Clinic Application

4. Abundant diagnostic software packages, satisfying different clinical requirement

5.  High-accuracy full digital imaging technology shows true details of the tissues' structure

6. 3-5 Hours for continuous operation with battery

7. Multi-frequency Convex/Linear/Waterproof probes

8. Various display modes realizes comparative observation from multiple angles and direction.




Probes

Technical Specifications
Gray Shade: 256 levels
Monitor: 7inch' Color LCD
Display Mode: B, B+B, B+M, M, 4B
Probe Frequency::Multi-frequency
Scan Mode: Convex/Linear array/Mechanical etc.
Gray Shade: 256 levels
Scan Depth: 70~260mm, adjustable
Cine Loop: ≥ 1024 frames
Built-in Memory: 1024 images
Focus Position: 2 points adjustable
Annotation: date, clock, name, Sex, ID, Age
Full screen editor.Battery Working Time: ≥ 3 hrsBattery Charging Time: ≥ 2hr
Net Weight: 800g
Battery: inner Li-Batterry 3-5hours
Package: metallic case in a carton box
Image Reservation: up/down, left/right
Image Procession: Coded color, GAMA,
HistogramAnd Image Smoothen,
TCG: N.G (near gain) adjustable; F.G.(far gain) adjustableO.G (overall gain) adjustable
Language: English/Chinese switchable
Measurement: Distance, Circumference, Area,
Volume and Heart Rate
OB Measurement:
EQUINE----GSD
BOVINE----BL/SL/HL
SWINE------HL
Sheep/Goat -- USD
Cat - HD, BD
Dog - BD, GSD, CRL, HD, BDAC adapter: 110~240V, 50/60Hz


Standard Accessary

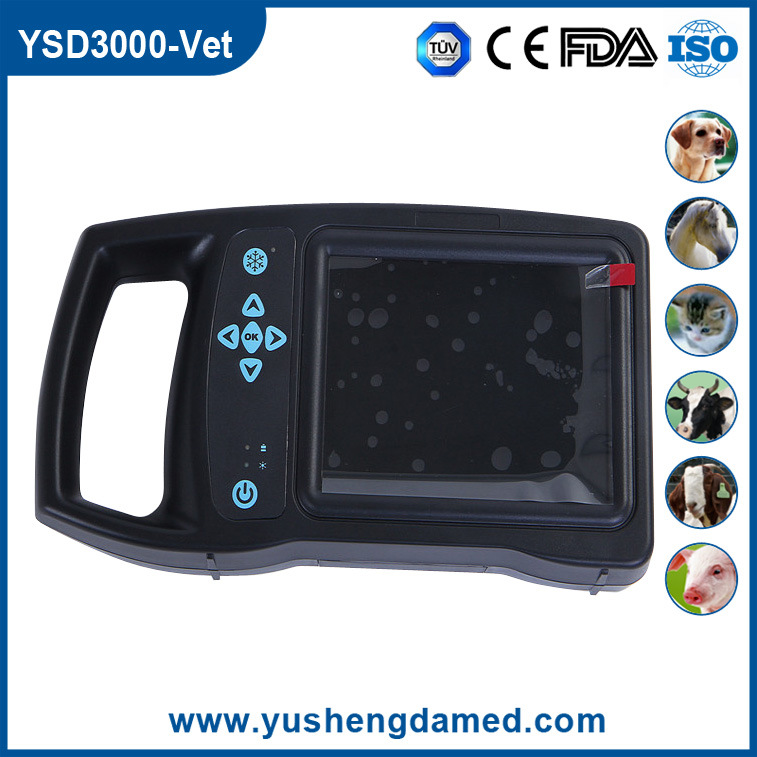

YSD3000- Vet  main unit

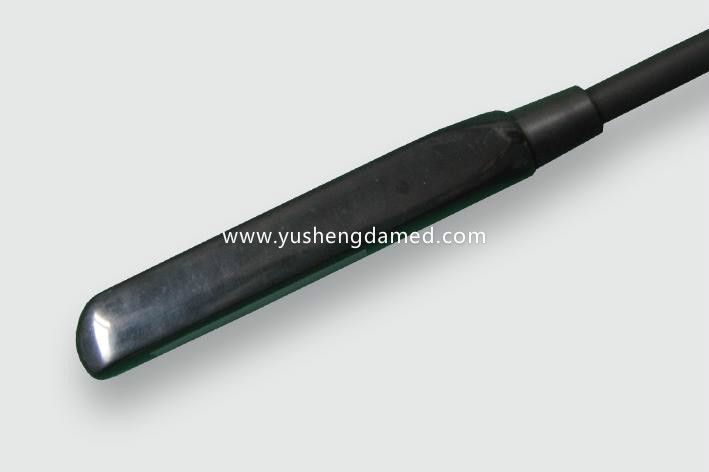

3.5MHz convex probe
Electric wires
User manual
Packing list
Warranty list

Option
3D function
5.0Mhz cardiac probe
6.5Mhz transvaginal probe
7.5Mhz high frequency linear probe
7.5Mhz endorectal linear
DVD-RW
VIDEO, Laser printer
Biopsy bracket
Foot switch


Why choose us:
we got production and business certification from Chengdu food and Drug Administration
we got business license from Chengdu City Administration of industry and commerce
we got products certificate of registration and have checked in the website of SFDA
we have accepted the onsite check from SFDA every quarter
we finished the training of laws and regulations in medical equipments field
We have well-established system about material purchasing, employee training,store management,after-sales service process.etc
We adheres the beliefs of "Support Healthy Life", and our company spirits are quality, service,trust,thanksgiving;
