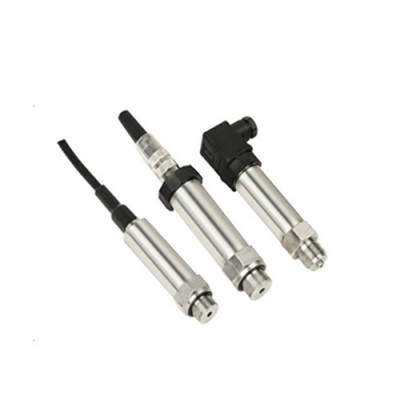

Model: CJBP-IB CJBP-IB product is piezo-resistive pressure transmitter with zero and span adjustable. It uses high stable and reliable pressure sensor and special circuit board to produce transmitter, and performance is good and reliable. CJBP-IB pressure transmitter is used for measure and control of petroleum, chemi-industry, electric power, hydrology and flow pressure measure, etc.
Features Reliable performance, easy application Short protection and reverse polarity protection Measure gauge, absolute and sealed gauge
Application Measure temperature of gas or liquid which is compatible to 316L stainless steel Used in field of petroleum, chemical industry, metallurgy, Electricity, hydrology etc.
Range: -100kPa…0kPa~10kPa…100Mpa Pressure type: Gauge / Absolute Over pressure: 1.5 times FS / 110MPa (min. value is valid) Accuracy: ±0.5%FS Stability: ±0.3%FS/YEAR Zero thermal drift: ±0.1%FS/℃(≤100kPa); ±0.05%FS/℃(＞100kPa) Span thermal drift: ±0.1%FS/℃(≤100kPa); ±0.05%FS/℃(＞100kPa) Application Temp.: -10℃~60℃ Storage Temp.: - 40℃~85℃ Power Supply: 9V～28V DC, 15V DC (recommended) Output signal : 2-wire 4～20mA DC; 3-wire 0/1～5VDC，0～10/20mA DC Insulation: 100V, 100M Protection: IP65 (B1,B2); IP63(B3); IP68(Level) Electric Connection: Cable or Junction Box Weight: about 160g Housing: S.S. 304 Diaphragm: S.S. 316L O- Ring: Viton ① Shrinking range is 1/5 basic range, no range extension. ② For special temperature requirement, please feel free to contact our company.
Electric Connection: Transmitter connecting the outsude by cable or connection box;
Electric connection for transmitter with 2-wire 4～20mADC output:
Reminders when choose models 1. Pay attention to media which is measured is compatible with part of product 2. Anti-exposion products don't have LCD or LED dial 3. Order temperature transmitter with LCD or LED dial, the power voltage shouldn't be less than 20VDC 4. In order to keep stable performance, we suggest user to install lightning protection device 5. If there is strong vibration, strong electromagnetic, RFI, please state before order and indicate in order.
Order Guide
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
