Characteristics & Usage

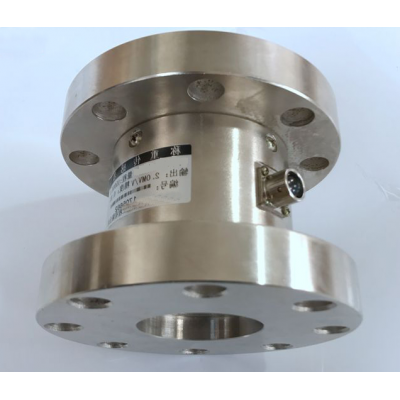

This series of torque signal coupler with:
1, torque measurement function;
2, energy and signal non-contact transfer function;
3, the output signal digitization function;
4, can pass static torque signal, rotating torque signal, dynamic torque signal, static torque signal;
5, the transmission signal with whether the rotation, speed and turn irrelevant;
6, static shell and between the rotating disk without bearings, can adapt to a long time, high speed operation;
7, high precision, good stability;
8, small size, light weight, easy to install;
9, without repeated zero can be continuous transmission of positive and negative torque signal;
10, there is no wear ring and other wear parts, you can run for a long high speed;
11, strong anti-interference;
12, can be any position, any direction to install.

Dimensions (Unit: mm)

Technical Parameters

1, Measure range:5,10,20,50,100,200,500,1000,2000,3000,5000N.m

Divided into nine ranges, three dimensions, non-standard can be customized.

2, accuracy: 0.5% F·S

3, the application speed of 6000 r / min the following

4, ambient temperature: 0 ℃ -50 ℃

5, frequency response: 100 μs

6, the output signal: 0-12v square wave frequency

Load current <10mA.

Zero torque: 10 KHZ

Positive full scale: 15KHZ

Reverse full scale: 5 KHZ

7, the signal socket: (1) 0V. (2) +15 V. (3) -15V. (4) empty (5) Torque signal.

Technical Parameters

1, Measure range:5,10,20,50,100,200,500,1000,2000,3000,5000N.m

Divided into nine ranges, three dimensions, non-standard can be customized.

2, accuracy: 0.5% F·S

3, the application speed of 6000 r / min the following

4, ambient temperature: 0 ℃ -50 ℃

5, frequency response: 100 μs

6, the output signal: 0-12v square wave frequency

Load current <10mA.

Zero torque: 10 KHZ

Positive full scale: 15KHZ

Reverse full scale: 5 KHZ

7, the signal socket: (1) 0V. (2) +15 V. (3) -15V. (4) empty (5) Torque signal.
