Product Details

Transaction Comments

Basic Info

Model NO.: EH-MC10+
Type: Wireless
Information content: Data
Condition: New
Trademark: EHOG
Specification: 17.7*11.95*2.2mm
HS Code: 8517629900

Usage: Telephone, Computer, Workstation
Support Network: Bluetooth
Certification: CE, RoHS, Red, FCC, Bqb, IC
Industrial: Iot
Transport Package: Tray
Origin: Shanghai, China

Product Description

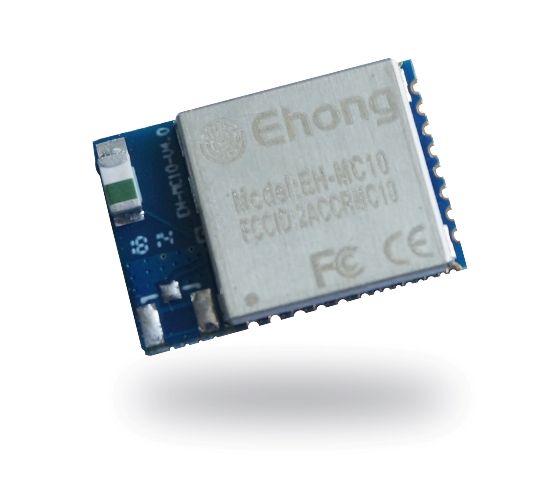

Qualcomm mesh CSR1010 BT4.1
Low Energy bluetooth module
Website:

Mesh version
EH-MC10 Bluetooth low energy single mode module is a single mode device targeted for low power sensors and accessories. The module offer all Bluetooth low energy features: Radio, stack, profiles and application, so no external provides flexible hardware interfaces to connect sensors, simple user interfaces or even displays directly to the module.

The module can be powered directly with a standard 3V coin cell batteries or pair of AAA batteries. In lowest power sleep mode it consumes only 600nA and will wake up in few hundred microseconds.

Key Features

Radio feature:	Bluetooth 4.0 low energy radio Transmit power: +7.5 dBm Receiver sensitivity: -92.5dBm Integrated antenna TX peak current: 18.2mA RX peak current: 14.3mA Dormant current: < 600nA
Software features:	Ehware's host protocol Embedded Ehware's Bluetooth Smart Stack Ehware's ATCMD for standalone applications Ehware's profile toolkit for developing Bluetooth Smart profile
Bluetooth features:	Bluetooth Smart(low energy)support L2CAP, ATT, GATT, GAP and Security Bluetooth Smart Profiles Slave and master mode Up to 8 connections in master mode 100Kbps + throughput Over-the-Air firmware upgrade
MCU features:	8051 microcontroller 256kB or 256kB Flash
Hardware features:	UART host inferface SPI, I2C, PWM, UART, GPIO peripheral 10-bit ADC IOs Temperature range: -30 to +80 Dimensions: 17.711.951.6 mm Power supply: 1.8- 3.6V U. FL port

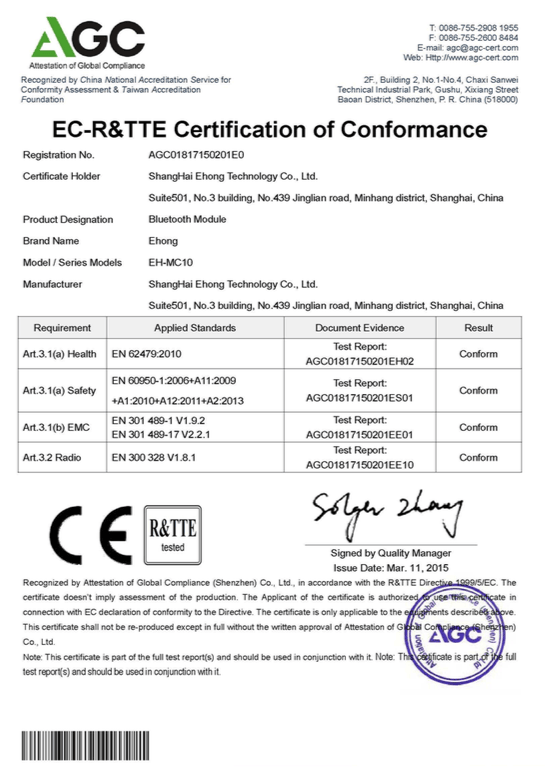

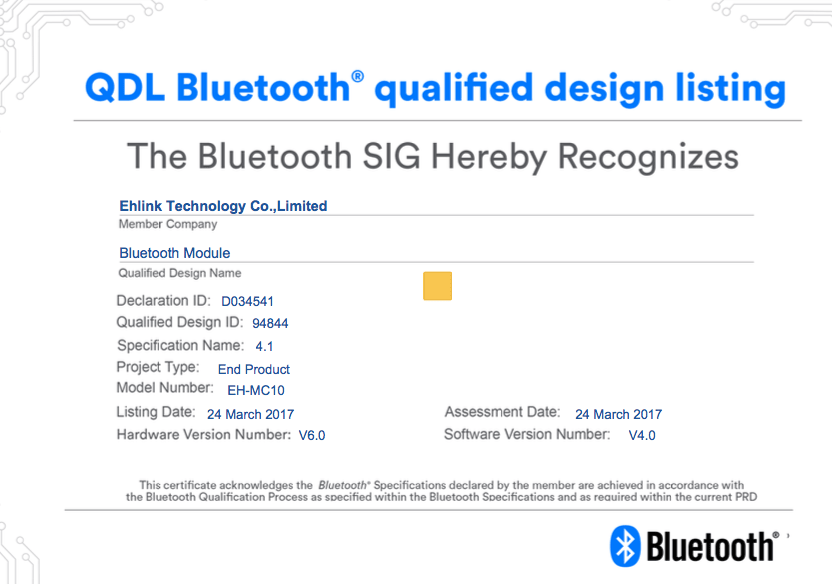

Qualification:	RoHS CE FCC IC Bluetooth BQB
