CSR1010, Bt 4.1 BLE Medical Security Bluetooth Module

Add to wish list

+ Add a New List

Qualcomm CSR Data Transmit Classii Bluetooth Module

$5.50 /piece


Stock:	1000piece

Send Inquiry

Seller Support:

Trade Assurance — To protect your orders from payment to delivery

Product Details

Transaction Comments

Basic Info

Model NO.: EH-MA41
Type: Wireless
Information content: Data
Condition: New
Connect: Wireless
Transport Package: Carton
Origin: Shanghai, China

Usage: Telephone, Computer, Mobile phone
Support Network: Bluetooth
Certification: CE, RoHS, Bqb, Red, FCC, Kc
Industrial: Iot
Trademark: EHONG
Specification: 25.8*13.4*2.2mm
HS Code: 8517629900

Product Description

CSR Transmit Data module

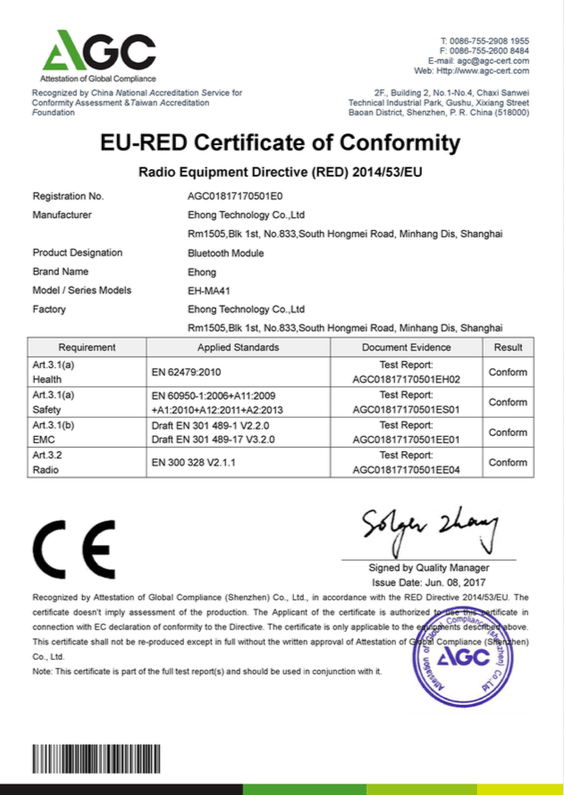

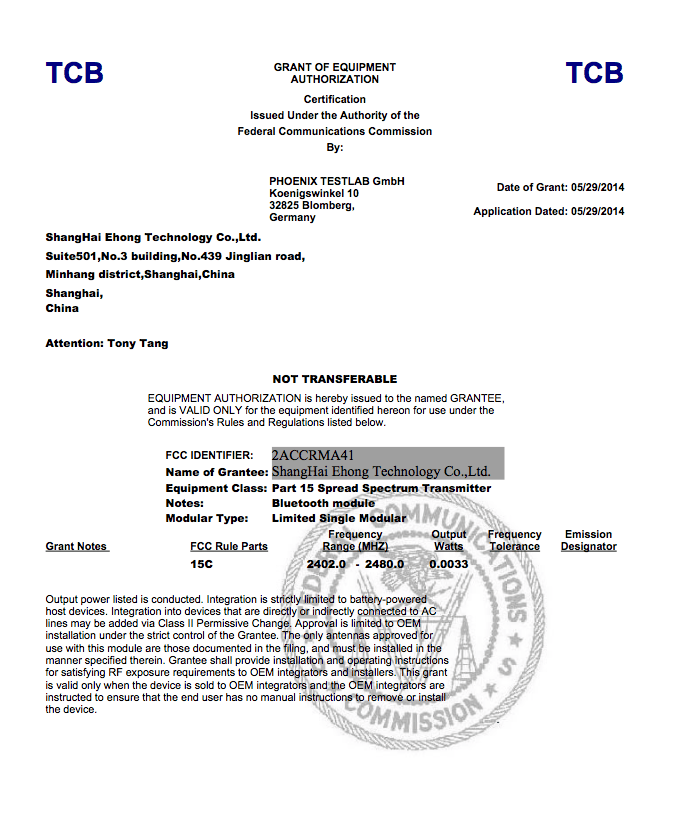

Full of Certification: BQB, RED, FCC, IC, KC

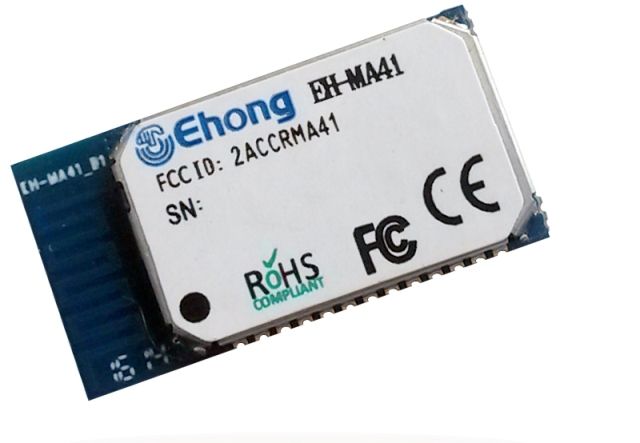

EH-MA41 is a class 2 Bluetooth® 2.1+EDR (Enhanced Data Rates) module. It is a highly integrated and sophisticated module which contains all the necessary elements from radio to antenna and a fully implemented protocol stack. It is an ideal solution for integrating Bluetooth® Into various products with limited knowledge of Bluetooth® And RF technologies.
With Ehware's AT command stack firmware, designers can easily customize their applications to support different Bluetooth profiles, such as SPP, HID, HFP and iAP etc.

Key Features

Radio feature	2.1+EDR Transmit power: +4 dBm Receiver sensitivity: -84dBm Integrated antenna Maximum data rate: 60Kbytes/S Typical line-of-sight range: 10-15 meters Frequency: 2.042GHz to 2480GHz
Software	Ehware's Bluetoth stack 13 bluetooth profiles Apple iAP support Up to 8 connections in master mode
Hardware features	UART and USB host inferface Audio interfaces: PCM Temperature range: -45 to +85 Dimensions: 2513.42.2 mm Power supply: 2.7- 3.6V
Qualification	Bluetooth BQB RED, FCC RoHS
