Nordic Nrf51 Bt4.2 Low Energy Bluetooth Module

$5.00 /piece


Stock:	1000piece

Send Inquiry

Seller Support:

Trade Assurance — To protect your orders from payment to delivery

Product Details

Transaction Comments

Basic Info

Model NO.: EH-MC30
Type: Wireless
Information content: Data
Condition: New
Chipset: Nordic Nrf51802
Trademark: EHONG
Specification: 15.72*9.15*2.2mm
HS Code: 8517629900

Usage: Telephone, Computer, Server, Mobile phone
Support Network: Bluetooth

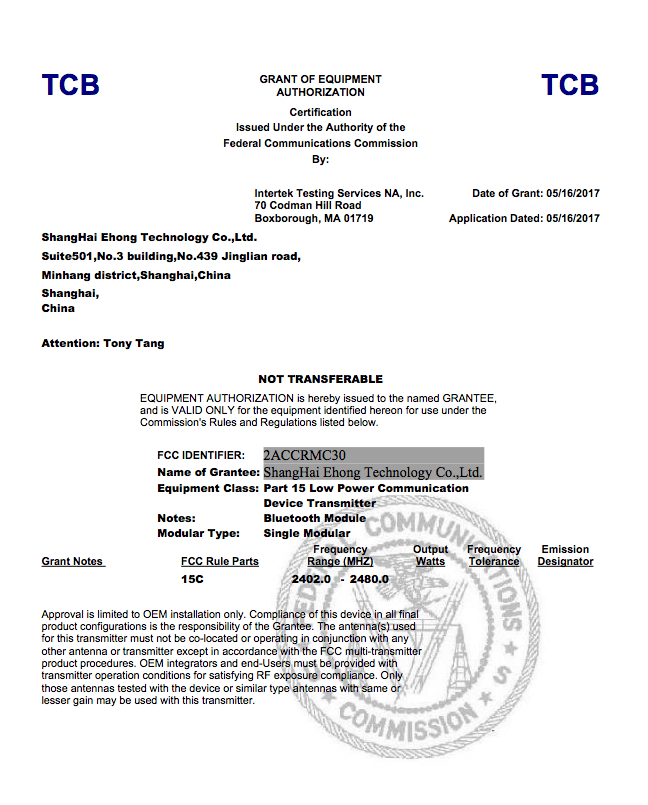

Certification: CE, RoHS, Red, FCC, IC
Industry: Iot
Sdk: Open
Transport Package: Cartonrton
Origin: Shanghai, China

Product Description

Ultra Low Power Wireless Solutions from NORDIC
website:

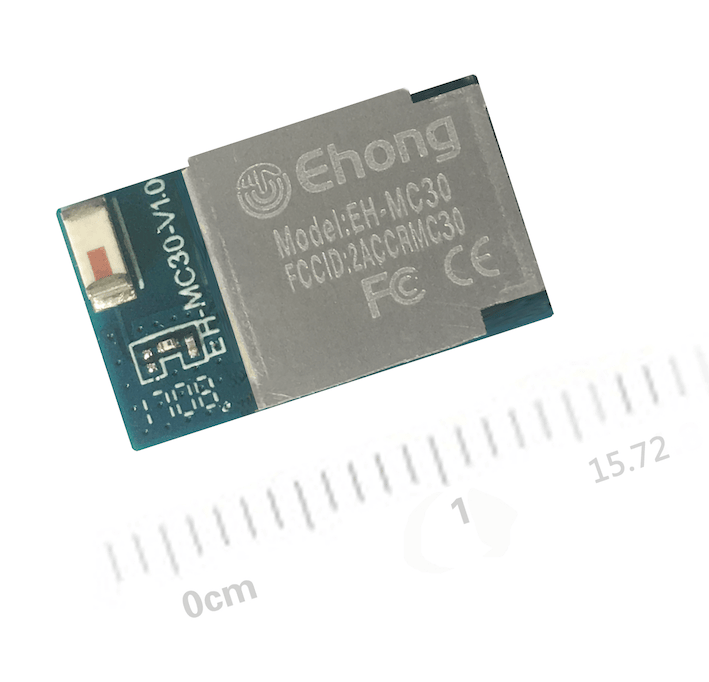

EH-MC30 Bluetooth® low energy single mode module is a single mode device targeted for low power sensors and accessories. The module offers all Bluetooth® low energy features V4.2: radio, stack, profiles and application space for customer applications, internal integration Cortex-M0 CPU so no external processor is needed. The module also provides flexible hardware interfaces to connect sensors, simple user interfaces or even displays directly to the module. The module can be powered directly with a standard 3V coin cell batteries or pair of AAA batteries. In lowest power sleep mode it consumes only 2.6uA and will wake up in few hundred microseconds. After buying Bluetooth® module, we provide free technical support APP of iOS or Android.

Bluetooth® Radio	- Fully embedded Bluetooth® v4.2 single mode - TX power +4 dBm, -93dbm RX sensitivity - 128-bit encryption security - Range up to 80m - Integrated chip antenna or U.FL port - Multipoint capability (2devices at master) - 32-bit ARM Cortex M0 CPU core
Support Profiles	- BLE (Master and slave) the same - The generic attribute profile (GATT) - HID Health care, Sports and fitness, Proximity sensing - Alerts and timer profiles - HID (keyboards, remote)
User Interface	- UART(CTS/RTS) - SPI master/Slave interface - Debug SPI interface for programming(SWD) - I²C master controller - Quadrature Decoder (QDEC) - Real Timer Counter (RTC) - 4 x LED PWMs - 10 bit Aux ADC - 256 KB internal flash
General I/O	- 22 general purpose I/Os - 5 analogue I/O (10bit ADC) • Single voltage supply: 3.3V typical • Small form factor: 15.72 x 9.15x 2.2mm • Operating temperature range: -25 °C to 75 °C
