Wheel Repair CNC Lathe Machine
Add to wish list
22
+ Add a New List

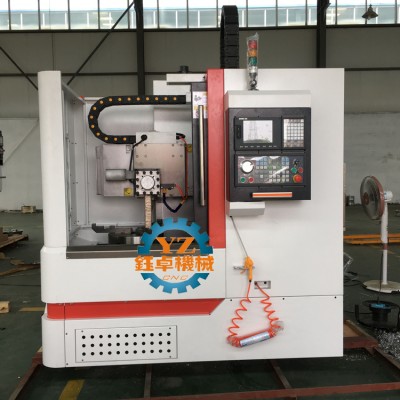

Bigger Vertical Wheel Repair CNC Lathe Machine
Wheel Repair
$19000.00 /Unit
Stock: 1000Unit
Send Inquiry
Seller Support:
Trade Assurance — To protect your orders from payment to delivery
Product Details
Transaction Comments
:

Model

WRC28V

Max. swing over bed

820mm

Max. process diameter

720mm

Chuck diameter

400mm

Spindle speed

50-1500rpm

Cutting speed

0.1-1000mm/min

Tool post vertical moving distance

200mm

Tool post horizontal moving distance

-50~350mm

X rapid speed

8000mm/min

Z rapid speed

8000mm/min

Tool post

Manual 4 position tool post

Arbor Section

20x20mm

Main motor power

5.5kw

Feed motor power

X: 1.6kw/10nm

Z: 1.6kw/10nm

Coolant pump motor power/ flow rate

0.9kw/ 25L/min

Accuracy

0.015 mm

Repeatability

0.012mm

Weight

3200kg

Dimension (L*W*H)

2400*1970*2270mm
