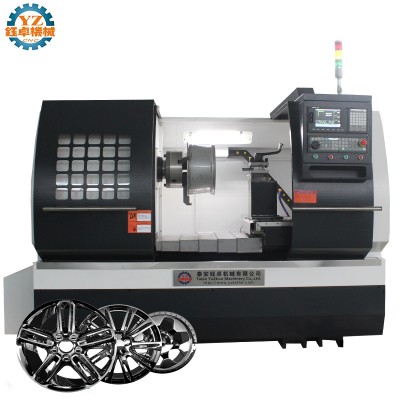

Model

WRC26

Max. swing over bed

Φ720mm (28’)

Max. swing over cross slide

Φ540mm

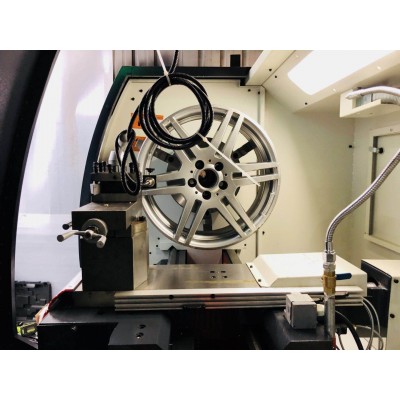

Max. size of alloy wheel

26’

Cross slide travel

350mm

Width of the rail

330mm

Length of the rail

1320mm

Size of the 3-jaw chuck

12’

Range of spindle speed

50~2000rpm

Spindle speed control

Automatic

Spindle bore

Φ60mm

Taper of spindle bore

MT6

Taper of spindle nose

A2-6

Max. size of tool post

25×25mm

Stations of tool carrier

4 position

Min. setting unit of motor

(Z) long   0.001mm

(X) cross  0.001mm

Moving speed of post

(Z) long 8m/min

(X) cross  4m/min

Motor power

7.5kw

Machine base

Whole cast iron base

Machine size (L*W*H)

2200*1650*1750mm

Net weight

2600kg
