No.

Item

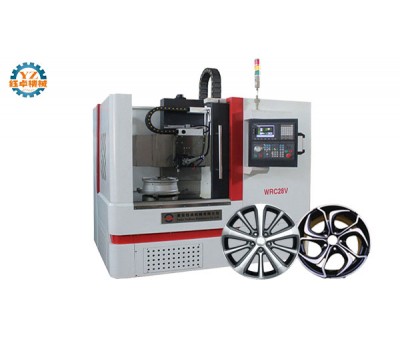

WRC28VM

1

Max. swing over bed

750mm

2

Max. process diameter of wheel

730mm

3

Max. size of wheel repair

28--32inch

4

Chuck diameter

320mm

5

Spindle speed

50-1500rpm

6

Cutting speed

0.1-1000mm/min

7

Max. travel

X/Z: 410/400mm

8

Rapid speed

X/Z: 8000mm/min

9

Tool post

Manual 4 position tool post

10

Section of tool post

25×25mm

11

Feed motor power

X/Z: 1.6kw/10Nm

12

Linear guide nominal width

30mm

13

Accuracy

0.015mm

14

Repeatability

0.012mm

15

Main motor power

7.5kw

16

Weight

1300kg

17

Dimension

1500×1820×2050mm
