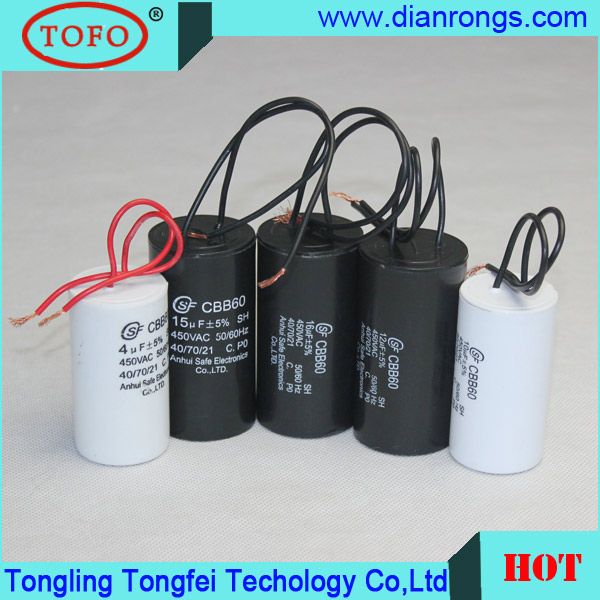

Cbb60 Cbb61 Cbb65 250V Sh AC Motor Run Capacitor

$1.80 /piece


Stock:	1000piece

Send Inquiry

Seller Support:

Trade Assurance — To protect your orders from payment to delivery

Product Details

Transaction Comments

Basic Info

Model NO.: CBB60
Application: General Purpose, AC / Motor, Power, Lighting, Air Conditioner, High Voltage, Fan, Automobile, Water Pump
Capacitance: 1~60UF
Manufacturing Material: Plastic Case and Capacitor Mpp Film
Usage: AC Motor, Air Conditioner,Water Pump
Filter: Film Capacitor
Rated Voltage: 200~500VAC
Operating Temperature: 40/70/21 or 40/85/21
Class of Safety Protection: P0/P2
Shape: Cylinder
Lead out: Pin or Wire
Specification: CBB60 AC Motor Capacitor
HS Code: 853225900

Type: Polypropylene Capacitor
Packaging Type: Surface Mount
Structure: Fixed Capacitor
Electrolyte: Film Capacitor
Tuning: Polystyrene Capacitor
Model No.: Cbb60 Capacitor
Capacitance Tolerance: 5%
Class of Operation: Class B, Class C
MOQ: 1 PCS
Capacitor Case: Plastic
Trademark: TOFO / OEM
Origin: Tongling City Anhui Province China(Mainland)

Product Description

7×24 hours Sincerely Service for You

******Basic Info.******
***Quick Detail***

Basic specifications
Model No.	CBB60 Capacitor
Type	CBB60 CBB61 CBB65 250v SH AC Motor Run Capacitor
Structure	Single Film Capacitor
Capacitance	1~60uF
Capacitance Tolerance	±5%
Rated Voltage	200~500VAC
Manufacturing Material	Polypropylene
Electrolyte	Polypropylene Film
Class of Operation	Class B,Class C
Operating Temperature	40/70/21 or 40/85/21
Class of Safety Protection	P0/P2
Package Type	Export Carton
Production Capacity	500,000pcs/Month
MOQ	1 pcs
Size	Available on Request (Customized Capacitor)

***The Composite Capacitor can be also customized producing according to our customer's request.

***Product Description***
The capacitor takes heavy-edge metallized Al/Zn PP film as electrodes and dielectric. Its components are sealed with flame-retardant epoxy resin.It has cylindrical outline with high moisture resistance and stability.

***Technical Specifications***

Reference standards	GB/T 3667.1 ( IEC60252-1 )
Climatic category	40/70/21,40/85/21
Class of operation	Class B(10000h) Class C(3000h)
Class of safety protection	P0/P2
Voltage range	200~500VAC
Capacitance range	1~60μF
Capacitance tolerance	±5%
Dissipation factor	20×10-4(100Hz,20ºC)
Test voltage terminal to terminal UTT	2 Un for 2 seconds
Test voltage terminal to case UTC	(2Un+1000)VAC or 2000VAC-50Hz for 60 seconds
Insulation Resistance	≥3000MΩ. μF(100Hz,20ºC,1min)

***Application***
CBB60 capacitor broadly applied to starting and running of AC single-phase motors at 50Hz(60Hz) frequency for washing machine and high efficiency compressors of refrigerators etc.

******Additional Info.******
Company Name: Tongling Tongfei Technology Co.,Ltd
Trademark: TOFO
Standard: GB/T 3667.1 or IEC 60252-1
Origin: China(Mainland)
Export Market: Global

***Appearance & Application***
Installation Type: Through Hole
Shape: Cylinder
Capacitor Case: Plastic
Lead out: Pin or Wire
Application: CBB60 Capacitor applied to General purpose,AC motor,Power,Lighting,Air Conditioner,High voltage,Fan,Automobile,etc.

***Packing&Delivery***
Packing: Export Standard Carton Packing for Capacitors
Delivery Detail: 7~15 days after payment
Port: Shanghai or Ningbo

***Dimensions(mm)***

Specifications	Routine		With screws or pins
Specifications	450VAC	250VAC	450VAC	250VAC
1μF	Φ26×52	Φ26×52	Φ30×52	Φ30×52
2μF	Φ26×52	Φ26×52	Φ30×52	Φ30×52
2.5μF	Φ26×52	Φ26×52	Φ30×52	Φ30×52
3μF	Φ26×52	Φ26×52	Φ30×52	Φ30×52
3.5μF	Φ26×52	Φ26×52	Φ30×59	Φ30×52
4μF	Φ28.5×55	Φ26×52	Φ35×62	Φ30×52
4.5μF	Φ28.5×55	Φ26×52	Φ35×62	Φ30×52
5μF	Φ28.5×55	Φ26×52	Φ35×62	Φ30×52
5.5μF	Φ34×62	Φ26×52	Φ35×62	Φ30×52
6μF	Φ34×62	Φ26×52	Φ35×62	Φ30×52
6.5μF	Φ34×62	Φ26×52	Φ35×62	Φ30×52
7μF	Φ34×62	Φ26×52	Φ35×62	Φ30×52
8μF	Φ34×62	Φ26×52	Φ35×62	Φ30×52
9μF	Φ34×62	Φ26×52	Φ35×62	Φ30×52
10μF	Φ34×62	Φ26×52	Φ35×72	Φ30×52
12μF	Φ37×73	Φ26×52	Φ35×72	Φ30×61
14μF	Φ37×73	Φ34×62	Φ40×72	Φ30×61
15μF	Φ37×73	Φ34×62	Φ40×72	Φ30×61
16μF	Φ37×73	Φ34×62	Φ40×72	Φ30×61
18μF	Φ37×73	Φ34×62	Φ40×72	Φ35×67
20μF	Φ40×70	Φ34×62	Φ40×72	Φ35×67
25μF	Φ42×80	Φ42×62	Φ40×72	Φ35×67
30μF	Φ42×90	Φ40×72	Φ45×95	Φ40×72
35μF	Φ45×90	Φ40×72	Φ45×95	Φ40×72
40μF	Φ50×100	Φ42×90	Φ50×110	Φ40×97
45μF	Φ50×100	Φ42×90	Φ50×110	Φ40×97
50μF	Φ50×100	Φ42×90	Φ50×120	Φ40×97
60μF	Φ50×115	Φ42×90	Φ50×120	Φ40×97

* Note:Other specifications,size and terminal outside table are negotiable.
