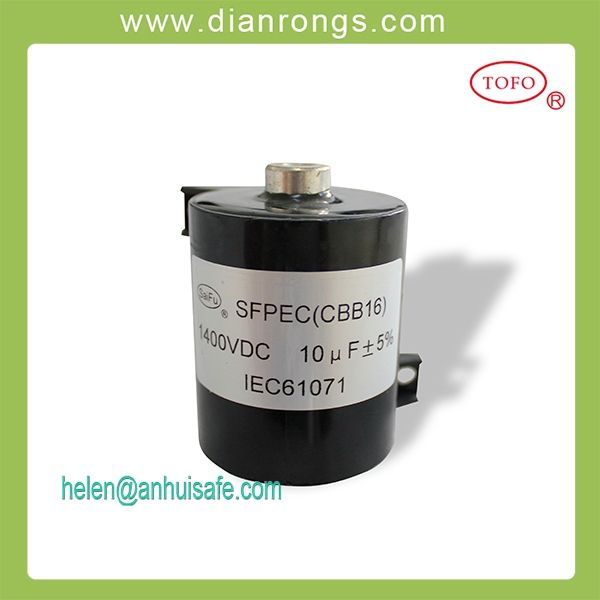

Welding Machining Cbb15 DC Link Capacitor
$10.00 /piece
Stock: 1000piece
Send Inquiry
Seller Support:
Trade Assurance — To protect your orders from payment to delivery
Product Details
Transaction Comments
:
Basic Info
  • Model NO.: CBB15
  • Application: General Purpose, AC / Motor, Power, Lighting, Air Conditioner, High Voltage, Automobile, Welding Machine
  • Capacitance: 0.47~100UF
  • Manufacturing Material: Polypropylene
  • Usage: EMI, Welding Machine, UPS, Electric Vehicles etc
  • Filter: Film Capacitor
  • Rated Voltage: 200~3000VAC
  • Capacitance Tolerance: ±5%
  • Class of Safety Protection: P0/P2
  • Shape: Squareness
  • Export Market: Global
  • Transport Package: Capacitors Standard Export Packing Carton
  • Origin: Tongling City Anhui Province China(Mainland)
  • Type: Polystyrene-film-capacitors
  • Packaging Type: Surface Mount
  • Structure: Fixed Capacitor
  • Electrolyte: Film Capacitor
  • Tuning: Polystyrene Capacitor
  • Model No.: Welding Inverter Capacitor(Cbb15/Cbb16)
  • Operating Temperature: 40/70/21 or 40/85/21
  • Class of Operation: Class B, Class C
  • MOQ: 1 PCS
  • Capacitor Case: Plastic
  • Trademark: TOFO / OEM
  • Specification: Welding Inverter Capacitor(CBB15/CBB16)
  • HS Code: 8532259000
Product Description
7×24 hours Sincerely Service for You
******Basic Info.******
***Quick Detail***
Basic specifications
Model  Welding Inverter Capacitor(CBB15/CBB16)
Type  Metallized Film Capacitor
Capacitance  0.47~100uF
Capacitance Tolerance  ±5%
Rated Voltage  200~3000VAC
Structure  Film Capacitor
Manufacturing Material  Polypropylene Film
Electrolyte  Electric Heating
Operating Temperature  40/70/21 or 40/85/21
Class of Safety Production  P2/P1
Dielectric Dissipation Factor  Tgδ≤0.002 (50Hz~100Hz)
Class of Operation  Class B,Class C
Insulation Resistance  3000s
Production Capacity  500,000pcs/Month
MOQ  1pcs
Size  Available on Request (Customized Capacitor)
***Product Description***
**Features:
1.Used in high-power high-frequency switching power supply of high-frequency pulse current absorption, filter
2.Low ESR, high ripple current and Large current shock handling capabilities
3.Low Ls, good high frequency characteristics
4. Self-healing property
5.Long lifetime
6.Plastic case, Filled with resin

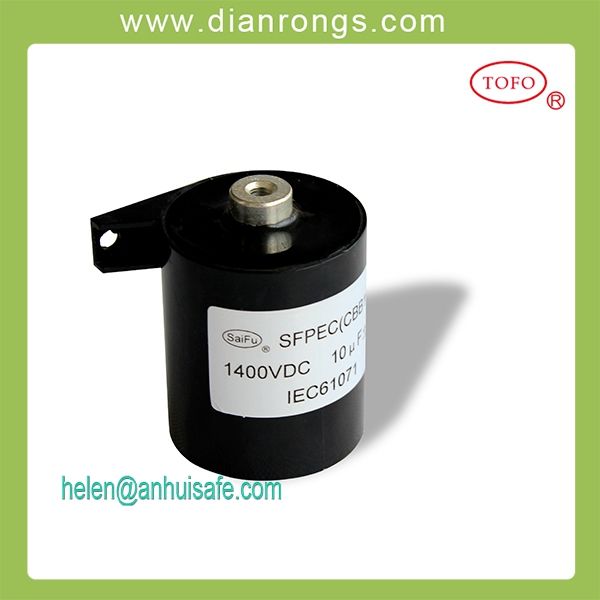

Welding Machining Cbb15 DC Link Capacitor

**Technical Specification:
Capacitance(uf) 3uF 10uF 20uF 40uF 50uF
Rated DC voltage Un (V) 500VAC 1400VDC 1400VDC 1250VDC 350VDC
Max rms current Imax (A) 45A 18A 35A 40A 35A
Capacitance Tolerance (J) +/-5% +/-5% +/-5% +/-5% +/-5%
Dv/dt (V/us) 800 20.0 20.0 20.0 20.0
Self Inductance Rs (nH) <10 <10 <10 <10 <10
Ut-t (V) 1800V,10S 1800V,10S 1800V,10S 1250V,10S 600V,10S
Ut-c (V) 3000VAC,60S 3000VAC,60S 3000VAC,
60S 		3000VAC,
60S 		3000VAC,
60S
Size (mm) dia50*60 dia50*60 dia50*60 74*46*49 dia50*60
tgδ(20C,10Khz) <10x10-4 <30x10-4 <50x10-4 <100x10-4 <55x10-4
* Note:
1,Other capacitance and dimension serials can be specified in compliance with customer's request.
2,Terminal forms can be made in conformity to the requirements of agreements with customers.
3,The Composite Capacitor can be also customized producing according to our customer's request.
***Applications***
1.Used in high frequency switching power supply filter, absorption, blocking, resonant circuit
2.Widely applied to EMI,Such as highfrequency welding inverter, UPS, electric vehicles, etc.

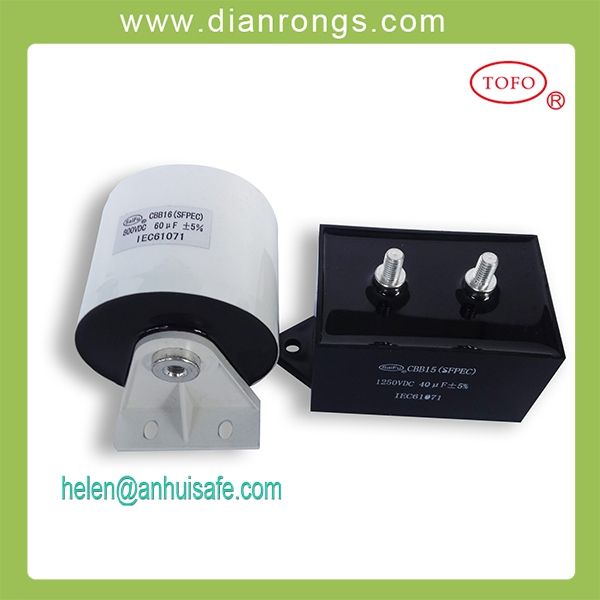

Welding Machining Cbb15 DC Link Capacitor

******Additional Info.******
Company Name: Tongling Tongfei Technology Co.,Ltd
Trademark: TOFO
Standard: GB/T 3667.1 or IEC 60252-1
Origin: China(Mainland)
Export Market: Global
***Appearance & Application***
Terminals: Tinned Brass Nut or Screws
Capacitor Case: Plastic
Installation Type: Through Hole
Application: CBB15/CBB16 Capacitor applied to High Frequency Switching Power,High Frequency Welding Inverter,UPS,Electric Vehicle,Welding Machine,etc.
***Packing&Delivery***
Packing: Export Standard Carton Packing for Capacitors
Delivery Detail: 7~15 days after payment
Port: Shanghai or Ningbo

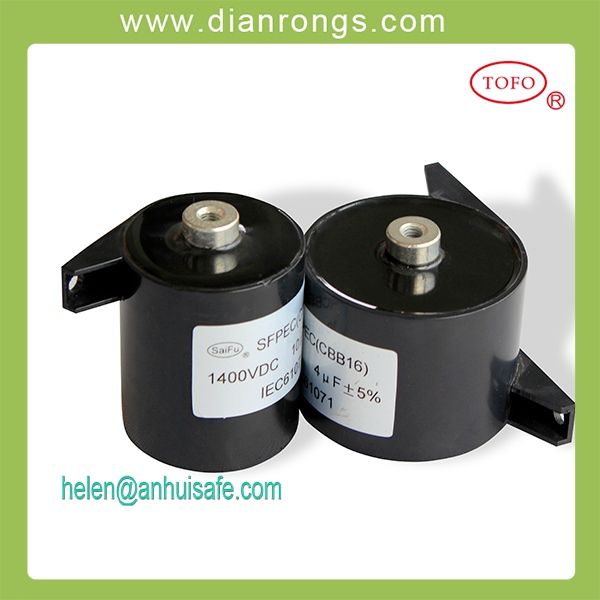

Welding Machining Cbb15 DC Link Capacitor
***Our advantages***
**LeadingTechnology:
Have a number of invention patents
**Stable Quality:
The company has the world's most advanced production equipment, and implement ISO9001 standard management.
**Reasonable Price:
Executive "Industrial products 10% Profit in the first"
**Cordial Service:
7*24 hours online, prompt reply and timely delivery
***Welcome to Contact Us***
Company Name: Tongling Tongfei Technology Co.,Ltd.
Add: No.695 North Taishan Road,Tongling,Anhui,China
Tel: 0086 0562 2821018
Fax: 0086 0562 2821558
Mobile Phone: 13305620368 (Helen Hu)

*Please Note:
All the price are negotiable upon specifications, if you have any inquiry, welcome to contact us.
*For more product information, please view our website:
dianrongs.com
