HASL LED Electronic Fr-4 PCB with UL No: E467377
$0.50 /piece
Stock: 1000piece
Send Inquiry
Seller Support:
Trade Assurance — To protect your orders from payment to delivery
Product Details
Transaction Comments
:
Basic Info
  • Model NO.: HYY-121
  • Flame Retardant Properties: V0
  • Base Material: Fr-4
  • Processing Technology: Electrolytic Foil
  • Mechanical Rigid: Rigid
  • Brand: Hyy
  • Solar Mask: Green
  • Size: Min
  • Transport Package: Vacuum Package
  • Origin: Made in China
  • Type: Rigid Circuit Board
  • Dielectric: FR-4
  • Insulation Materials: Metal Composite Materials
  • Application: Consumer Electronics
  • Material: Fr-4
  • Specail Hole: No
  • Layers: Single
  • Trademark: HYY
  • Specification: UL, SGS, ISO14001, ISO9001
  • HS Code: 85340090
Product Description
HASL LED Electronic FR-4 PCB with UL No: E467377

Product Description:

Layers 2-8 Layers
Material Types FR4   ,High-Tg,Halogen Free,Rogers,Isola,Taconic,Arlon,Teflon,
Max. Panel Dimension 646mm*1200mm
Outline Tolerance ±0.10mm
Board Thickness 0.2mm-6.0mm
Board Thickness Tolerance ±10%
Min. Track Width 0.075mm
Min. Track Space 0.075mm
External Cu Thickness 18um-210um(HOZ-6OZ)
Internal Cu Thickness 18um-210um(HOZ-6OZ)
Drilling Bit Size(CNC) 0.15mm-6.50mm
Finished Hole Dimension 0.1mm-6.0mm
Hole Tolerance ±0.05mm
Hole Position Tolerance ±0.05mm
Laser Drilling Hole Size 0.075mm
Aspect Ration 10:1
Solder Mask Green,Blue,White,Black,Red,Yellow,Purple,ect
Surface Finishing HASL,HASL(lead Free),Immersion Gold,Immersion Tin,Immersion Silver,OSP, Hard Gold(up to 100u")

 Product Pictures:

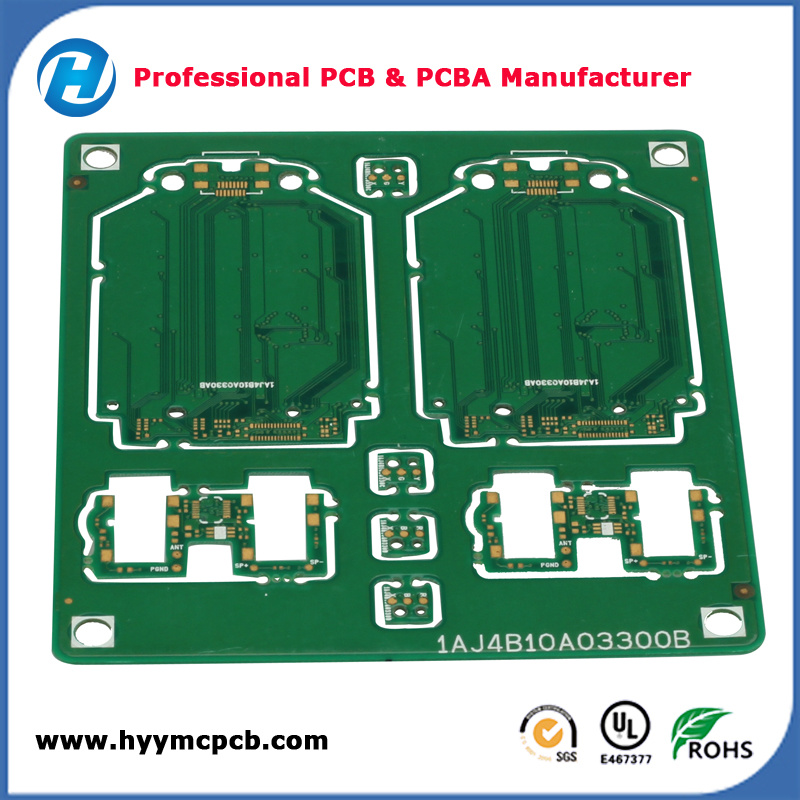

HASL LED Electronic Fr-4 PCB with UL No: E467377
HASL LED Electronic Fr-4 PCB with UL No: E467377
HASL LED Electronic Fr-4 PCB with UL No: E467377




HASL LED Electronic Fr-4 PCB with UL No: E467377
HASL LED Electronic Fr-4 PCB with UL No: E467377
HASL LED Electronic Fr-4 PCB with UL No: E467377
