2.5UF 450V Ceiling Fan Wiring Diagram Capacitor Cbb61

$1.10 /piece


Stock:	1000piece

Send Inquiry

Seller Support:

Trade Assurance — To protect your orders from payment to delivery

Product Details

Transaction Comments

Basic Info

Model NO.: CBB61
Application: General Purpose, AC / Motor, Power, Lighting, Air Conditioner, High Voltage, Fan, Automobile, Water Pump
Capacitance: 1~35UF
Manufacturing Material: Plastic Case and Capacitor Mpp Film
Usage: Fan, AC Motor, Air Conditioner
Filter: Film Capacitor
Rated Voltage: 200~500VAC
Capacitance Tolerance: ±5%
Class of Safety Protection: P0/P2
Shape: Squareness
Lead out: Pin or Wire
Transport Package: Capacitors Standard Export Packing Carton
Origin: Tongling City Anhui Province China(Mainland)

Type: Polypropylene Capacitor
Packaging Type: Surface Mount
Structure: Fixed Capacitor
Electrolyte: Film Capacitor
Tuning: Polystyrene Capacitor
Model No.: Cbb61 Capacitor
Operating Temperature: 40/70/21 or 40/85/21
Class of Operation: Class B, Class C
MOQ: 1 PCS
Capacitor Case: Plastic
Trademark: TOFO / OEM
Specification: CBB61 Fan Capacitor
HS Code: 853225900

Product Description

7×24 hours Sincerely Service for You

Basic Info.

Basic specifications
Model No.	CBB61 Capacitor
Type	2.5uf 450v ceiling fan wiring diagram capacitor cbb61
Capacitance	1~35uF
Structure	Single Film Capacitor
Manufacturing Material	Polypropylene
Electrolyte	Polypropylene Film
Rated Voltage	200~500VAC
Operating Temperature	40/70/21 or 40/85/21
Capacitance Tolerance	±5%
Class of Operation	Class B,Class C
Class of Safety Protection	P0/P2
Package Type	Export Carton for CBB61 Fan Capacitor
Production Capacity	500,000pcs/Month
MOQ	1 pcs
Size	Available on Request (Customized Fan Capacitor)

Product Description
450VAC 5UF Cbb61 Fan Capacitor Polypropylene Capacitor takes heavy-edge metallized Al/Zn film as electrodes and dielectric.It is impregnated with flame-retardant epoxy resin and canned in cubic ABS or PBT plastic case with characteristics of small size,reliable performance and long endurance.

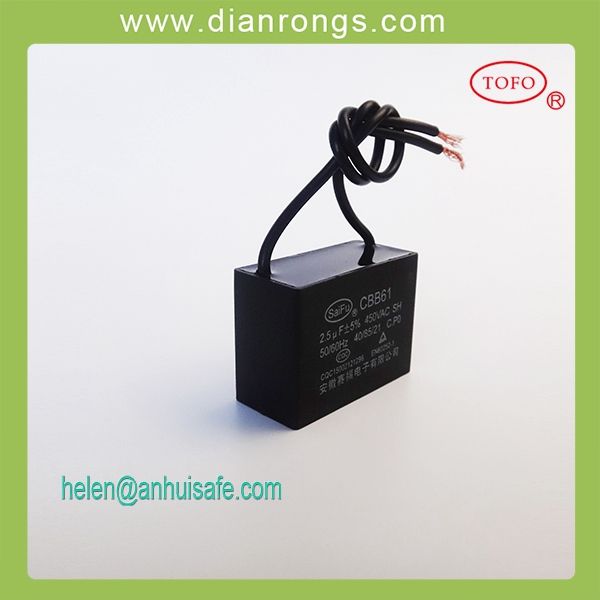

2.5UF 450V Ceiling Fan Wiring Diagram Capacitor Cbb61

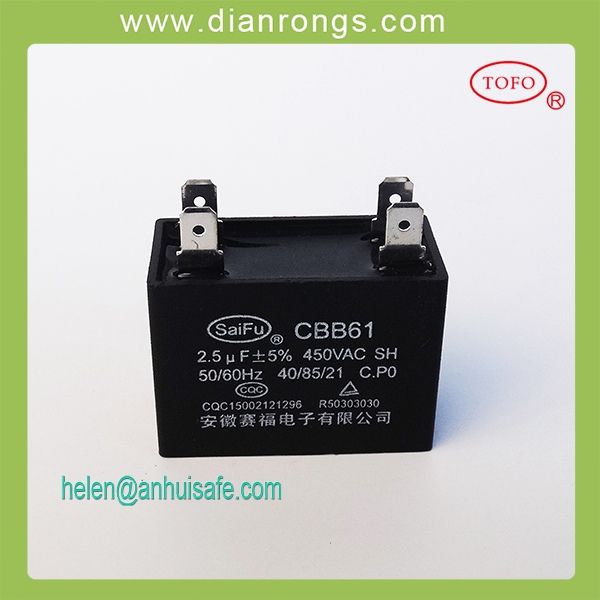

2.5UF 450V Ceiling Fan Wiring Diagram Capacitor Cbb61

Technical Specifications:

Reference standards	GB/T 3667.1 ( IEC60252-1 )
Climatic category	40/70/21,40/85/21
Class of operation	Class B(10000h) Class C(3000h)
Class of safety protection	P0/P2
Voltage range	200~500VAC
Capacitance range	1~35μF
Capacitance tolerance	±5%
Dissipation factor	20×10-4(100Hz,20ºC)
Test voltage terminal to terminal UTT	2 Un for 2 seconds
Test voltage terminal to case UTC	(2Un+1000)VAC or 2000VAC-50Hz for 60 seconds
Insulation Resistance	≥3000MΩ. μF(100Hz,20ºC,1min)

Application:
The CBB61 fan capacitor broadly applied to starting and running of AC single-phase motors at 50Hz(60Hz) frequency for air conditioners' fans,electric fans and exhaust fans etc.at comparatively low rated power.

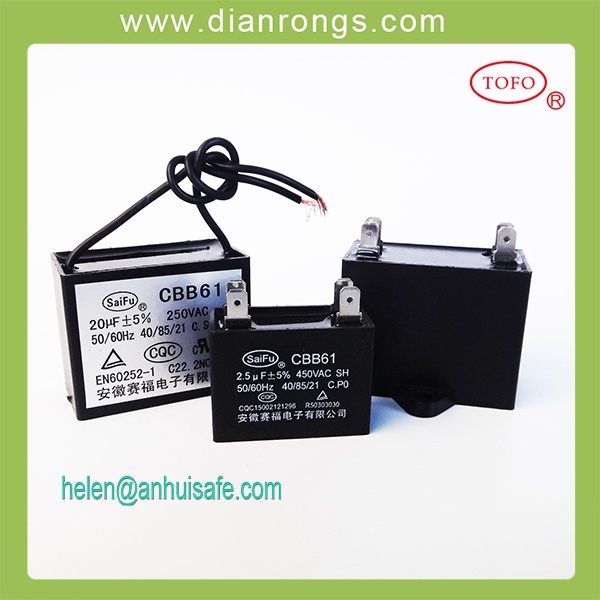

2.5UF 450V Ceiling Fan Wiring Diagram Capacitor Cbb61

Additional Info.
Company Name: Tongling Tongfei Technology Co.,Ltd
Trademark: TOFO
Standard: GB/T 3667.1 or IEC 60252-1
Origin: China(Mainland)
Export Market: Global
Appearance & Application
Shape: Squareness
Capacitor Case: Plastic
Lead out: Pin or Wire
Installation Type: Through Hole
Application: CBB61 capacitor applied to General purpose,AC motor,Power,Lighting,Air Conditioner,High voltage,Fan,Automobile.
Packing&Delivery
Packing: Export Stand Carton Packing for Capacitors
Delivery Detail: 7~15 days after payment
Port: Shanghai or Ningbo

2.5UF 450V Ceiling Fan Wiring Diagram Capacitor Cbb61

Our Advantages
LeadingTechnology:
Have a number of invention patents
Stable Quality:
The company has the world's most advanced production equipment, and implement ISO9001 standard management.
Reasonable Price:
Executive "Industrial products 10% Profit in the first"
Cordial Service:
7*24 hours online, prompt reply and timely delivery

Products Dimensions(mm):

Specifications	450VAC	250VAC
1μF	37×13×23	37×13×23
1.2μF	37×13×23	37×13×23
1.5μF	37×14×25	37×13×23
2μF	37×16×28	37×13×23
2.5μF	37×18×28	37×14×25
3μF	47×18×29	37×14×25
3.5μF	47×18×34	37×16×28
4μF	47×18×34	37×16×28
4.5μF	47×22×34	37×16×28
5μF	47×22×34	37×18×28
5.5μF	47×22×34	37×18×28
6μF	47×22×34	47×18×29
6.5μF	48×26×38	47×18×29
7μF	48×26×38	47×18×29
8μF	48×26×38	47×18×34
10μF	58×26×44	47×22×34
12μF	58×26×44	47×22×34
15μF	58×26×44	47×22×34
16μF	58×26×44	47×26×38
20μF	58×35×49	47×26×38
25μF	58×35×49	47×26×38
30μF	Negotiable	58×26×44
35μF	Negotiable	58×26×44

* Note:Other specifications,size and terminal outside table are negotiable.

Welcome to Contact Us
Company Name: Tongling Tongfei Technology Co.,Ltd.
Add: No.695 North Taishan Road,Tongling,Anhui,China
Tel: 0086 0562 2821018
Fax: 0086 0562 2821558
Mobile Phone: (Helen Hu)

*Please note all the price are negotiable upon specifications, if you have any inquiry, welcome to contact us.

*For more product information, please view our website:
dianrongs.com
