Cbb65 Air Conditioner Motor Capacitor for Air Conditioner

$3.95 /piece


Stock:	1000piece

Send Inquiry

Seller Support:

Trade Assurance — To protect your orders from payment to delivery

Product Details

Transaction Comments

Basic Info

Model NO.: CBB65
Application: General Purpose, AC / Motor, Power, Lighting, Air Conditioner, High Voltage, Fan, Automobile, Water Pump
Capacitance: 1~35UF
Manufacturing Material: Plastic Case and Capacitor Mpp Film
Usage: Fan, AC Motor, Air Conditioner
Filter: Film Capacitor
Rated Voltage: 200~500VAC
Capacitance Tolerance: ±5%
Class of Safety Protection: P2/P1
Shape: Cylinder or Ellipse
Size: Available on Request (Customized Capacitor)
Transport Package: Capacitors Standard Export Packing Carton
Origin: Tongling City Anhui Province China(Mainland)

Type: Polypropylene Capacitor
Packaging Type: Surface Mount
Structure: Fixed Capacitor
Electrolyte: Film Capacitor
Tuning: Polystyrene Capacitor
Model No.: Cbb65 Capacitor
Operating Temperature: 40/70/21 or 40/85/21
Class of Operation: Class B, Class C
MOQ: 1 PCS
Capacitor Case: Aluminum Case
Trademark: TOFO / OEM
Specification: CBB65 AC motor Capacitor
HS Code: 8532259000

Product Description

7×24 hours Sincerely Service for You
*****Basic Info.*****
***Quick Detail***

Basic specifications
Model No.	CBB65 Capacitor
Type	Cbb65 30UF Motor Runing Capacitor made from china
Capacitance	2~120uF
Capacitance Tolerance	±5%
Rated Voltage	200~500VAC
Structure	Single Capacitor
Manufacturing Material	Polypropylene
Electrolyte	Polypropylene Film
Operating Temperature	40/70/21 or 40/85/21
Class of Safety Protection	P1/P2
Class of Operation	Class B,Class C
Package Type	Export Carton for CBB65 Capacitor
Production Capacity	500,000pcs/Month
MOQ	1pcs
Size	Available on Request (Customized Capacitor)

*The Composite Capacitor can be also customized producing according to our customer's request.
***Product Description***
The capacitor takes heavy-edge metallized Al/Zn film as electrodes and dielectric.The elements of CBB65 capacitor are tight winded by high-velocity winders and canned in aluminum cases.The second generation of mechanical anti-explosion design is selected as blast-proof secure measure for our capacitors.And the reliability is more affirmatively enhanced.

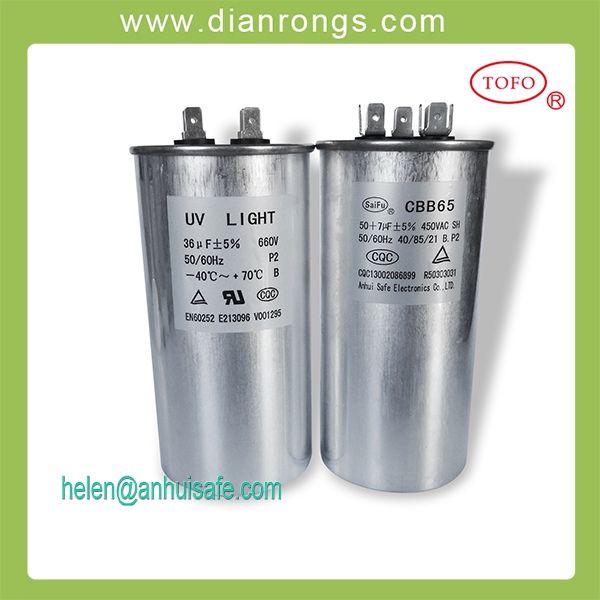

Cbb65 Air Conditioner Motor Capacitor for Air Conditioner

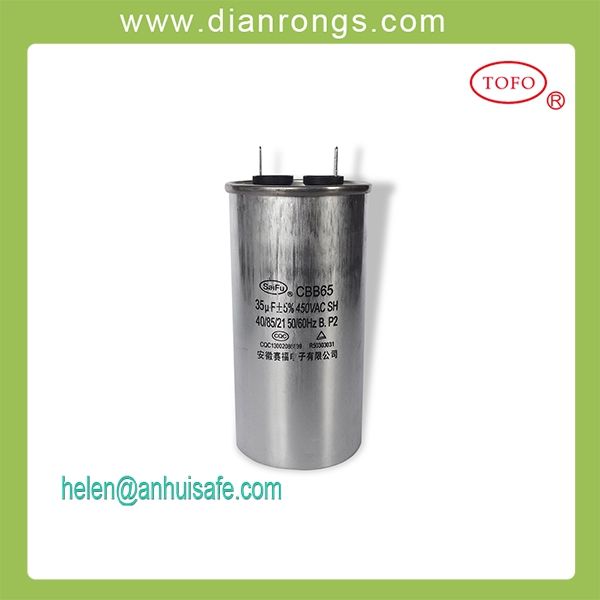

Cbb65 Air Conditioner Motor Capacitor for Air Conditioner

***Technical Specifications***

Reference standards	GB/T3667.1(IEC60252-1)
Climatic category	40/70/21,40/85/21
Class of operation	Class B(10000h) Class C(3000h)
Class of safety protection	P2/P1
Voltage range	200~500VAC
Capacitance range	2~120μF
Capacitance tolerance	±5%
Dissipation factor	20×10-4(100Hz,20ºC)
Test voltage terminal to terminal UTT	2 Un for 2 seconds
Test voltage terminal to case UTC	(2Un+1000)VAC or 2000VAC-50Hz for 60 seconds
Insulation Resistance	≥3000MΩ. μF(100Hz,20ºC,1min)

***Application***
CBB65 capacitor broadly applied to starting and running of AC single-phase motors at 50Hz(60Hz) frequency for family air conditioners and high power illuminators for the sake of power factor compensation.

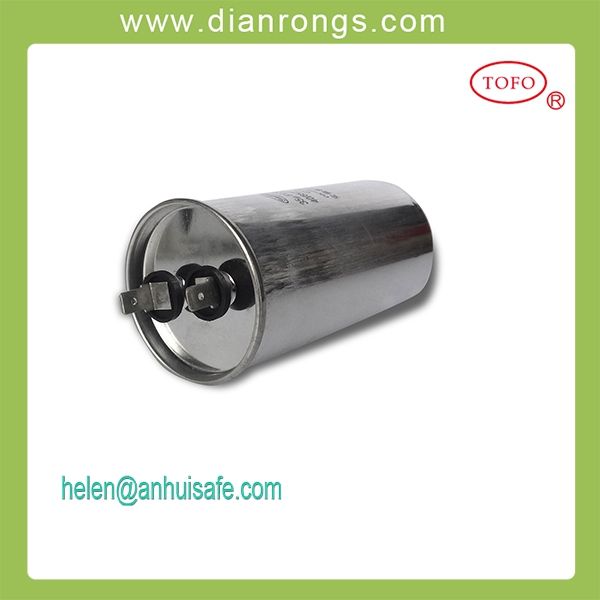

Cbb65 Air Conditioner Motor Capacitor for Air Conditioner

*****Additional Info.*****
Company Name: Tongling Tongfei Technology Co.,Ltd
Trademark: TOFO
Standard: GB/T 3667.1 or IEC 60252-1
Origin: China(Mainland)
Export Market: Global
***Appearance & Application***
Application: CBB65 capacitor applied to General purpose,AC motor,Power,Lighting,Air Conditioner,High voltage,Automobile,Fan,etc.
Installation Type: Through Hole
Shape: Cylinder or Ellipse
Capacitor Case: Aluminum Case
***Packing&Delivery***
Packing: Export Standard Carton Packing for Capacitors
Delivery Detail: 7~15 days after payment
Port: Shanghai or Ningbo

Cbb65 Air Conditioner Motor Capacitor for Air Conditioner

***Dimensions(mm)***

No	Specifications	Terminal	Size
1	CBB65-450VAC 2μF ~9μF	2×4 or 2×2 pin	Φ40×60
2	CBB65-450VAC-10μF	2×4 or 2×2 pin	Φ40×60
3	CBB65-450VAC-12.5μF	2×4 or 2×2 pin	Φ40×70
4	CBB65-450VAC-15μF	2×4 or 2×2 pin	Φ45×70
5	CBB65-450VAC-20μF	2×4 or 2×2 pin	Φ45×75
6	CBB65-450VAC-25μF	2×4 or 2×2 pin	Φ50×85
7	CBB65-450VAC-30μF	2×4 or 2×2 pin	Φ50×100
8	CBB65-450VAC-35μF	2×4 or 2×2 pin	Φ50×100
9	CBB65-450VAC-40μF	2×4 or 2×2 pin	Φ50×100
10	CBB65-450VAC-45μF	2×4 or 2×2 pin	Φ50×100
11	CBB65-450VAC-50μF	2×4 or 2×2 pin	Φ50×125
12	CBB65-450VAC-55μF	2×4 or 2×2 pin	Φ50×125
13	CBB65-450VAC-60μF	2×4 or 2×2 pin	Φ50×125
14	CBB65-450VAC-65μF	2×4 or 2×2 pin	Φ55×125
15	CBB65-450VAC-70μF	2×4 or 2×2 pin	Φ55×125
16	CBB65-450VAC-80μF	2×4 or 2×2 pin	Φ60×125
17	CBB65-450VAC-90μF	2×4 or 2×2 pin	Φ60×125
18	CBB65-450VAC-100μF	2×4 or 2×2 pin	Φ63.5×125

* Note:
1.Other capacitance and dimension serials can be specified in compliance with customer's request.
2.Terminal forms can be made in conformity to the requirements of agreements with customers.
***Our advantages***
*LeadingTechnology:
Have a number of invention patents
*Stable Quality:
The company has the world's most advanced production equipment, and implement ISO9001 standard management.
*Reasonable Price:
Executive "Industrial products 10% Profit in the first"
*Cordial Service:
7*24 hours online, prompt reply and timely delivery
