Glazed Metal Roof Tile Making Steel Profile Roll Forming Machine
$8500.00 /piece
Stock: 1000piece
Send Inquiry
Seller Support:
Trade Assurance — To protect your orders from payment to delivery
Product Details
Transaction Comments
:
Basic Info
  • Model NO.: AF-G1025
  • Certification: CE
  • Customized: Customized
  • Transmission Method: Machinery
  • Forging Forming Method: Mold Forging
  • Machine Color: as Require
  • Control System: PLC
  • Driven Type: Chain
  • Life Long: 10year
  • Transport Package: Normal
  • Origin: Shanghai
  • Tile Type: Colored Steel
  • Condition: New
  • Usage: Roof, Wall
  • Name: Metal Roof Tile Roll Forming Machinery
  • Machine Weight: 3tons
  • Machine Size: 7.0m*1.4m*1.4m
  • Cutting Type: Hydraulic
  • Size of Container: 40gp
  • Trademark: Aofa
  • Specification: SGS
  • HS Code: 84552210
Product Description
Glazed Metal Roof Tile Making Steel Profile Roll Forming Machine
Other machine we manufacture
Cold roll forming mahcine, color steel roll forming machine, roof and wall panel machine, decking floor roll forming machine, floor decing forming mahcine, stud and track roll forming machine, Z and C purlin machine, highway guardrail roll forming machine, cable tray machine, and so on.

Machine components:
Manual Uncoiler-------------------------------1unit
Roll forming device----------------------------1unit
Cutting device-----------------------------------1unit
Pressing device--------------------------------1unit
Control system---------------------------------1unit
Hydraulic station-------------------------------1unit
Output table-------------------------------------1unit

Technical descriptions

No

Item

Parameter


1

Suitable Material

Type

Color coated /galvanized steel


Thickness(mm)

0.3-0.8

or according to customer' requirements


Yield stress(Mpa)

235-345

or according to customer' requirements


2

Product Specifications

Cover Width (mm)

950 or according to customer' requirements


Length

Any length


3

Power Requirement

Type

380V/3Ph/50Hz or

according to customer' requirements


Main motor power(KW)

5.5kw


Hydraulic power

4kw


4

Step distance

100-400(mm)

Adjustable according to customer' requirements


5

Working Speed(m/min)

8-12  (Excluding cutting time)


6

Decoiler

 Drive type

Manual


Max. capacity(T)

5T


Suitable coil ID(mm)

508-610


Suitable coil OD(mm)

1200


Max Coil width(mm)

1250


7

Forming Stand

13


8

Forming Shaft Diameter(mm)

80mm


 9

Shaft material



high grade No.45 steel after treatment




10

Roller Material

45# steel with hard chrome plated


11

Cutter material

Cr12 with quenching treatment HRC55-60°C


12

Cutting Type

Automatical hydraulic cutting


13

Control System

PLC Frequency Control System with touch screen


14
 		 Output table
It is simple and used to load finished product

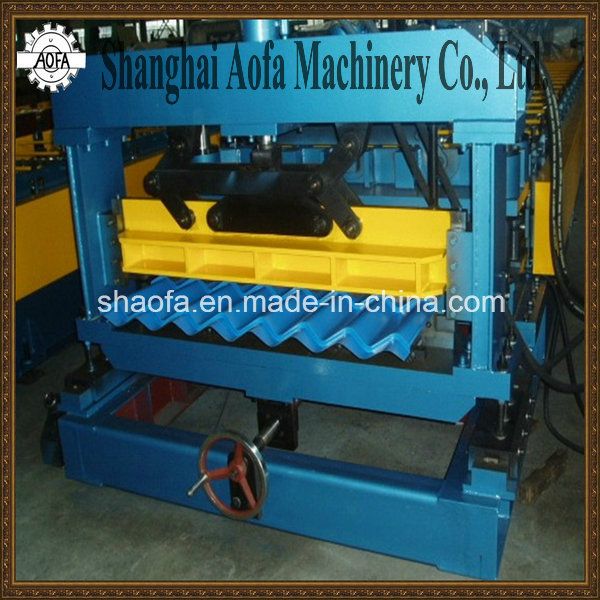

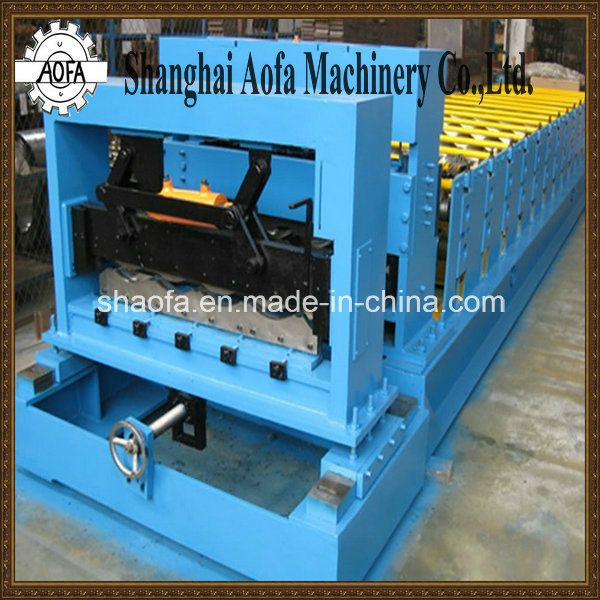

MACHINE PHOTOS
Glazed Metal Roof Tile Making Steel Profile Roll Forming MachineGlazed Metal Roof Tile Making Steel Profile Roll Forming MachineGlazed Metal Roof Tile Making Steel Profile Roll Forming Machine

Terms
Payment type: 35% T/T prepaid and balance should be paid before loading
Delivery time:
Guarantee period: 18monthes free service/ pay service all the machine life
Installation and training:
If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
Without visiting, we will send you user manual and video to teach you to install and operate.
If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.

Packing and loading photos
Color Steel Corrugated Roof Sheet Roll Forming Machine (AF-R836)




Contact:
Abby Song
MOB: +86-18701854523
TEL: +86-21-67298619
Color Steel Corrugated Roof Sheet Roll Forming Machine (AF-R836)
