Stone Coated Roof Tile Making Machine
$12500.00 /piece
Product Details
Transaction Comments
| : | Basic Info
Product Description
Stone coated roof tile making machine
Stone coated sheet is formed by 0.4mm Al-Zn plating panel and color stones. It is modern, environmental and nice appearance. We developed this stone coated production line based on long time running and improvement. It is high-performance, stable, energy-efficient and easy operation. It is including five main parts: 1 Auto bottom glue spraying section 2Auto stone coated section 3 The first time drying section 4 Auto face glue spraying section 5 The second time drying section Introduction:

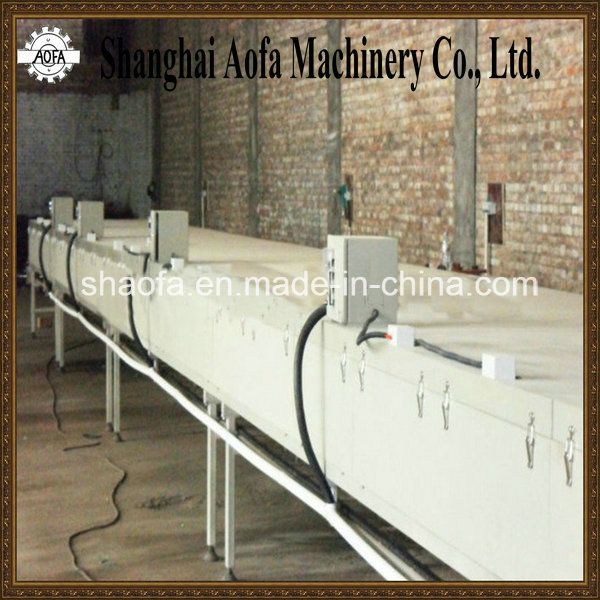

1. Auto bottom glue spraying sectionAppearance size: 4000*1000*2000 Unit: Mm Driving section: 3KW Excitation motor or frequency speed regulation (AS per Customers'requirements ) Automatic pressure spray tank: 1set capability: 200kg Range: 0.6~1Mpa Automatic glue machine motor: Servo motor, Power: 750W, PLC Automatic spray gun: 4 set(spare parts) Dust collecting fan: 1set power: 200W Damp proof lamp: 1PC power: 100W Conveying device: Chain reciprocating Air compressor: 1set power: 7.5kw Dust control of axial flow fan: 1set power: 200W Agitator: 1set power: 1.5kw 2. Auto stone coated section Appearance size: 3500× 1000× 1500 Unit: Mm Framework: Steel welding Conveying device: Chain reciprocating Automatic sand hopper: 1set capability: 200kg Bucket lift: 1 set Manual sandblast gun: 4sets 3. The first time drying section Appearance size: 25000× 1000× 1200 Unit: Mm Framework: Steel welding Frame type thermal insulation wall: 1.2mm cold steel with Rock wool Automatic temperature controller: 4set Range: 0° ~160° Infrared heating tube: 30PCS Power: 30kw Conveying device: Chain reciprocating Air cooling device: 1 set Power: 200W He first time drying section 4. Auto face glue spraying section Appearance size: 3000× 1000× 2000 Unit: Mm Framework: Steel welding Damp proof lamp: 1PC Power: 100W Automatic pressure spray tank: 1set capability: 200kg Range: 0.6~1Mpa Conveying device: Chain reciprocating Automatic spray gun: 4 set(spare parts) Manual patch glue gun: 4 set Dust control of axial flow fan: 1set power: 200W Automatic glue machine motor: Servo motor, Power: 750W 5. The second time drying section Appearance size: 30000× 1000× 1200 Unit: Mm Framework: Steel welding Frame type thermal insulation wall: 1.2mm cold steel with Rock wool Automatic temperature controller: 4set Range: 0° ~160° Infrared heating tube: 30PCS Power: 30kw Conveying device: Chain reciprocating Air cooling device: 1 set Power: 200W This line is 65.5 m long. So we need the warehouse length is about 75mm and one of 2*3 air Compressor room. About worker: Panel loading one Bottom spraying one Stone coating one Fill stone one Face glue one Bottom glue mixing one Finish goods receiving one Serive

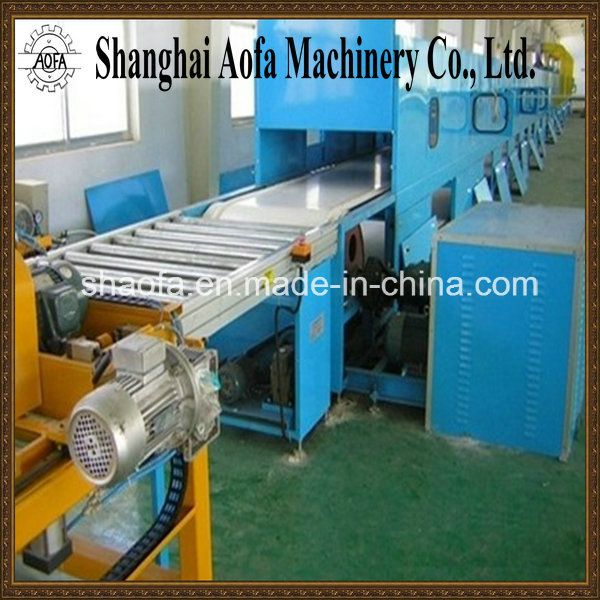

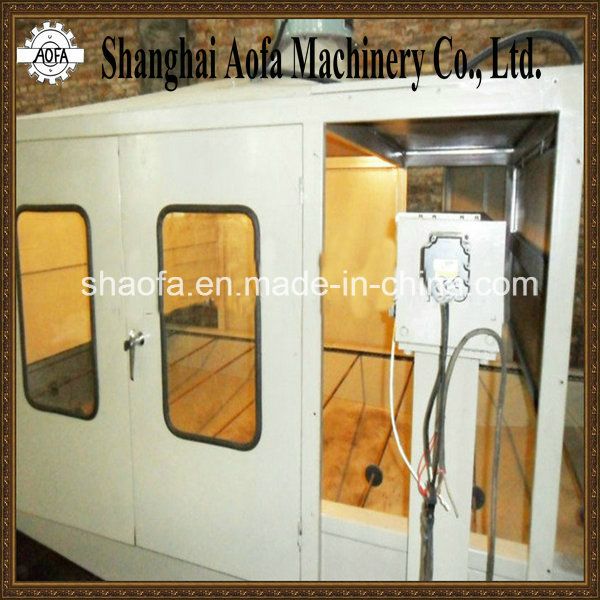

machine photos     Packing and loading photos Contact: Abby Song MOB: +86-18701854523 TEL: +86-21-67298619 |
