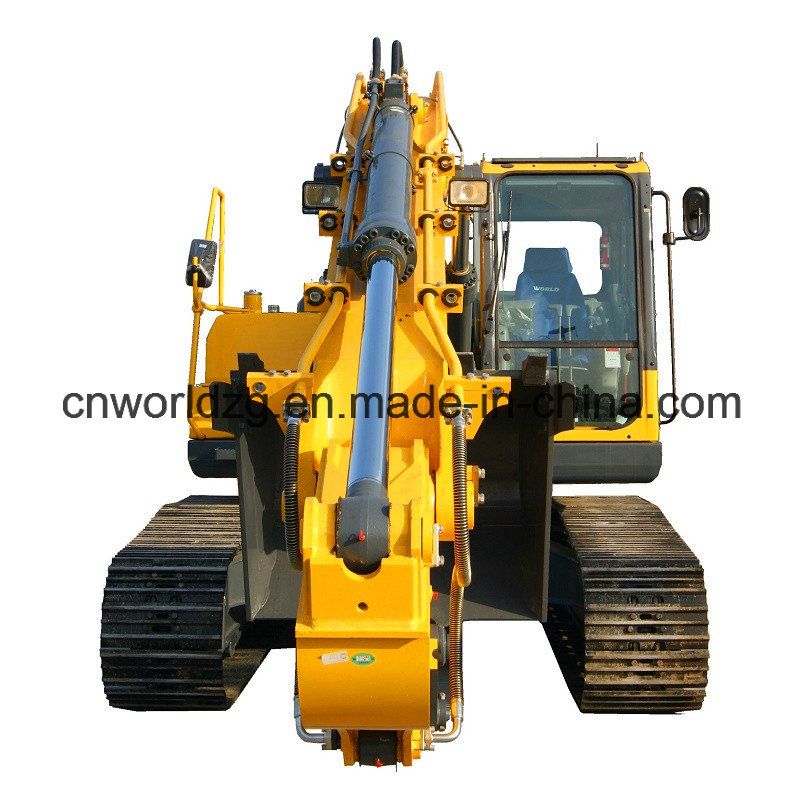

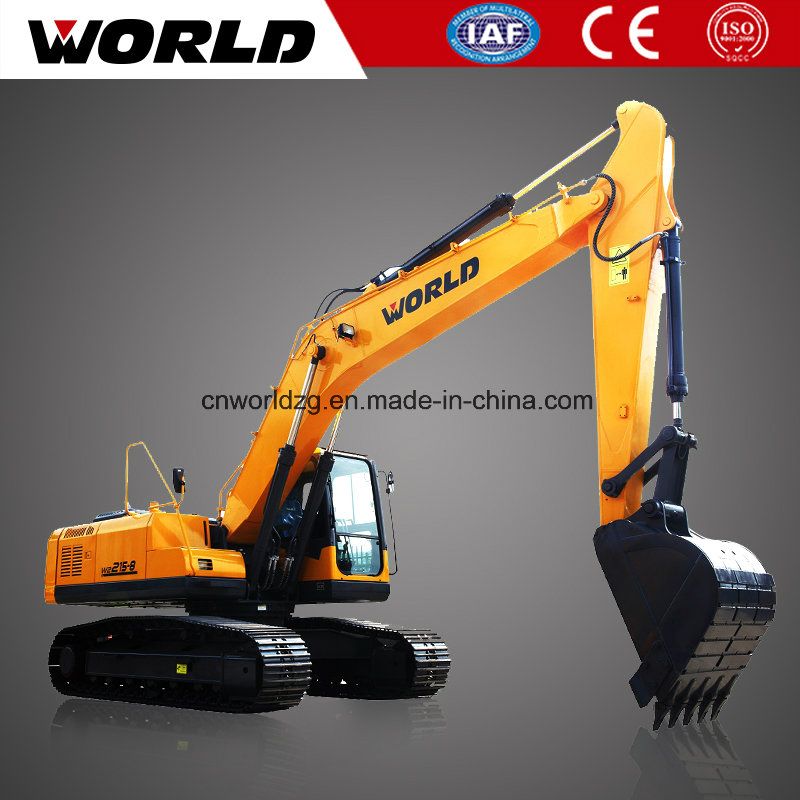

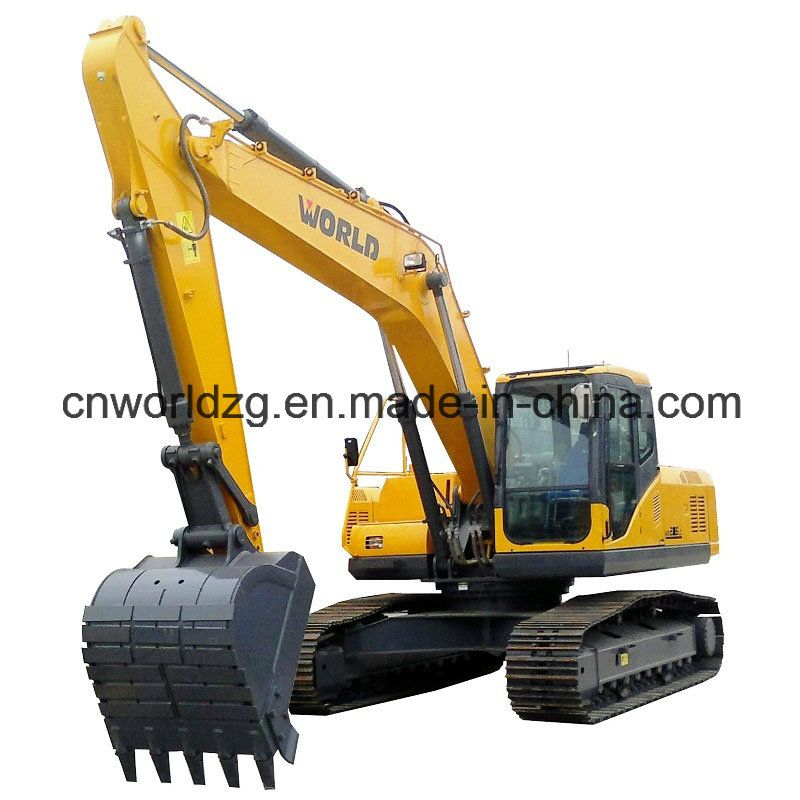

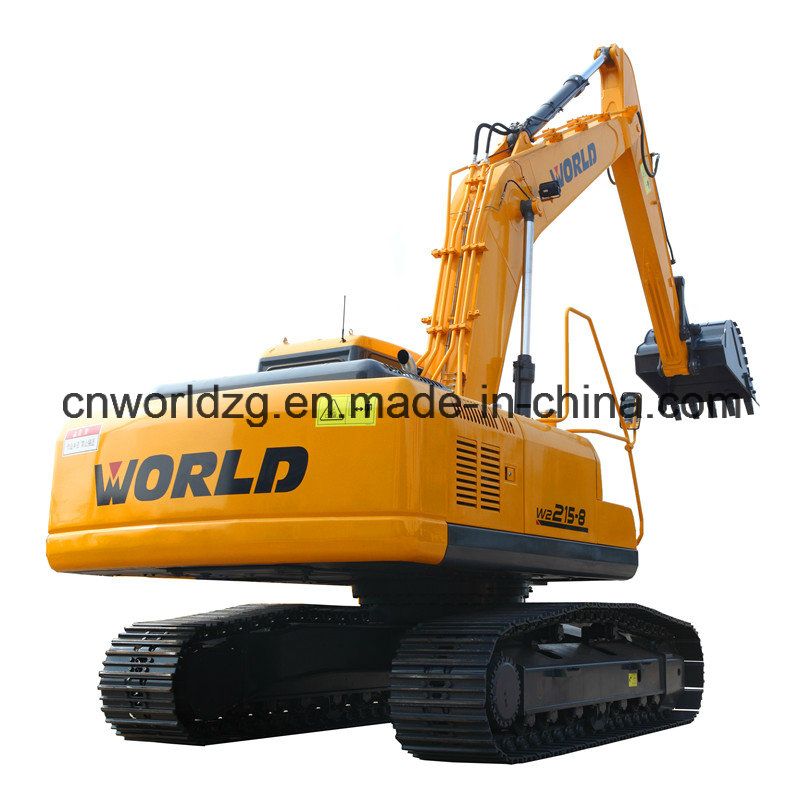

Crawler Hydraulic Excavator Compare to 320 Excavator

$70000.00 /piece


Stock:	1000piece

Send Inquiry

Seller Support:

Trade Assurance — To protect your orders from payment to delivery

Product Details

Transaction Comments

Basic Info

Model NO.: W2215-8
Usage: GM Excavator
Transmission: Hydraulic Transmission
Bucket Capacity: 0.5~1.0m³
Certification: CE, ISO9001: 2000
CE 215 Hydraulic Excavator Compare to 3: 215 Excavator
Track Width: 600mm
Working Pressure: 34.3MPa
Max. Digging Depth: 6486mm
Min Swing Radious: 2708mm
Trademark: world
Specification: CE, ISO
HS Code: 84295212

Type: Crawler Excavator
Bucket: Backhoe
Drive Type: Internal Combustion Drive
Size: Medium-Sized
Condition: New
Operation Weight: 21400kg
Hydraulic Pump: Kawasaki
Max. Digging Height: 7196mm
Max. Digging Radious: 9813mm
Engine Brand: Isuzu, 113kw
Transport Package: 215 Hydraulic Excavator by Roro Vessel
Origin: China

Product Description

Crawler Hydraulic Excavator compare to 320 excavator

CE Approved Hydraulic Excavator, Excavators, Construction machinery, construction equipment

Features:

1)The excavator uses riginal ISUZU engine, low noise, low fuel consumption and low emission.
2)The excavavtor adopted world class Kawasaki hydraulic system, high efficiency and reliability.
3)Safe and comfortable driving cabin with air conditioner.
4)All structural parts are produced by us for better quality control.
5)ESS power control system is used with multi-power modes to adapt to different operations.
6)Superior excavation performance, design of enhanced structural parts, uses high tensile steel plate.

Details:

1) ISUZU engine, 113.2kw/2200rpm, 6 cylinders, 4 strokes, water cooling, turbocharged, original Japan. Strong power with lower noise and lower fuel consumption. Global warranty and it is easy to get maintenance parts all the world.
Crawler Hydraulic Excavator Compare to 320 Excavator

2) Famous brand hydraulic system, high performance with global warranty.
Crawler Hydraulic Excavator Compare to 320 Excavator

3) Spacious cabin with air seat, radio and air condtioner. ECU and monitor control system and you can set the working mode and check the machine working situations. Maintenance information can be also checked.
Crawler Hydraulic Excavator Compare to 320 Excavator

Specifications:

Working Specifications
Operating weight	21400kg
Bucket capacity	0.9CBM
Max. breakout force
(1)Bucket digging force	120KN
(2)Arm digging force	94.5kn
Max. digging height	10095mm
Max. dumping height	7196mm
Max. digging depth	6486mm
Max. vertical wall digging depth	5903mm
Max. digging reach	9813mm
Min. front swing radius	2853mm
Max. pulling force	220KN
Max. travel speed(double modes)	5.2km/h
Max. grade ability	70%

Overall dimensions
Length(with bucket on ground)	9400mm
Width(600mm crawler shoes )	2800mm
Bucket width	1150mm
Ground length (in transportation)	9400mm
Height(To the top of the boom)	2937mm
Height(To the top of the cab)	3010mm
Counter weight ground clearance	1094mm
Track gauge	2200mm
Tail swing radius	2708mm
Min. ground clearance	460mm
Rotating platform width	2712mm
Counter weight height	2123mm
Crawler teeth thickness	26mm
Reach from swing center to tail	2708mm
Crawler ground length	3370mm
Standard arm length	2925mm
overall length of crawler	4155mm
