Earth Moving Machinery, 3ton Front Shovel Loader (W136)

$25000.00 /piece


Stock:	1000piece

Send Inquiry

Seller Support:

Trade Assurance — To protect your orders from payment to delivery

Product Details

Transaction Comments

Basic Info

Model NO.: W136
Condition: New
Transmission: Hydraulic - Mechanical
Walking Mode: Wheeled
Shovel Loader: Wheel Loader
Shovel Loader Operation Weight: 10ton
Gearbox: Zl30 Planet Type
Tyre Size: 17.5-25
Transport Package: in Container
Origin: China

Certification: TUV, SGS, ISO, CE
Rated Load: 1-3t
Load and Unload Mode: Front Discharge
Type: Medium-sized Loader
Shovel Loader Engine Power: 130HP
Engine Brand: Cummins or Deutz
Gear Shifts: F2/R1
Trademark: WORLD
Specification: CE
HS Code: 84295100

Product Description

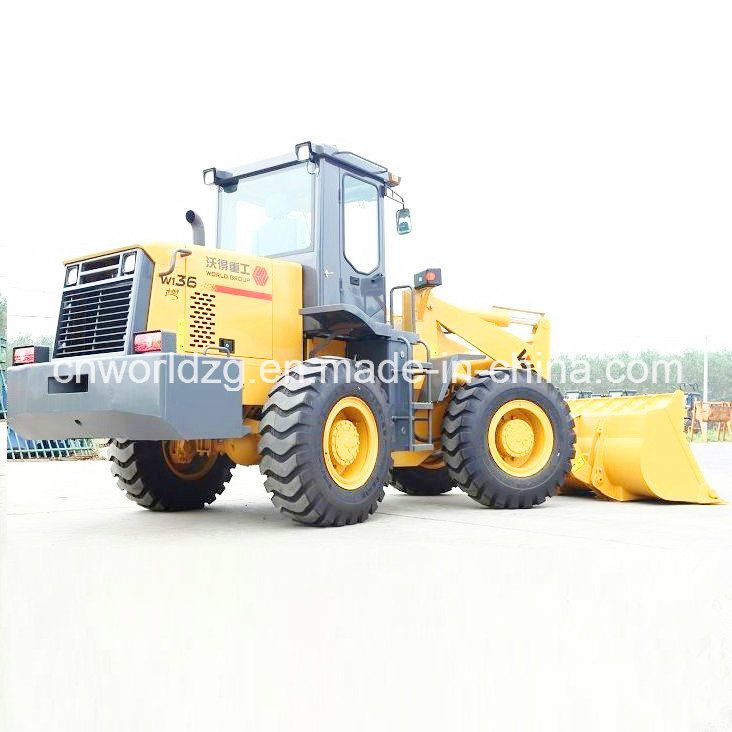

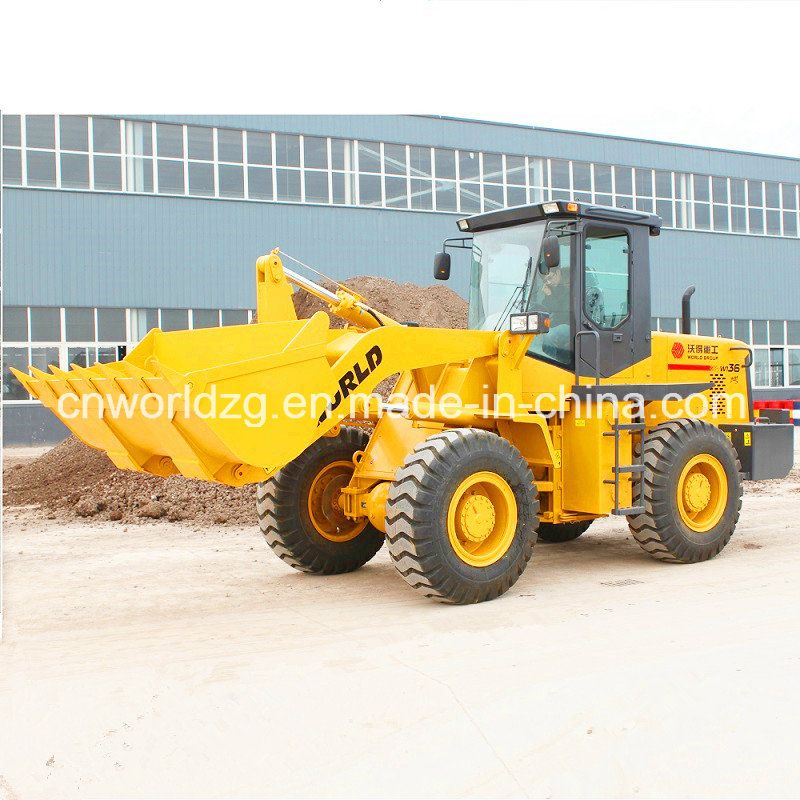

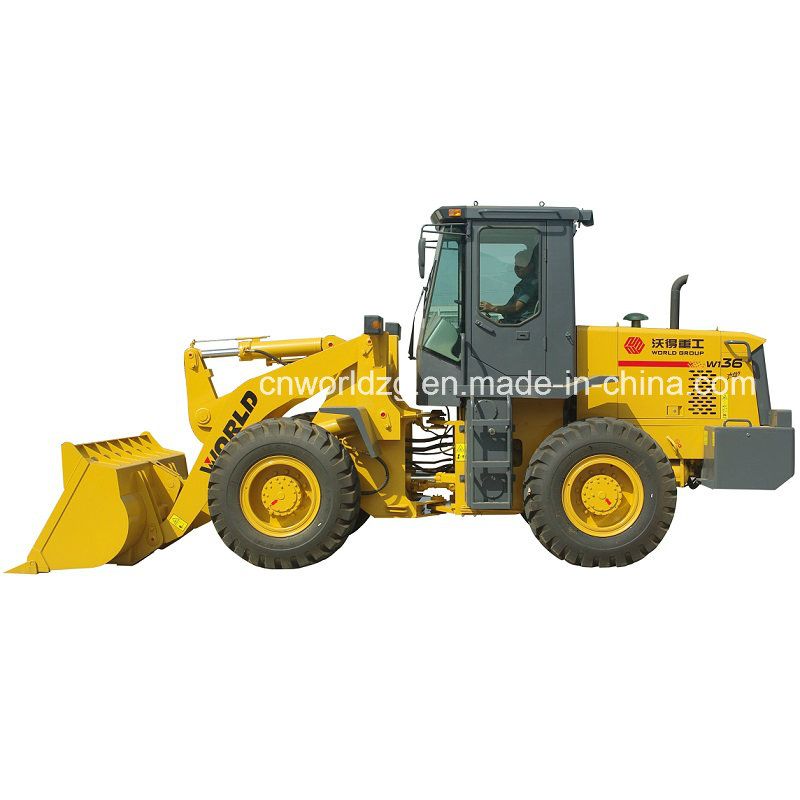

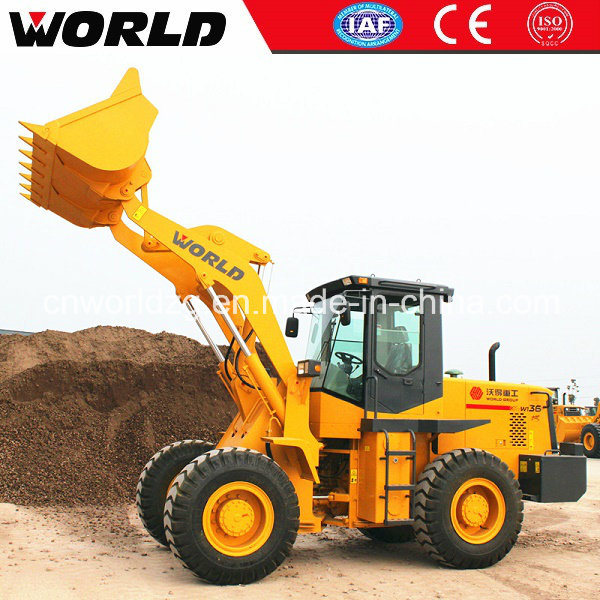

Shovel Loader

3 ton wheel loader W136, 3200kg rated load, 1.8 or 2.2 cbm bucket capacity, Yuchai or Duetz or Dongfeng Cummins engine, planet type transmission, power shift, 2 forward and 1 reverse shifts. Fenyi brand axle, caliper disc brake, air over oil active 4 wheel brake, full-hydraulic coaxial flowrate amplification steering system, middle articulated frame. Self-made cabin, hood, frame, arm and bucket. With air conditioner. Joystick, log grapple, forks, rock bucket and 4 in 1 bucket are optional.
Earth Moving Machinery, 3ton Front Shovel Loader (W136)

Earth Moving Machinery, 3ton Front Shovel Loader (W136)

Specifications:

Items	Model: W136
Bucket Capacity (m 3 )	1.8 or 2.2
Rated Load (kg)	3200
Max. Breakout Force (kN)	100
Max. Traction (kN)	97
Forward Speed 1 st (km/h)	0-10.8
Forward Speed 2 nd (km/h)	0-32.5
Reverse Speed (km/h)	0-14.5
Max. Dumping Height (mm)	3060
Max. Dumping Reach (mm)	1008
Min. Turning Radius (mm)	5376
Min. Clearance Over Ground (mm)	360
Wheel Base (mm)	2750
Tread Width (mm)	1800
Total Hydraulic Cycle Time (s)	10.3
Full Bucket Lifting Time (s)	5.6
Overall Dimensions (mm)	L:6970xW:2245xH:3286
Operating Weight (kg)	10000
Diesel Engine
Brand	Yuchai or Duetz or Cummins
Type	Direct injection, water cooling, 4 strokes
Rated Output (kw)	92/92/97
Rated Speed (rpm)	2200
Max. Torque (N.m)	460/500/560
Transmission
Type	Planet type
Rated Input Speed (rpm)	2200
Transaxle & Tire
Rear Axle Oscillation	Center oscillation
Oscillating Angle Of Rear Axle (°)	12
Pressure Of Tire (MPa)	0.28-0.32
Working Hydraulic System
Working Pump Type	Gear pump
Working Pressure (MPa)	16
Lifting Cylinder Bore x Stroke (mm)	125x816
Tilting Cylinder Bore x Stroke (mm)	140x553
Steering System
Steering Pump Type	CBY2050 (reverse)
Working Pressure (MPa)	10
Steering Cylinder Bore x Stroke (mm)	80x340
Max. Steering Angle (°)	36
