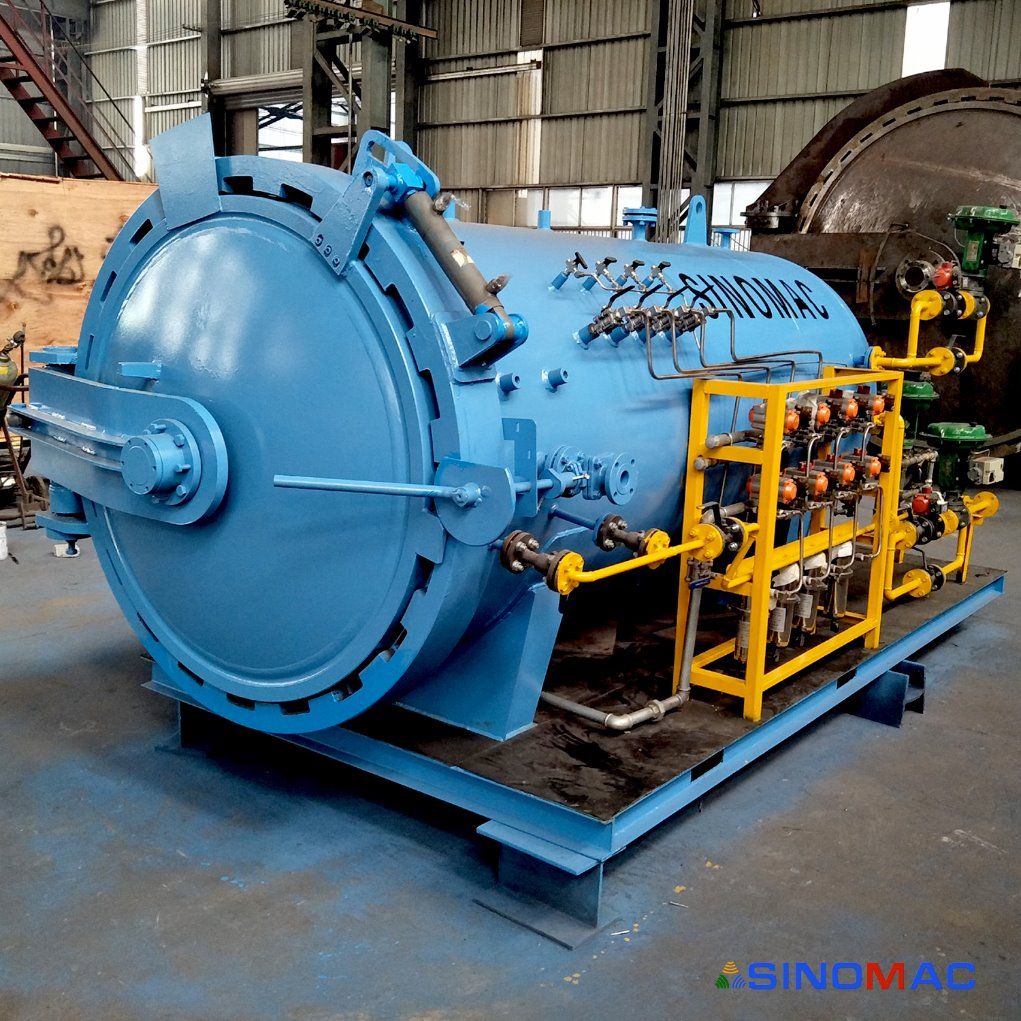

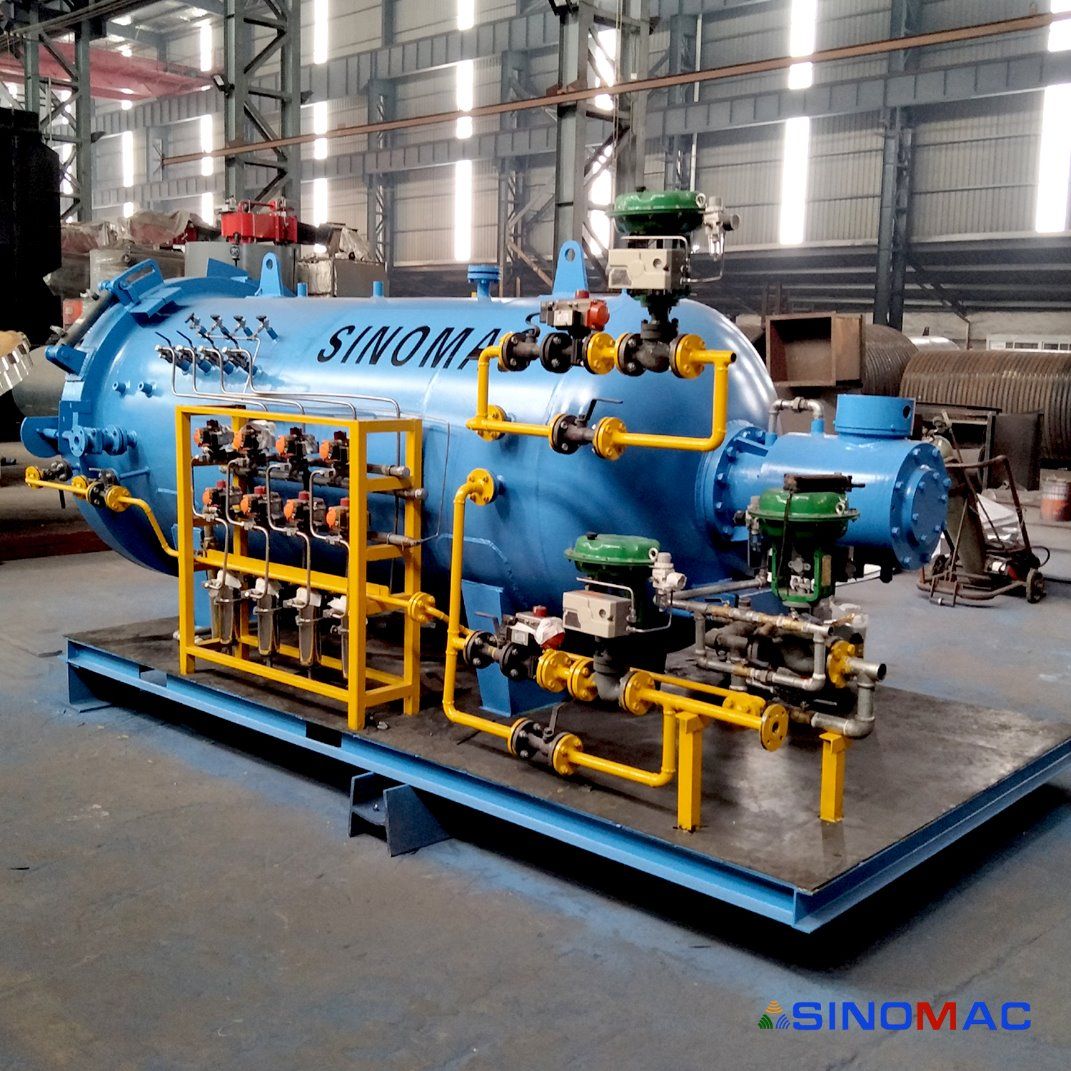

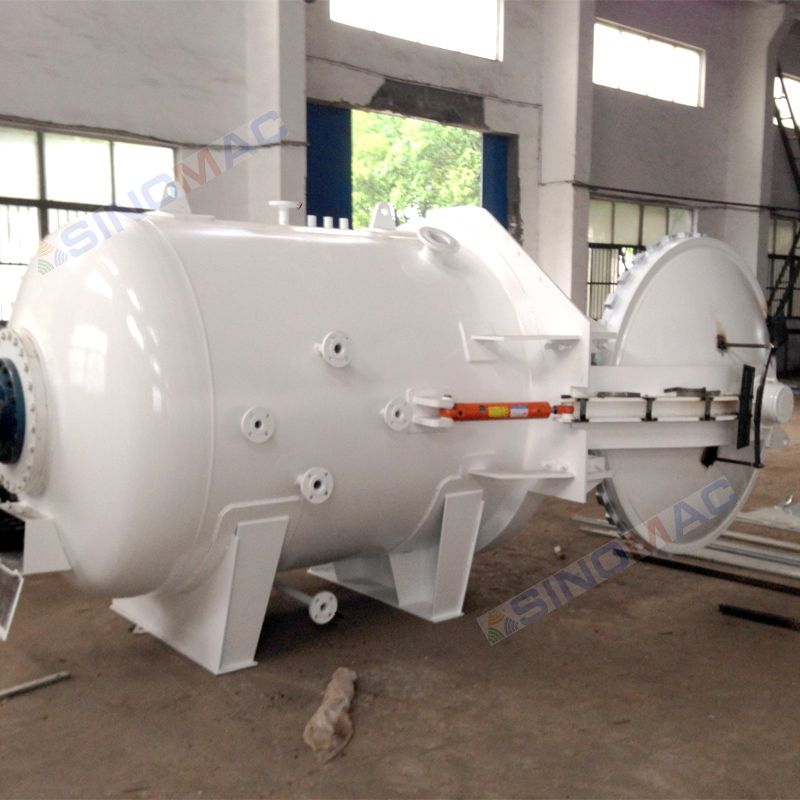

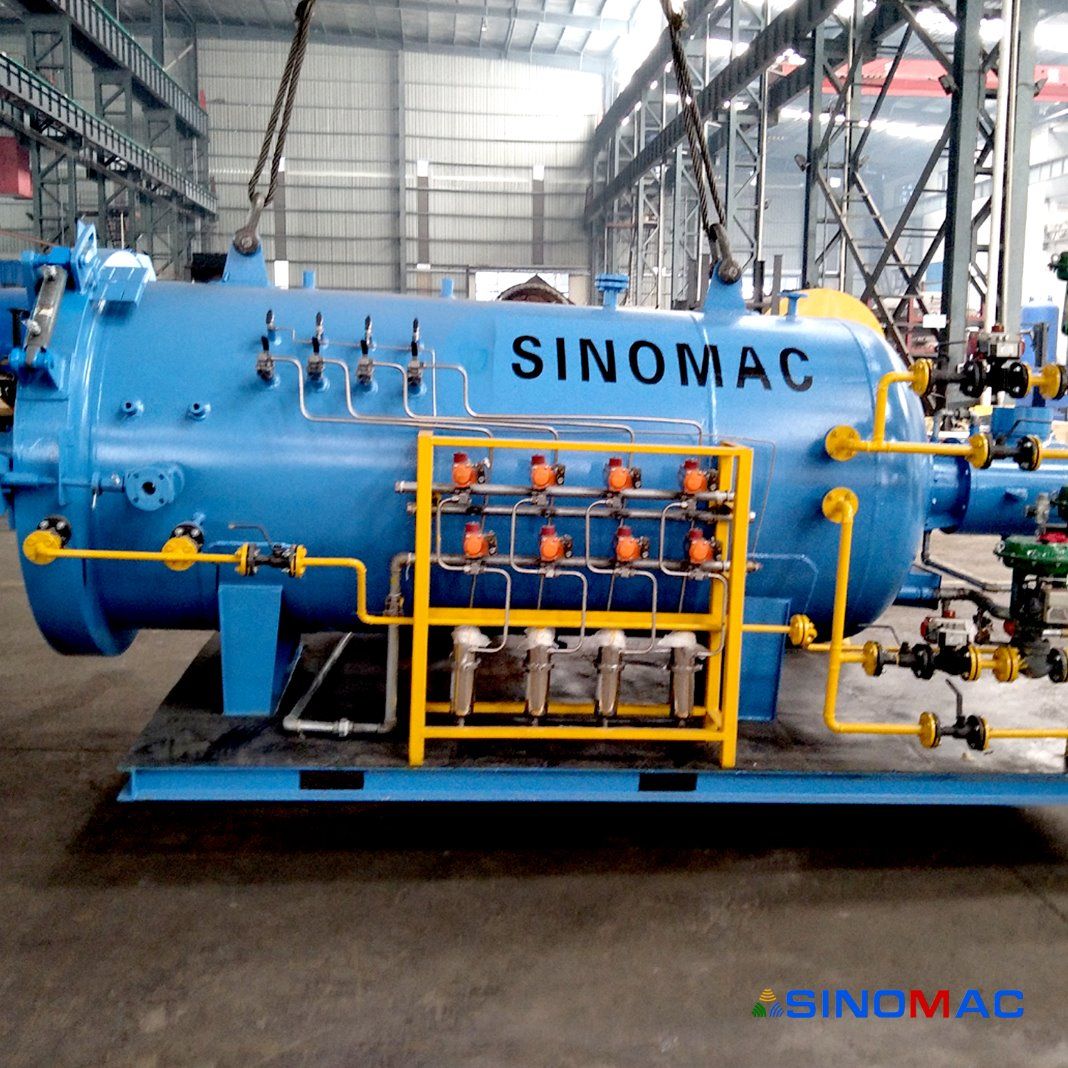

1000X1500mm Fully Integrated Assembly Composites Curing Autoclave for Laboratory Use
$30000.00 /set
Product Details
Transaction Comments
| : | Basic Info
Product Description
1. Applications of SINOMAC Composite Autoclave
The composite autoclave is a key equipment for hot-pressing shaping of carbon fibers and resin matrix composites. The quality of the product is obtained inside the autoclave reaching an increase of mechanical features up to 20-30% compared to other methods of polymerization. The reliability and the precision of the cycles which can be obtained with our autoclaves, allowing to reach and keep high quality standards of the product, which is widely used in the high-tech fields such as aerospace, automobile, electronics, weapon, traffic, sports equipment and new type of energy, etc.  2. SINOMAC TPC (Thermal Processing Control) Software SINOMAC composite autoclave is equipped with advanced Thermal Processing Control (TPC) system. TPC is a PC-based control solution designed specifically for composite curing in autoclaves. It is developed on the basis of the advanced control systems that come from excellent domestic and overseas manufacturers. It is preferred control system for the most customers. The system has the login of user permissions, parts sensor selection, curing process curve setting, calling, saving and printing, automatic and manual operation, real-time data monitoring, recording, storage and printing, system status monitoring, event alarm, quality analysis,etc.  3. General Feature and Working Process 3.1 General Feature SINOMAC Autoclave is a sealed pressure vessel which can be heated by a forced convection heating unit, where temperature, pressure and vacuum can be controlled effectively. By means of an advanced design, consisting of a forced convection fun and motor unit, output heating power system can be adjusted 0-100%,proportional control of the pressurization, cooling and exhaust components. It can obtain an uniform temperature and pressure according to the process curve. Temperature is check in heating, keeping, and cooling phase. The heating/cooling gradients can be set by operator. Pressure is adjusted in pressurization, keeping, release phase. 3.2 Working Process The whole working process of SINOMAC Autoclave has 15 segments .In each segment, the value of temperature, pressure, vacuum and segment time can be set and monitored by HIM and PC, and the operation process will be realized by our exclusively developed software which is based on PLC control system to ensure the full automatic operation. SINOMAC Autoclave is suitable for manufacturing various composite materials, and it also can guarantee the perfect product quality. 3.2.1 Example recipe  Vacu1: minimum vacuum pressure Vac2: maximum vacuum pressure Press.1: pre-pressure Press.2: final pressure Temp1:temperature of first segment Temp2: temperature of second segment Temp3: temperature of third segment Temp4: temperature of forth segment Temp5: temperature of cooling and release T1: keeping time of first segment T2 : keeping time of second segment T3: keeping time of third segment T4 :keeping time of forth segment 3.2.2 SINOMAC Control System Structure  4. Pressure Vessel 4.1 Manufacture Standard Pressure vessel with quick-opening door, can be certified to:
4.2 Pressure Vessel Certification and Compliance The autoclave is 100% GUARANTEED to meet and exceed the local and national government regulations. As such, documentation will be provided as follows - but not limited to - by the Seller to ensure the autoclave is fit for professionally use:
4.3.1Operational Standards & Requirements The autoclave is 100% GUARANTEED to meet and exceed the operational requirements set-out in the following commercial industry documents:
5. Technical Advantages Of SINOMAC Composite Autoclave 5.1 No air duct Conventional autoclaves have an annular duct that is used to transfer air from the rear of the autoclave to the front. This air duct requires a larger pressure vessel and increase some extra ducting sheet metal .These factors will cause the high energy consumption on heating and cooling, increasing the use cost of customer's. SINOMAC composite autoclave does not require an annular air-duct and instead utilizes the floor as the forward air delivery system. It has a Sieve-Ventilation slots system in the rear and front of the autoclave. This unique design feature reduces the pressure vessel diameter by 100-150mm when compared to a conventional autoclave. This reduction in size and the elimination of the inner air duct reduces operating heating costs, pressurization costs, and equipment price. 5.2 Unique heating and cooling systems under the floor In conventional autoclaves, the heater and cooling exchanger typically mounted at the rear of the autoclave. This rear-mounted approach requires the autoclave pressure vessel to be up to 1.5m longer to accommodate the components and the transition ducting at least.SINOMAC composite autoclave on the other hand incorporates floor-mounted heaters and cooling exchangers and therefore eliminates the need for the additional vessel length. This feature allows the SINOMAC autoclave's vessel to be much shorter than the vessel used for a conventional autoclave. This positively impacts operational costs by reducing the amount of heating required and the amount of pressurization gas used for a standard cycle. 5.3 Advantage of Sieve-Ventilation slots system SINOMAC composite autoclave utilizes Sieve-Ventilation slot panels to straighten and balance air flow in the autoclave. Sieve-Ventilation slots are full-area, flow adjusting panels that facilitate the balancing and straightening of the air flow at the front and rear of the autoclave prior to entering/exiting the working volume. Unlike conventional autoclaves, an composite autoclave with Sieve-Ventilation slot technology has no dead-spots and therefore provide near 100% useable volume for your parts. The overall result is unequalled temperature uniformity down the entire length of the autoclave and uniform heating and cooling of your valuable part load. 5.4 Advanced structure of door sealing ring Using ceramic fiber channel segregation, and a special cooling system. 5.5 Fully sealed circular motor fan Fully sealed special motor, bearings with SKF high-temperature series. The structure is easy to maintenance and, no oil leakage, no air leakage.  6. Autoclave Specification
7. Professional Workshop  From the SINOMAC Team, with 15 years of experience. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
