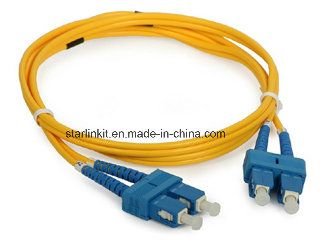

Fiber Optic Patch Cord Cable Single Mode Sc to Sc

$2.00 /piece


Stock:	1000piece

Send Inquiry

Seller Support:

Trade Assurance — To protect your orders from payment to delivery

Product Details

Transaction Comments

Basic Info

Model NO.: SL-SC+SM/DUP
Type: Single-mode Fiber
Material Shape: Round Wire
Allowed Tensile Strength: 100N<1000N
Certification: RoHS, CE
Sheath Material: PVC
Trademark: Star Link
Specification: SC singlemode, Duplex
HS Code: 85447000

Application: Communication
Connection Structure: SC
Allowed Lateral Pressure: 100（N/100mm)<1000（N/100mm）
Core: Double Core
Brand: OEM
Od: 3.0mm
Transport Package: 1PC/Bag
Origin: China

Product Description

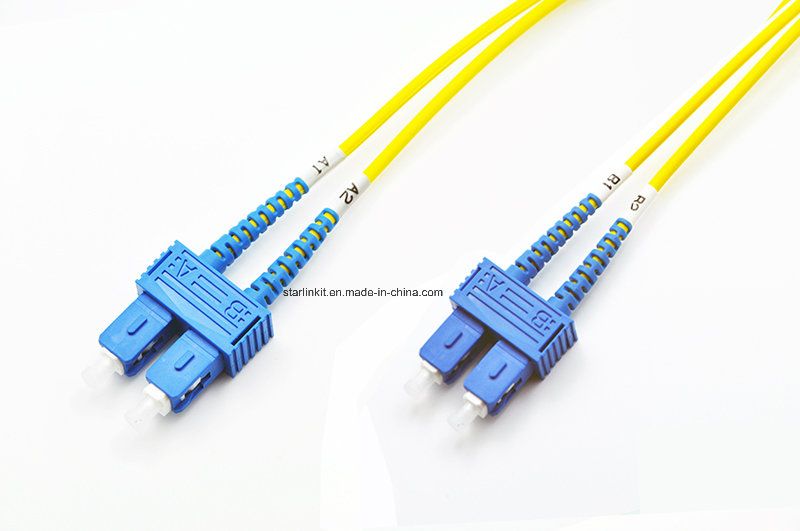

Description: Single-mode Patch Cord PC(2xSC-2xSC, 9/125)

Fiber Optic Patch Cord Cable Single Mode Sc to Sc

Item:	Starlink Fiber Patch Cord
Code:	SL-SC+SM/DUP
Length:	1-30 M
Fibers:	2 x single-mode, 9/125
Connectors:	SC (A1)	SC (A2)	SC (B1)	SC (B2)
Insertion loss:	< 0.25 dB	< 0.25 dB	< 0.25 dB	< 0.25 dB
Return loss:	> 50 dB	> 50 dB	> 50 dB	> 50 dB

High Quality and Cost-effective 9/125μm Singlemode Fiber Patch Cable

The 9/125μm single mode fiber patch cables are RoHS compliant, and all cables are 100% optically tested for insertion loss to ensure high quality, it is very cost-effective for data network.

Star Link also provides a full set of OEM services, such as fiber connector, length, color, fiber grade, specification, material, package etc.

How to Choose The Right Fiber Optic Cable Type?

Designation	Fiber Dia. (μm)	Type	Fast Ethernet 100BASE-FX	1 Gigabit Ethernet 1000BASE-SX	1 Gigabit Ethernet 1000BASE-LX	10 Gigabit Ethernet 10GBASE	40 Gigabet Ethernet 40GBASE-SR4	100 Gigabet Ethernet 100GBASE-SR4
OM1	62.5/125	Multimode	2000 Meters	275 Meters	550 Meters (mode conditioning patch cable required)	33 Meters	Not supported	Not supported
OM2	50/125	Multimode		550 Meters	550 Meters (mode conditioning patch cable required)	82 Meters	Not supported	Not supported
OM3 (Laser Optimized)	50/125	Multimode			550 Meters	300 Meters	100 Meters	100 Meters
OM4 (Laser Optimized)	50/125	Multimode			550 Meters	400 Meters	150 Meters	150 Meters
Singlemode	9/125	Singlemode		5km at 1310nm	5km at 1310nm	10km at 1310nm

PS:The difference of OM4 and OM3 fiber mode as the following

1. OM4 was developed specifically for VSCEL laser transmission and allows 10 Gig / second link distances of up to 550 Meters (compared to 300M with OM3).

2. The effective modal bandwidth for OM4 is more than double that of OM3.

3. For OM4 patch cable, it is 4700 MHz.km while for OM3, it is 2000 MHz.km.
