USA Stranded Fluke Test UTP FTP SFTP Network LAN Cat5e CAT6 Cable

$15.00 /boxes


Stock:	1000boxes

Send Inquiry

Seller Support:

Trade Assurance — To protect your orders from payment to delivery

Product Details

Transaction Comments

Basic Info

Model NO.: cat5e utp 4pr 24awg
Conductor Material: BC/CCS/CCA/TC/CU/CCAG
Type: Cat 5
Conductor Type: Solid
Certification: CE, ISO, RoHS, ETL Reach SGS BV
Brand: Siemens
Dielectric: 0.90mm PE
Jacket: 5.20mm PVC
Temperature Rating: 20 to 60c
Characteristics Impedance: 100&Omega
Delivery Time: 15days
Transport Package: Wooden Reel, Plastic Reel, and Paper Reel
Origin: Zhejiang, China

Application: Local Communication Cable, LAN Cable
Cover Material: PVC
Material Shape: Round Wire
Wire Core Material: Bare Copper Wire
Model: MHYV-xx
Center Conductor: 24 AWG Bc/CCA
Insulation: Solid PE Insulation
Nom. Thick: 0.55mm
Dielectric Breakdown: 2500V
Color: Grey,Blue,Black,Yellow,Red etc
Trademark: ZHONGLI
Specification: 100m/roll, 200m/roll, 305m/roll, .
HS Code: 854491100

Product Description

USA Stranded Fluke Test UTP FTP SFTP Network LAN Cat5e CAT6 Cable

1)4pairs x 0.51mm BC/CCS/CCA conductor
2)0.90mm PE insulation
3)Aluminum foil + 0.50mm BC/CCS/CCA drain wire

1. Component

4pairs x 0.50mm BC/CCS/CCA conductor+0.90mm PE insulation + Aluminum foil + 0.50mm BC/CCS/CCA drain wire + 5.20mm PVC jacket

(Specification can be made to customers' satisfaction.)

2.Specification

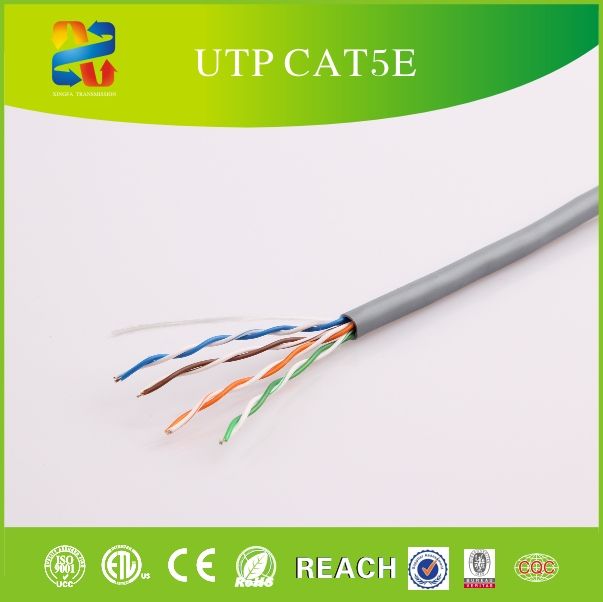

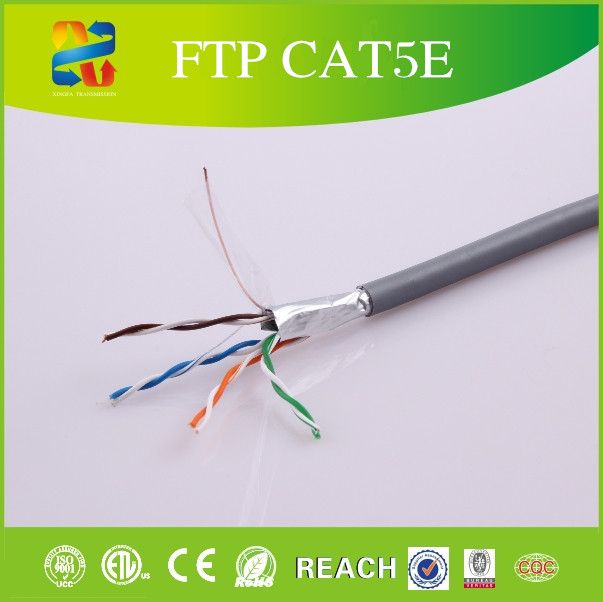

Part Number		Utp cat5e	Utp cat6	FTP CAT.5E
Conductor	Diameter	0.51±0.01	0.574±0.01	0.515±0.01
	Material	Bare Copper	Bare copper	Bare copper
	Type	Solid	Solid	Solid
Dielectric(Insulation)	Diameter	0.91±0.01	1.04±0.01	0.93±0.01
Dielectric(Insulation)	Material	Solid PE	Solid PE	Solid PE
Shielding	Material	-		Aluminium foil Tinned copper drain wire
Shielding	Coverage	-	-	100%
Jacket(sheath)	Diameter	5.1±0.1	6.3±0.01	5.5±0.01
Jacket(sheath)	Material	Flame retardant PVC	Flame retardant PVC	Flame retardant PVC
colors		Pair 1 : Blue,White / Blue Pair 2 : Orange,White / Orange Pair 3 : Green,White / Green Pair 4 : Brown,White / Brown	Pair 1 : Blue,White / Blue Pair 2 : Orange,White / Orange Pair 3 : Green,White / Green Pair 4 : Brown,White / Brown	Pair 1 : Blue,White / Blue Pair 2 : Orange,White / Orange Pair 3 : Green,White / Green Pair 4 : Brown,White / Brown
Number of Pairs		4pairs	4pairs	4pairs
Weight (kgs/km)		30	40	35
Attenuation(10MHz dB/100m)		6.5	5.6	6.5
NEXT (100MHz dB/100m)		≥35.3	≥38.3	≥35.3
ELFEXT (100MHz dB/100m)		≥23.8	≥19.8	≥23.8
RL (100MHz dB/100m)		≥20.1	≥17.3	≥20.1
Impedance (ohms )		100	100	100
Operating Temperature Range(°C)		-20 to 75	-20 to 75	-20 to 75
package		305meters/roll	305meters/roll	305meters/roll

3.Attenuations

Frequency (MHz)	Attenuation (dB/100m)	Return loss (dB/100m)	Pair to Pair
			NEXT (dB/100m)	ELFEXT (dB/100m)
0.77 1 4 8 10 16 20 25 31.25 62.5 100 155 200 300 350	1.80 2.00 4.00 5.80 6.50 8.20 9.20 10.40 11.70 17.00 22.00 28.10 32.40 41.00 44.90	NA 20.00 23.00 24.50 25.00 25.00 25.00 24.30 23.60 21.50 20.10 18.80 18.00 16.80 16.30	70.00 68.30 59.30 54.80 53.30 50.30 48.80 47.30 45.90 41.40 38.30 35.50 33.80 32.30 30.20	69.00 66.80 54.70 48.70 46.80 42.90 40.70 38.80 36.90 30.80 26.80 22.90 20.70 17.20 15.90

4.Packing
1) Packing Lengths: 200m/roll, 305m/roll,1000m/drum,Other lengths available according to client's request;
2) Inner packing: Wooden reel, plastic reel available.
3) Outer packing: Cardboard box, pallet customers'request available.
4) Other packing available according to client's request

5.About US
We HANGZHOU XINGFA TRANAMISSION EQUIPMENT CO., LTD. is TOP3 cable manufacturer in Linan, Hangzhou,China. We have more than 18 years experience in the communication cable industry in China. We mainly prouduce Coaxial Cables, Lan Cables, Alarm Cables, Speaker Cables, Telephone cables and so on.
This is our factory pictures below.

6.Exhibition Trade Show
We attend to 3-5 Fairs in Hongkong, Guangzhou, and aboard, to meet with the old customer, also show our company to the future new customers.
