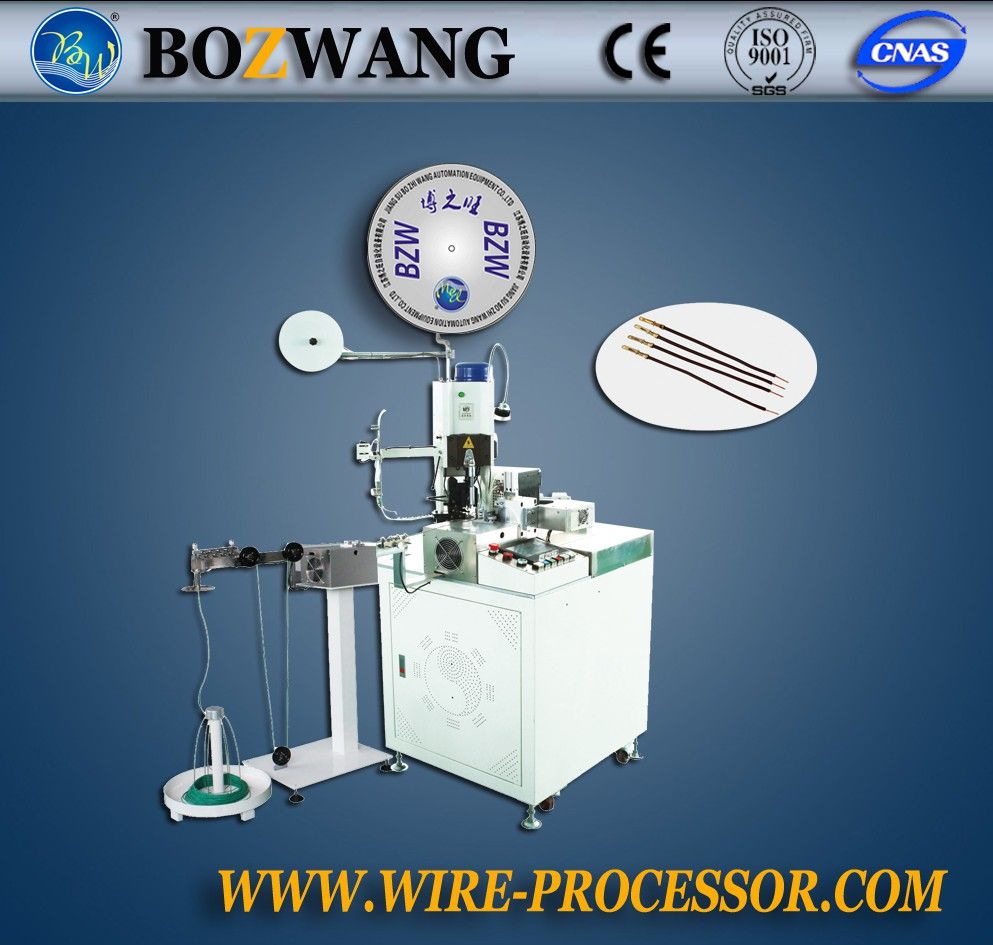

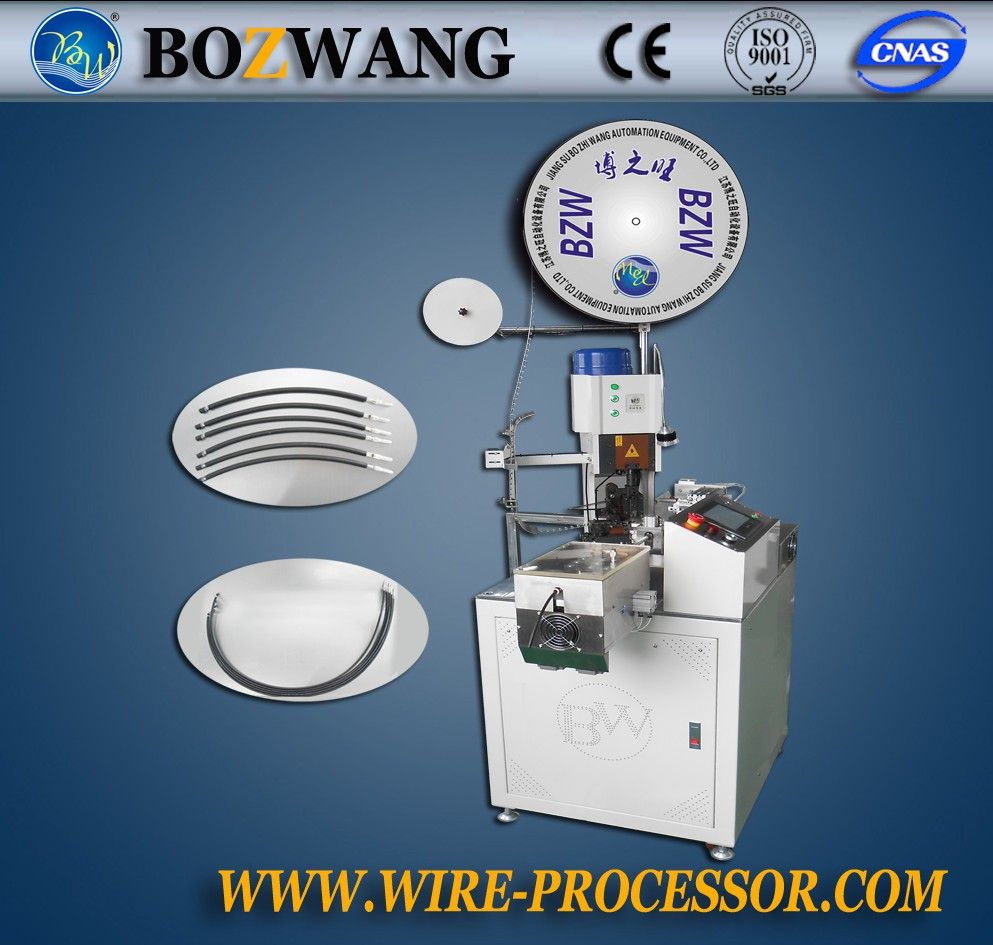

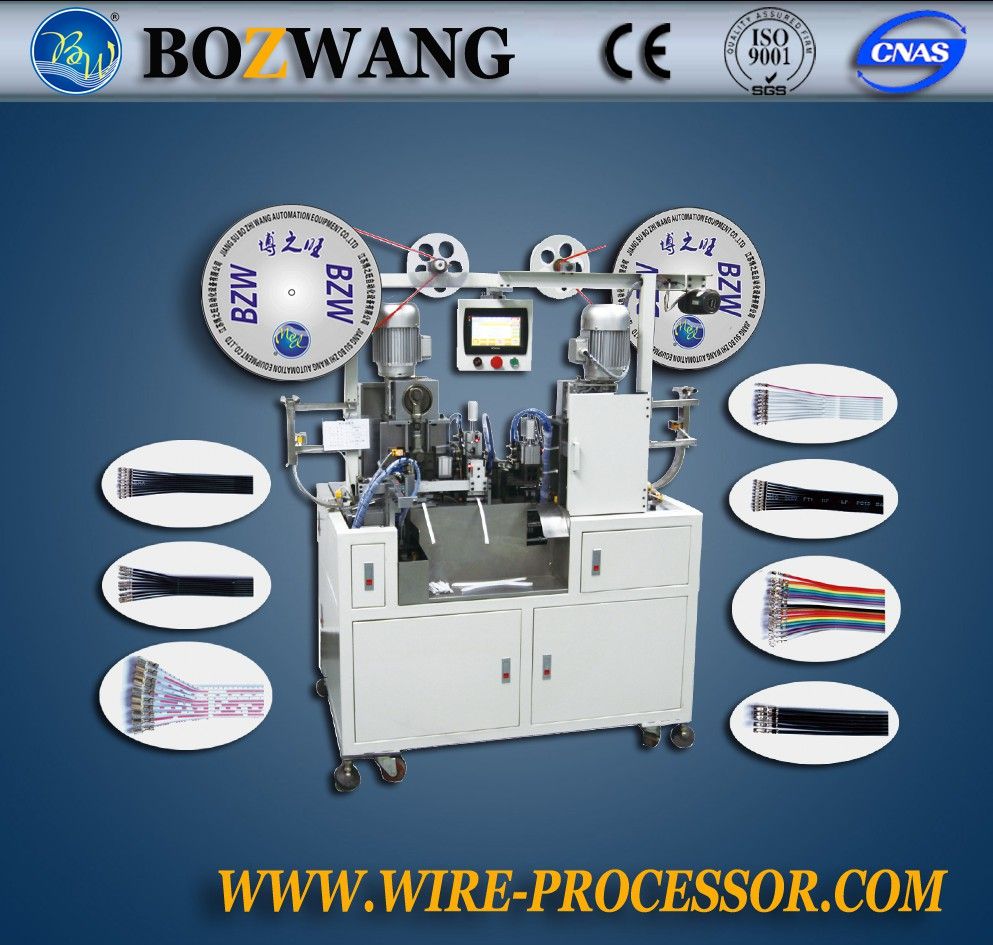

Crimping machine, crimper,  wire/cable crimping machine/equipment :

It is a multi-functional automatic  terminal crimping machine integrated with feeding, cutting, stripping and crimping.

Main application:

Mainly used for crimping terminal of flat cable, such as PH, XH, EH, ZH color communication wire, and bar-shaped connector of SCW,SM,VH,DUPON,

Features:

1. Stable performance

2. High precision

3. Full automatic

4. Less space occupation

5.  Simple operation

Technical parameters:


1.Applicable wire: all kinds of wire


2.The max.P wire row: 20 P


3.The max.Width wire displacement: 28 mm


4.The width range of the single wire: 0.8-2.5mm


5.Cutting length: 72-9999mm


6.Cutting precision: ±0.5mm


7.Stripping length on the two ends: 2-10mm


8.Working capacity: 18000 PCS/H (20P wire rows)


9.Function: single terminal crimping, double terminals crimping, interval crimping, front and rear crimping.


10.Die: changeable


11.Working pressure: 0.4-0.6 mpa, the air source should be filtered and dried.


12.Voltage: 220V 50Hz


13.Rated current: 15A


14.Power: 3300W


15.Outer dimension: 1.85m x 0.76m x 1.83m


16.Weight: 527 kg


17.Occupied area: 2 x 2.5m
