China Price Lm4040e Mini CNC Machine Laser Cutter

$2500.00 /set


Stock:	1000set

Send Inquiry

Seller Support:

Trade Assurance — To protect your orders from payment to delivery

Product Details

Transaction Comments

Basic Info

Model NO.: LM4040E
Cooling System: Water Cooling
Applicable Material: Nonmetal
Laser Classification: Gaseous Laser
Laser Type: CO2
Graphic Format Supported: Ai, BMP, Dst, Dwg, Dxf, Dxp, Las, Plt
CO2 Tube Brand: Weegiant or Reci
Table Type: Blade or Vacuum
Warranty: 1 Year
Trademark: WINWIN
Specification: 400x400 mm
HS Code: 8456100090

Application: Textile Machinery, Shoemaking Industry, Woodwork Industry, Advertising Industry, Art & Craft
Technical Class: Continuous Wave Laser
Structure Type: Desktop
Laser Technology: Laser Fusion Cutting
Usage: Acrylic, Glass, Leather, MDF, Paper, Plastic, Wood
Driver System: Leadshine Stepper or Fuxing Stepper
Software: Laser Cut 5.3
Power Supply: AC220V/380V, 50/60Hz
After-Sales Service Provided: Engineers Available to Service Machinery Overseas
Transport Package: Plywood Standard Package
Origin: Shandong, China

Product Description

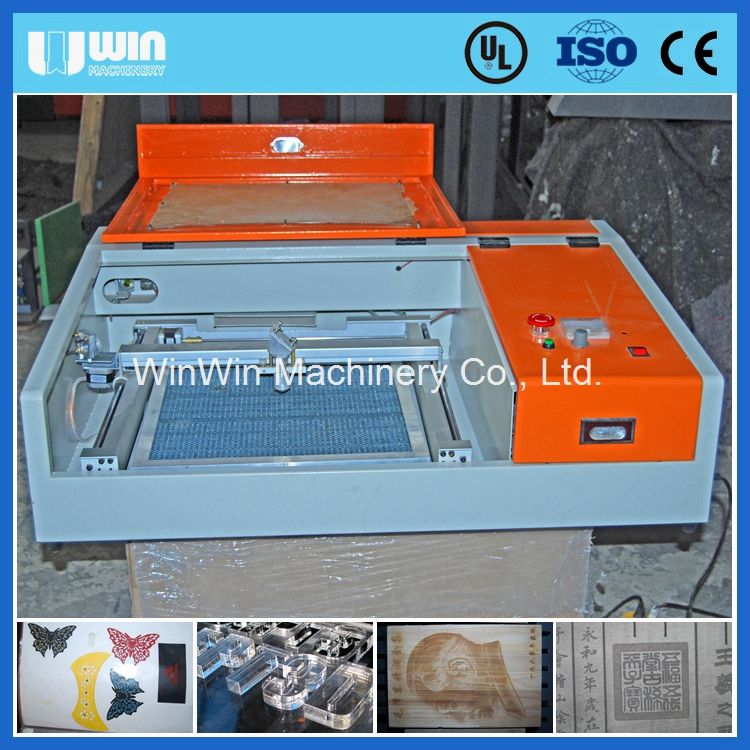

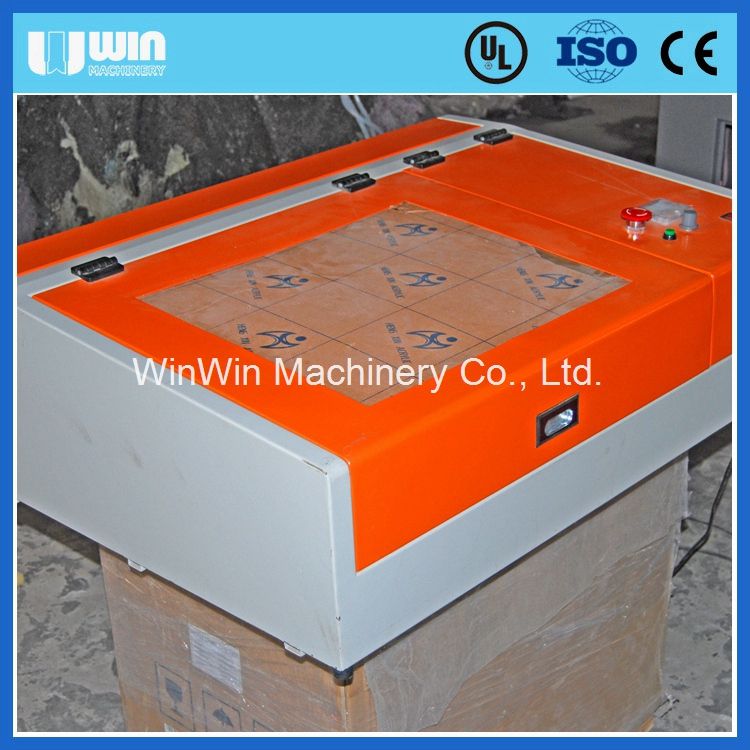

China Price LM4040E Mini CNC Machine Laser Cutter

The Laser Cutter is an affordable Laser work platform. Ideal for any size shop requiring a compact machine to run small engraving&cutting jobs or to be used as an educational tool. The Laser machines features digital DSO control panel, HIWIN rails, the machine can be matched to AutoCAD, Corel DRAW CAD and all other graphics processing softwares for outputing original graphics. This series machines firstly use USB port data interface which supports hot-plugging and momentary data transmission to realize high efficiency without accounting computer resource. The LCD controlling panel brings friendly computer-human interface and easy operation.

Advantages
1).The "front" and "back" of our laser machine can be open, suitable for super-length material process.
2).Exclusive no water warning and automatic protection system, to protect the working life of laser tube effectively. The power control system has exclusive automatic protection equipment to ensure the stability and safety of the machine to the best.
3).LCD control panel in English, convenience of operation control.
4).Import liner bearing with high engraving precision
5).offline control system which can not only work without computer, but also connect to U disk, USB communication
6).Imported metal mirrors, with good ability of reflection and focusing, long working life.
7).Red dot position system realizes the exact position without laser.
8).Auto Focus technology, realize "easy focus & high efficiency" in real, not only a word.

SPECIFICATIOS FOR LM4040E LASER CUTTER
NO.	Discription	Parameter
1	X,Y Working Size	400X400mm
2	Laser Types	Hermetic And Detached CO2 Laser Tube
3	Laser Power	40W, 50W
4	Engraving Speed	60,000mm/min
5	Cutting Speed	18,000mm(709.2inch)/min
6	Reposition Accuracy	0.01mm
7	Location precision	<0.01mm
8	Minimum Letter Size	1.5mm(0.05inch)
9	Driving system	Stepper
10	Cooling mode	Water-cooling and protection system
11	Auxiliary Devices	Exhauster And Exhaust Pipe
12	Software	Lasercut 5.3
13	Voltage	220V(110V),50/60Hz
14	Total Power	1000W
15	Packing Size(LXWXH)	600X900X350mm
16	G.W.	35KG
17	Supported Image Form	BMP, CIF, JPEG, TGA, TIFF, PLT, AI, DXF, DST (TIANDAO Embroidery Software), DWG, CDR, etc
18	Optional	Up&Down work table, Digital display, Rotary Clamp, Red light pointer, Auto focus, water chiller

Wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass Acrylic, ABS Plastic, Carbon Composite, Cardboard, Cork, Mylar, Plastic and other nonmetal materials.

Advertisement, arts and crafts, leather, toys, garments, model , building upholster, packaging and paper industry, Vector Cutting, computerized embroidery and clipping, Raster Engraving, Signmaking, etc.

China Price Lm4040e Mini CNC Machine Laser Cutter

Guarantee & After Sales Service
1.)This mini laser cutter is guaranteed for 12 months.
2.)Technical support by phone, e-mail or MSN around the clock.
3.)Friendly English version manual and operation video CD disk.

China Price Lm4040e Mini CNC Machine Laser Cutter
