PVC Plastic Pipe Production Machine for Agriculture and Architecture Water Supply
Add to wish list
22
+ Add a New List
PVC Plastic Pipe Production Machine for Agriculture and Architecture Water Supply
$20000.00 /piece
Stock: 1000piece
Send Inquiry
Seller Support:
Trade Assurance — To protect your orders from payment to delivery
Product Details
Transaction Comments
:
Basic Info
  • Model NO.: 16-630mm
  • Screw No.: Double-screw
  • Computerized: Computerized
  • Customized: Customized
  • Trademark: Fenghua
  • Specification: SJSZ65/132 or according to pipe specification
  • Product Type: PVC Pipe
  • Automation: Automatic
  • Certification: CE, SGS, ISO9001:2008
  • Condition: New
  • Transport Package: Standard Exporting Packing
  • Origin: Zhangjiagang City, Jiang Su, Province, China
Product Description
                       PVC Machine PVC Pipe Machine
It is mainly used in producing various diameters and pipe-wall thickness of PVC pipes for agriculture and constructional plumbing, cable laying etc. With years of experience, our PVC pipe machine has features of low consumption, high output, stable running etc.  The complete PVC pipe machine include: material charger, SJZ series conic twin screw extruder, mould, vacuum calibration tank, spray cooling tank(for big pipe), haul-off, cutter, stacker. Clients also can choose double/four PVC pipe machine to make small size PVC pipes
Production line configuration reference(pvc pipe process machine)
Item component quantity
1. Screw loader 1set

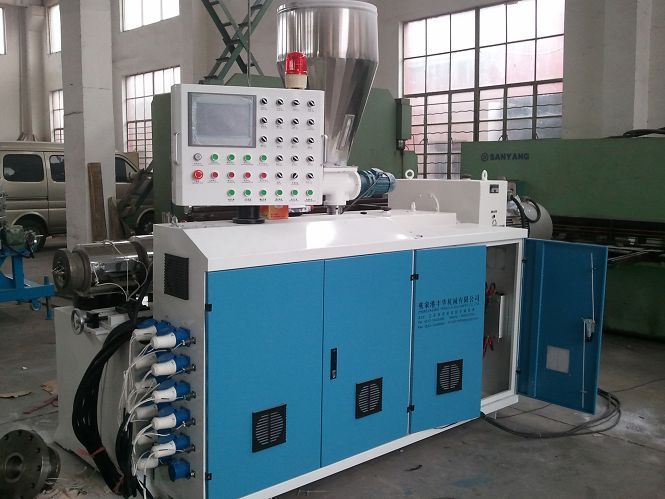

2. conical twin screw extruder 1set

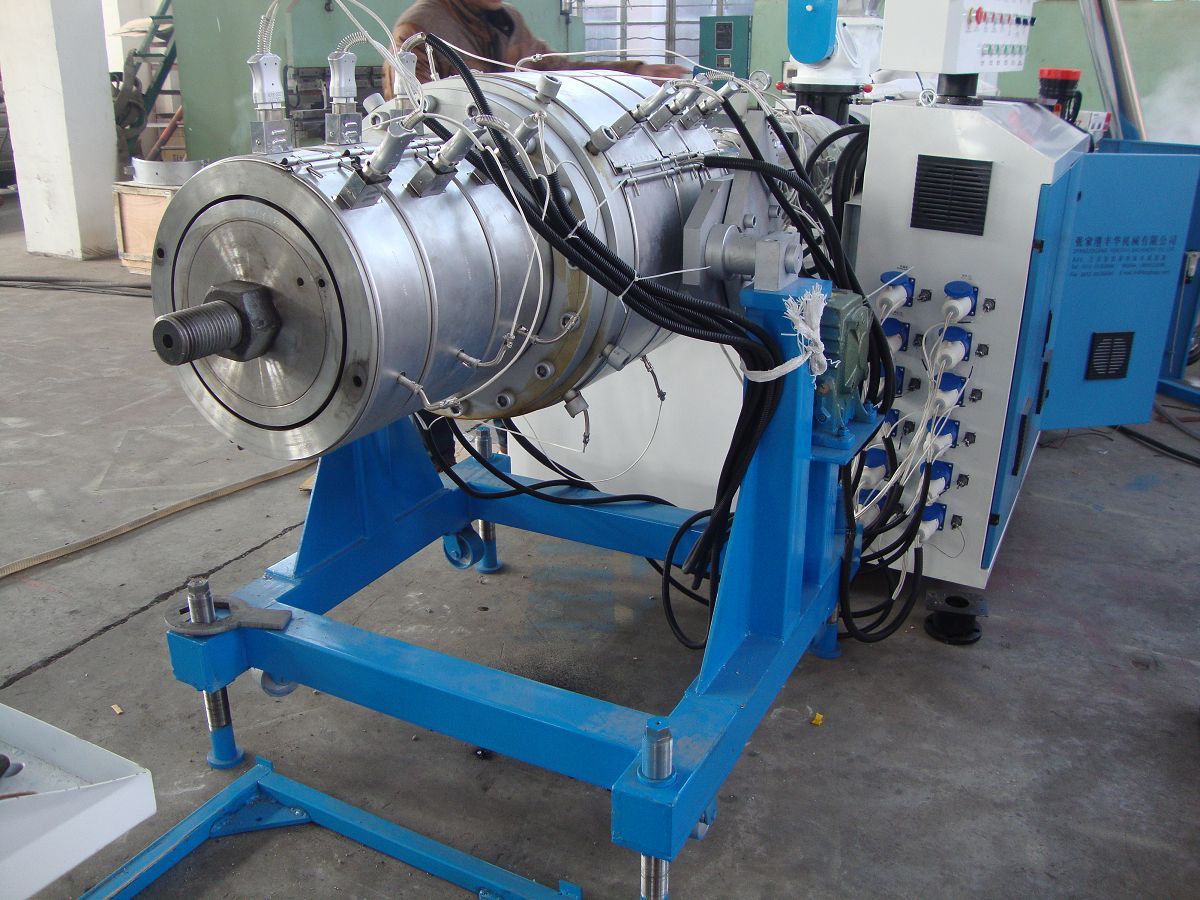

3. pipe mold according to pipe specification in each line

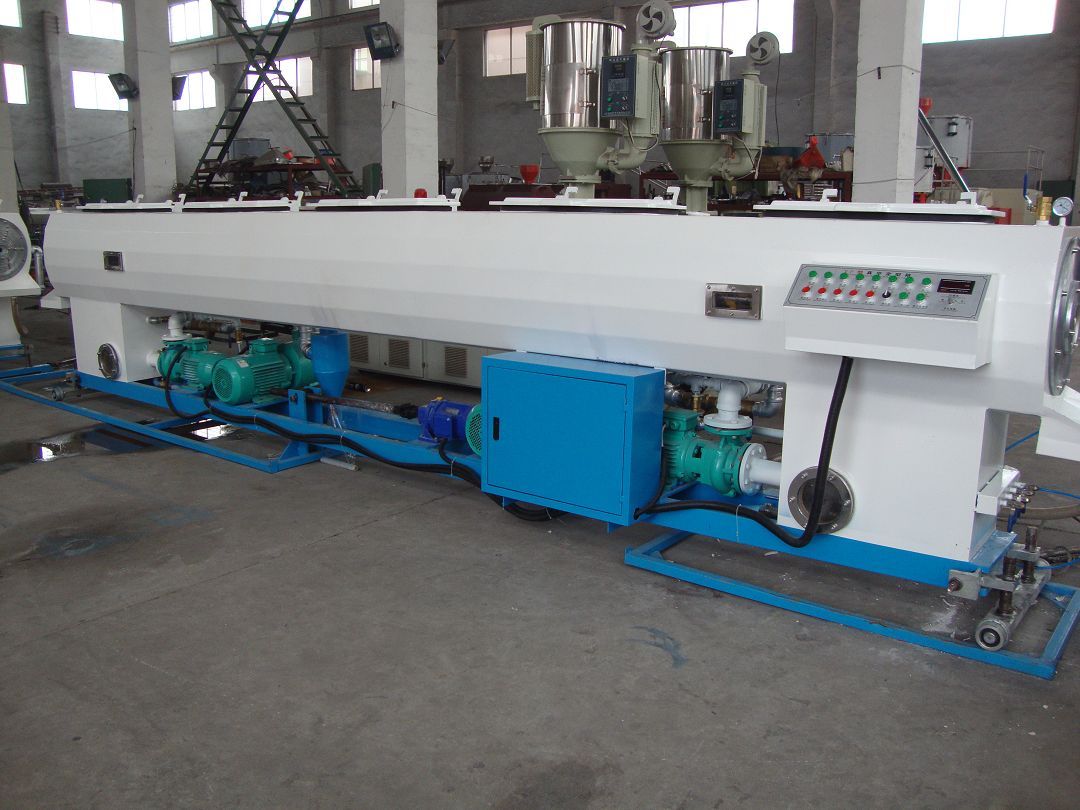

4. vacuum calibration tank 1set
5. water-spray cooling tank 1set(or optional)
6. hauling machine 1set
7. cutter 1set
8. stacker 1set
9. High speed mixer unit 1set
10. PVC pipe crusher 1set
11. PVC milling machine 1set
Main parameter reference(pvc pipe machine)
Model number PVC-16/63 PVC-20/110 PVC-50/160 PVC-75/250 PVC-110/315 PVC-200/450 PVC-315/630
Pipe diameter  16-63mm 20-110mm 50-160mm 75-250mm 110-315mm 200-450mm 315-630mm
Max output  120kg/h 120kg/h 180kg/h 300kg/h 450kg/h 650kg/h 800kg/h
Production rate 1.5-15m/min 0.8-8m/min 0.5-5m/min 0.4-4m/min 0.3-2m/min 0.1-1m/min 0.07-0.7m/min
Extruder model SJZ-50/105 SJZ-50/105 SJZ-55/110 SJZ-65/132 SJZ-80/156 SJZ-92/188 SJZ-92/188
Motor power 45kw 45kw 55kw 75kw 105kw 160kw 205kw
Center height 1000mm 1000mm 1000mm 1000mm 1100mm 1100mm 1200mm
Installation area 22*2.5*2.0m 24*2.8*2.0m 24*2.8*2.0m 30*2.8*2.2m 35*3.0*2.4 m 36*3.0*2.4 m 38*3.2*2.8 m
