Safety Open Boiling Tin, Tinplate Cap Making Machine

$100000.00 /sets


Stock:	1000sets

Send Inquiry

Seller Support:

Trade Assurance — To protect your orders from payment to delivery

Product Details

Transaction Comments

Basic Info

Model NO.: 502
Product Model: 502
Product Capacity: 70 Lids/Min
Outer Size: 5000mmx1150mmx2400mm
Air Pressure: ≥0.6MPa
Control System: Servo Motors Driven
Transport Package: Standard Export Package in Wooden Box
Origin: Hangzhou, Zhejiang, China

Product Category: Economical Easy Open Cap Making Machine
Product Specifications: 603, 502,401 Different Shape Lids
Power: 35kw(380V 50Hz)
Total Weight: 3500kg
Air Flow: ≥0.6m³/Min
Trademark: EV
Specification: 5000mmx1150mmx2400mm
HS Code: 8422303090

Product Description

Foil sealing tin / can / drum easy open cap making machine / maker
Usage and Application:
Easy open caps, also be called safety caps, they are widely used in the food packing area, to solve the problems of can food that can not be opened easily and burrs on the edge after opening.
This kind of caps are processed on the tin/aluminum caps, punching an open hole, curling the hole edges, then sealing the foil/plastic on the holes, and making the easy pulling ring that can be opened easily, and this type of caps is about 50% lighter than normal caps.
When the caps open, it can avoid the dust or metal burrs fall into the food, the curled edge will not hurt hands.
The sealing includes high speed and economical sealing, the sealing quality can endure high pressure, also can be used to make the boiling can food caps.

The application will be:
Used for tinplate, aluminum caps, sealing by aluminum foil/plastic sheet, can be used for boiling products, like sardine cans, fruits cans etc.
Also can be used for powder products like powder, coffee powder, granule products like coffee beans, snacks etc.

Product Process & Options:

Process No.	Process name	Remark
1st	Automatic raw caps feeding	Suitable for round, oval or rectangle shape caps
2nd	Open hole punching	Punch the open hole, hole shape can be customized as round oval or rectangle.
3rd	Hole edge drawing	Preparing for curling
4th	Hole edge curling	Curling the round edge of the punched hole, to avoid hurt people in opening
5th	Pre-heating	Preparing for foil sealing
6th	Foil cutting, sealing cooling	Making a pulling ring on the foil, Cutting the foil as the punch hole sizes. The sealing foil can be 60-90microns foils, also can plastic sheets
7th	Cobwebbing press	Pressing the cobwebby on the foil
8th	Dedusting , counting and outputting

Other options:

Can use tab or ring pulling to hold and open the caps.
Can use 60-90 microns foil or plastic sheet to seal the caps.
Can use smooth or textured foil/plastic.
Can with or without de-gassing dimples.

Size list of typical products (the size can be customized):
Safety Open Boiling Tin, Tinplate Cap Making Machine

Function and characteristics:

The machine is adopted servo motors driven, cooperating with pneumatic system. Used PLC to control the temperature, sensors, can complete the raw caps given, hole punching, edge drawing, edge curling, pre-heating, foil cutting and sealing, foil folding and cooling, cobwebbing press, riveting, de-dusting and outputting automatically.
The operation system is adopted touch screen, can adjust the parameters and set information on line.
The transmission is adopted advanced synchronous belt, servo motor one shaft positioning driven. To make the sealing pressure equal, ensure the stability of the whole system.
The sealing foil cutting is adopted individual feeding system, will not move with the caps, to save the sealing materials.
The heat sealing is adopted high frequency electrical heating, the sealing temperature is controlled by individual temperature moulds , can be set and adjusted separately.

Main Parameters:

High-speed Easy Open Cap Making Machine		Economical Easy Open Cap Making Machine
Product Specifications	603, 502,401,307,300,209 different shape lids	603, 502,401,307,300,209 different shape lids
Product Capacity	Tin 240-300psc/min; Aluminum 200 -240psc/min	70 lids/min
Power	50KW(380V 50HZ)	35KW(380V 50HZ)
Outer Size	5000mmx1150mmx2400mm	5000mmx1150mmx2400mm
Total Weight	5000kg	3500kg
Air Pressure	≥0.6Mpa	≥0.6Mpa
Air Flow	≥0.6m³/Min	≥0.6m³/Min

Typical machines introduction:

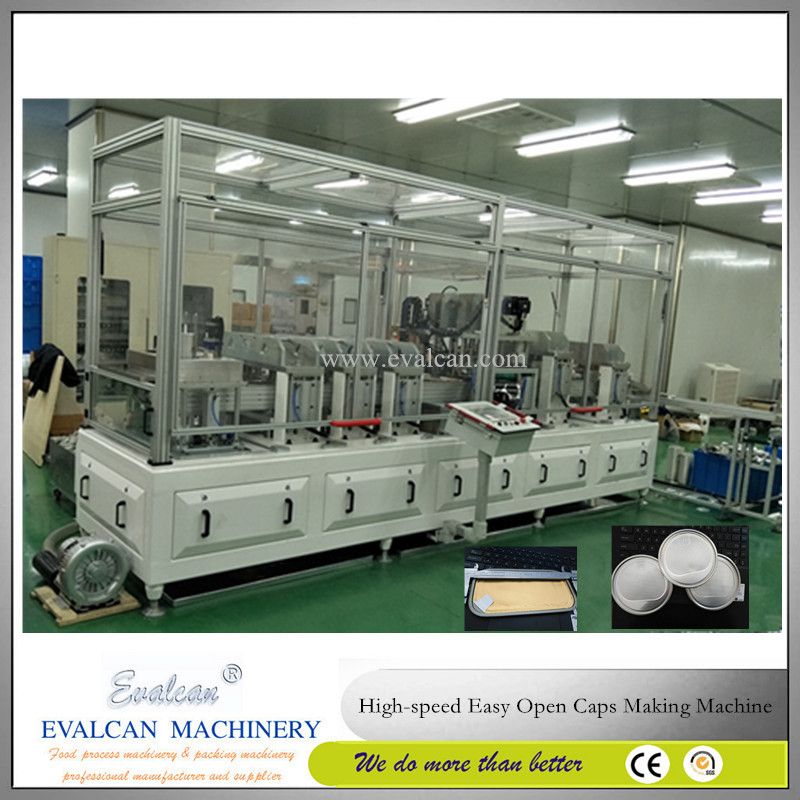

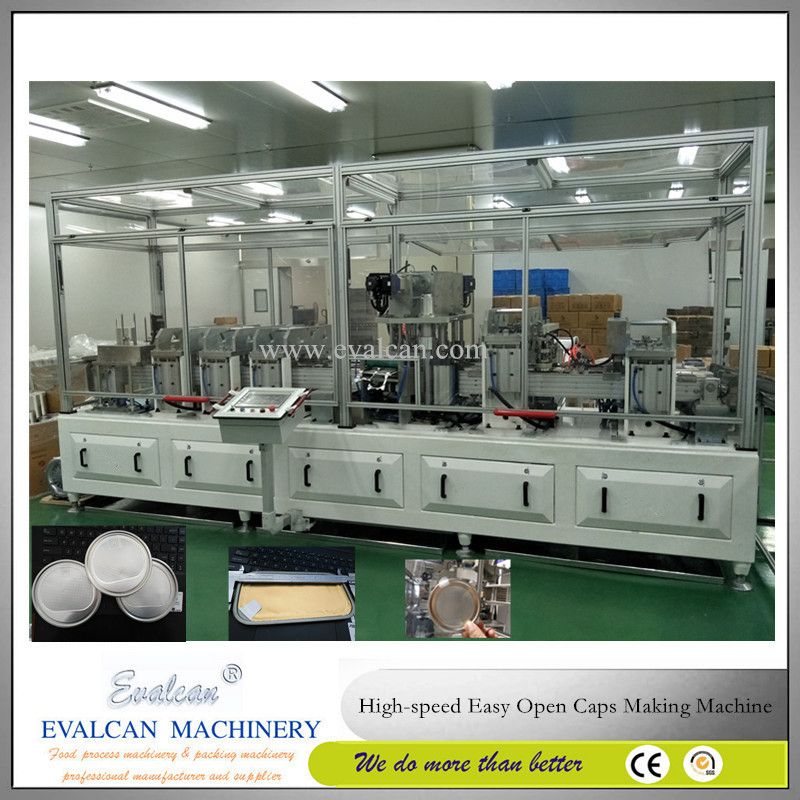

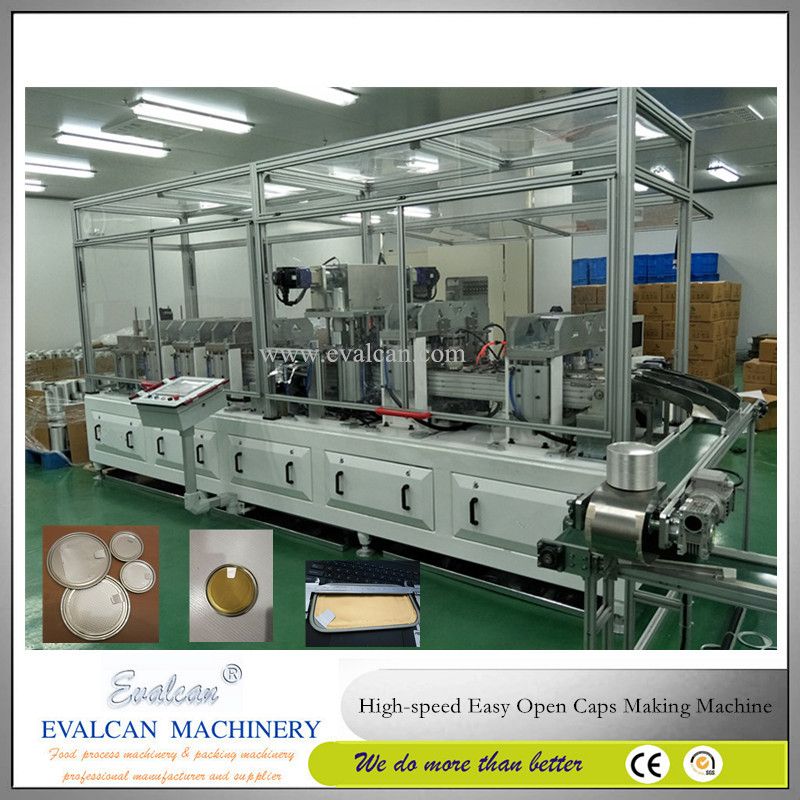

1-High-speed Easy Open Cap Making Machine
307 (83mm) Peel-off membrane end
