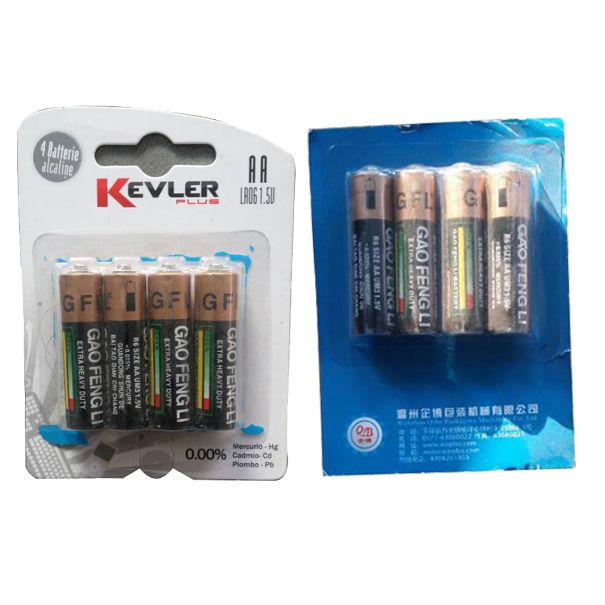

PVC-Papercard Packing Battery Blister Shape Package Machine with Disk Table
$30000.00 /set
Stock: 1000set
Send Inquiry
Seller Support:
Trade Assurance — To protect your orders from payment to delivery
Product Details
Transaction Comments
:
Basic Info
  • Model NO.: QB-350
  • Driven Type: Electric
  • Structure: Upper and Lower Electric Heating Furnace
  • Packaging Type: Cartons
  • Max. Forming Area: 350X220mm
  • Max Depth: 45mm (Can Be Ordered)
  • Packing Material: PVC/Pet/PS etc.
  • Specification: ODM
  • HS Code: 84224000
  • Application Field: Food, Medical, Commodity, Machinery & Hardware, Beverage, Chemical, Apparel, Textiles
  • Automatic Grade: Automatic
  • Packaging Material: Plastic
  • Type: General
  • Max. Paper Area: 350X220mm
  • Thickness/Width: 0.15-0.5mm/200-350
  • Trademark: QB
  • Origin: Wenzhou
Product Description

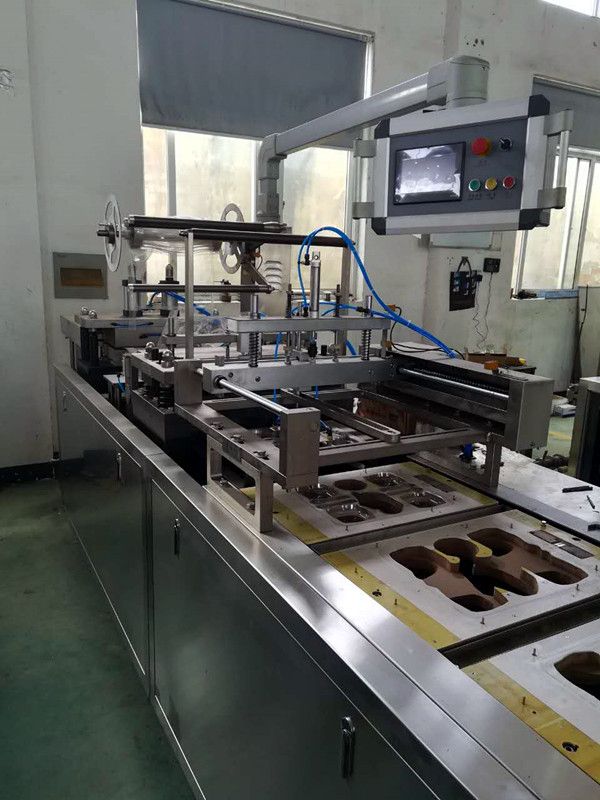

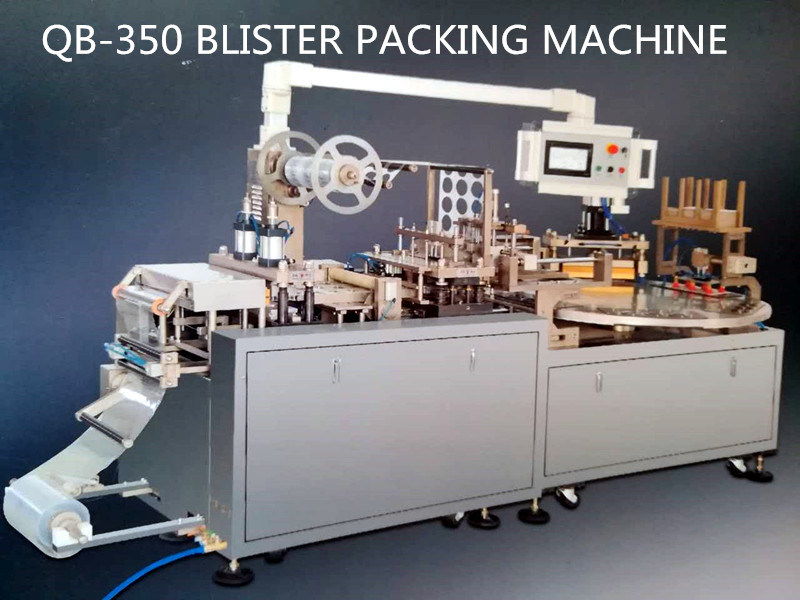

QB-350 pvc-papercard battery blister packing machine

PVC-Papercard Packing Battery Blister Shape Package Machine with Disk Table


PVC-Papercard Packing Battery Blister Shape Package Machine with Disk Table



Main Features:
1.  Combining thermoforming, cutting, charging, sealing and feeding into one cycle.
2.  304 stainless steel housings, which is nice and easy clean
3.  Frequency control, colorful touch screen, human interface and PLC control system. Easy operation and fully automatic.
4.  Servo motor realizes variable control of stroke, that lead to easy operation and convenient for mould changing.
5.  Photoelectric control will warning while lack of the plastic sheet and paper for sealing.
6.  Independent in each station, free for delivery and even move into an elevator.
7.  Customer ordered mould and charge-in system.



PVC-Papercard Packing Battery Blister Shape Package Machine with Disk Table

PVC-Papercard Packing Battery Blister Shape Package Machine with Disk Table


Parameters
Cutting capacity 10-20 cycles/min Feeding length 40-250mm
Max. forming area 350X220mm Air pressure 0.5-0.8MPa
Max. paper area 350X220mm Air flow 0.5M /min
Max depth 45mm  (can be ordered) Power supply 12kw
thickness/width 0.15-0.5mm/200-350 Main motor power 1.5kw
Packing material PVC/PET/PS etc. weight 1800Kg

Quick-wear parts
Name Model quantity
Tray sucker Dia 10mm 3
Paper sucker Dia 32mm 6
Heat sealing plate 350X200 1

Mould list
Name Material Note
Forming mould Aluminium alloy Thermoforming or post forming
Cutting negative mould Cr12 Heat treating HRC50-52
Cutting positive mould Cr12 Heat treating HRC58-60
Guiding bush Q235A Carbonization HRC 58°-60
Steel ball set Brass + roll ball
pillar GCr15 Heat treating HRC58-60

PVC-Papercard Packing Battery Blister Shape Package Machine with Disk Table
PVC-Papercard Packing Battery Blister Shape Package Machine with Disk Table
