Fabric and Sheets Automatic Cloth Cutting Machine Industrial Fabric Cutting Machine Fully Automatic Garment/Textile/Fabric Cutting Machine
$52000.00 /set
Stock: 1000set
Send Inquiry
Seller Support:
Trade Assurance — To protect your orders from payment to delivery
Product Details
Transaction Comments
:
Basic Info
  • Model NO.: TMCC-1725/2025/2225M
  • Condition: New
  • Type: Tmcc-1725/2025/2225m
  • Cutting Style: Straight Knife up-Down
  • Softerware: Automatic Cutting System Copyright
  • Weight: 2100kg/2200kg/2400kg
  • Compressed Air: 0.55MPa 160L/Min
  • Transport Package: The Standard Package Is Plywood Packages(20′ Fr)
  • Origin: China
  • Certification: CE, ISO9001: 2000
  • Name: Fabric and Sheets Automatic Cloth Cutting Machine
  • Cutting Thickness(After Vacuum Suction): Max50/70/90mm(According to The Cloth)
  • Cutting Accuracy: ≤±1mm
  • Cutting Speed: 0-50000mm/Min
  • Size(Length,Width,Height): 5760*2610*1500/5760*2910*1500/5760*3100*1500
  • Trademark: TIMING
  • Specification: 5760*2610*1500/5760*2910*1500/5760*3100*1500
  • HS Code: 8405100000
Product Description
Fabric and Sheets automatic cloth cutting machine Industrial Fabric Cutting Machine Fully Automatic Garment/Textile/Fabric Cutting Machine

Product Application:
Cutter markets suitable for  widely industly ,for instance : leisure fashional suits,children's  garments,suits,
knitting casual/leisure  suits,underware,swimsuit,corsage,seat cushion,massage chair,yacht/houseboat seat,shoes,cat,cold protective clothing,golf bag,handbag,home textiles,cow-bag,sleeping bag,tent, apparel,
automotive, and furniture and soft fabric as well as other industries.

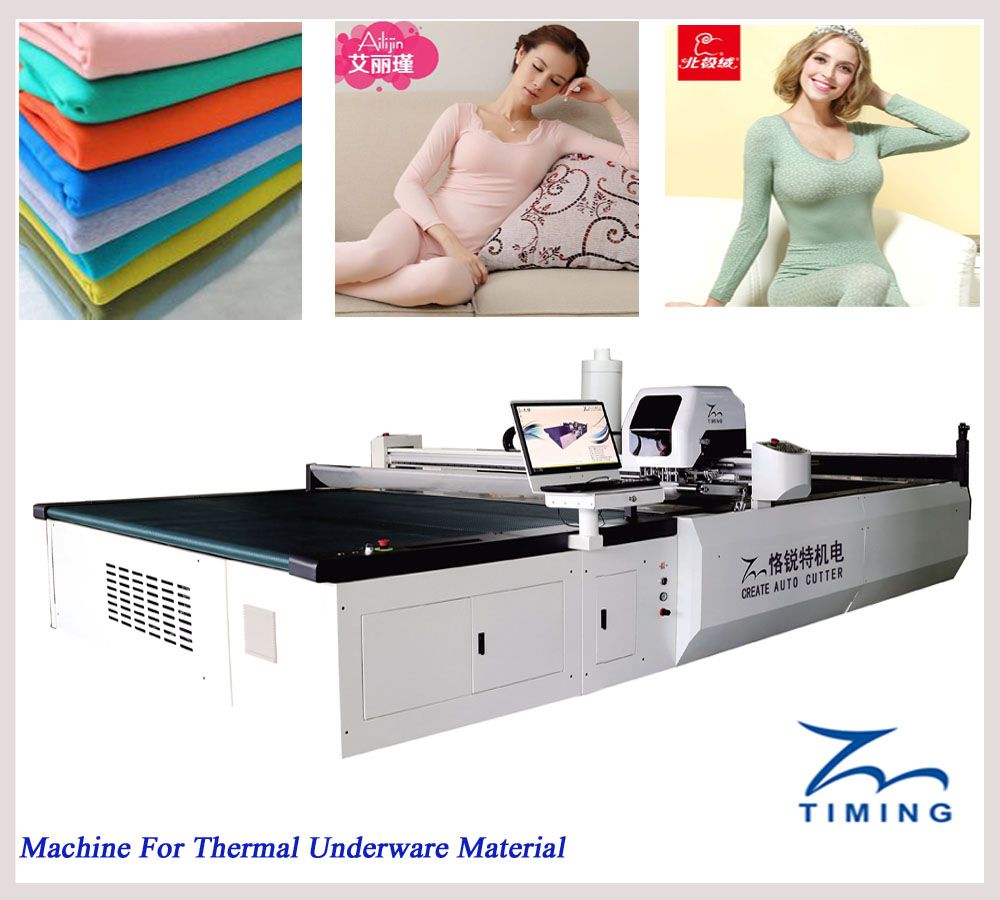

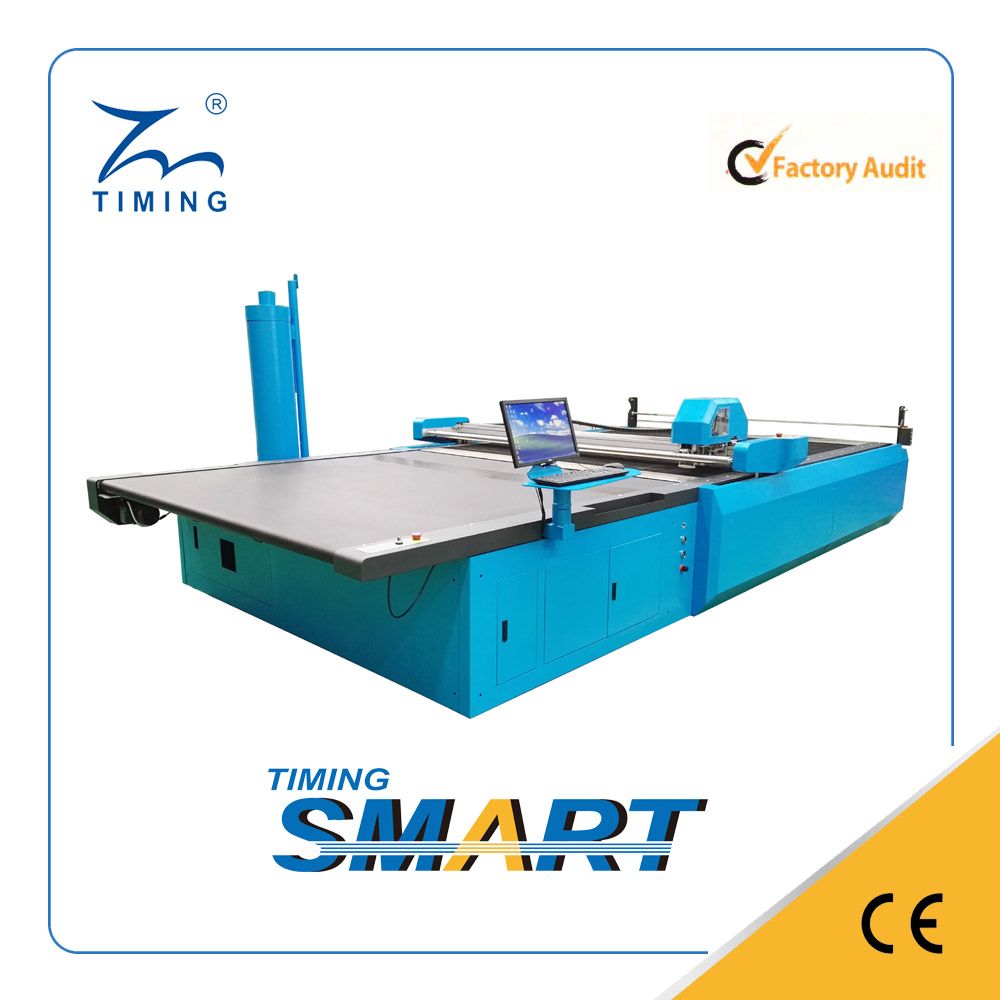

Machine Picture:
Fabric and Sheets Automatic Cloth Cutting Machine Industrial Fabric Cutting Machine Fully Automatic Garment/Textile/Fabric Cutting Machine
Machine Parameters:
Type TMCC-1725/M TMCC-2025/M TMCC-2225/M
Cutting area 1700*2500 2000*2500 2200*2500
Cutting speed 0-50000mm/min
Cutting thickness(after vacuum suction) max50/70/90mm(according to the cloth)
Cutting style straight knife up-down
Cutting accuracy ≤±1mm
Softerware automatic cutting system copyright
Power supplier AC380V/50HZ
Weight 2100KG 2200KG 2400KG
Size(length,width,height) 5760*2610*1500 5760*2910*1500 5760*3100*1500
Custermization about length, width,s trength is acceptable

Specifications:
Important Standards Size:
After vac-sorb Cutting thickness: 5cm 7cm 9cm
C Model    effective cutting width(mm):   1600  1700  2000  2200  2500
(multil layer effective cutting length(mm):  2000 2500  3000  3300
After vac-sorb Cutting thickness: 3mm    ( according to the material and decided it)
S Model       effective cutting width(mm): 900mm
(singlelayer)    effective cutting length(mm): 9000mm

 Main Features:
 * Computer design, automatic typesetting, save original materials.
  * Computer controlled and automatic cutting, save the human resource, mass production.
  * Support many kinds of formats, direct open general dress design format, typesetting software.
  * The unique algorithm and motion control technology, realized seamless between straight line and arc.
  * High cutting accuracy, self-design of automatic sharpen cutter, high quality of cutter makes life longer.
  * No need print out, save the typesetting, with high repeated utilization, plate marking management is convenient.
  * Easy to change the spare part, and lower cost;
  * Nice automation, easy to operate.

Part Picture:
Fabric and Sheets Automatic Cloth Cutting Machine Industrial Fabric Cutting Machine Fully Automatic Garment/Textile/Fabric Cutting Machine

Machine features

1>. Computer design, automatic typesetting, save original materials.

2>.Computer controlled and automatic cutting, save the human resource , mass production.

3>. Support many kinds of formats ,direct open general dress design format ,typesetting software .

4>. The unique algorithm and motion control technology, realized seamless between straight line and arc.

5>.High cutting accuracy ,self-design of automatic sharpen cutter ,high quality of cutter makes life longer .

6>.No need print out ,save the typesetting ,with high repeated utilization ,platemakring management is convenient

7>.Easy to change the spare part ,and lower cost ;

8>.Nice automation ,easy to operate .


Sample  Cutting Show:
Fabric and Sheets Automatic Cloth Cutting Machine Industrial Fabric Cutting Machine Fully Automatic Garment/Textile/Fabric Cutting Machine

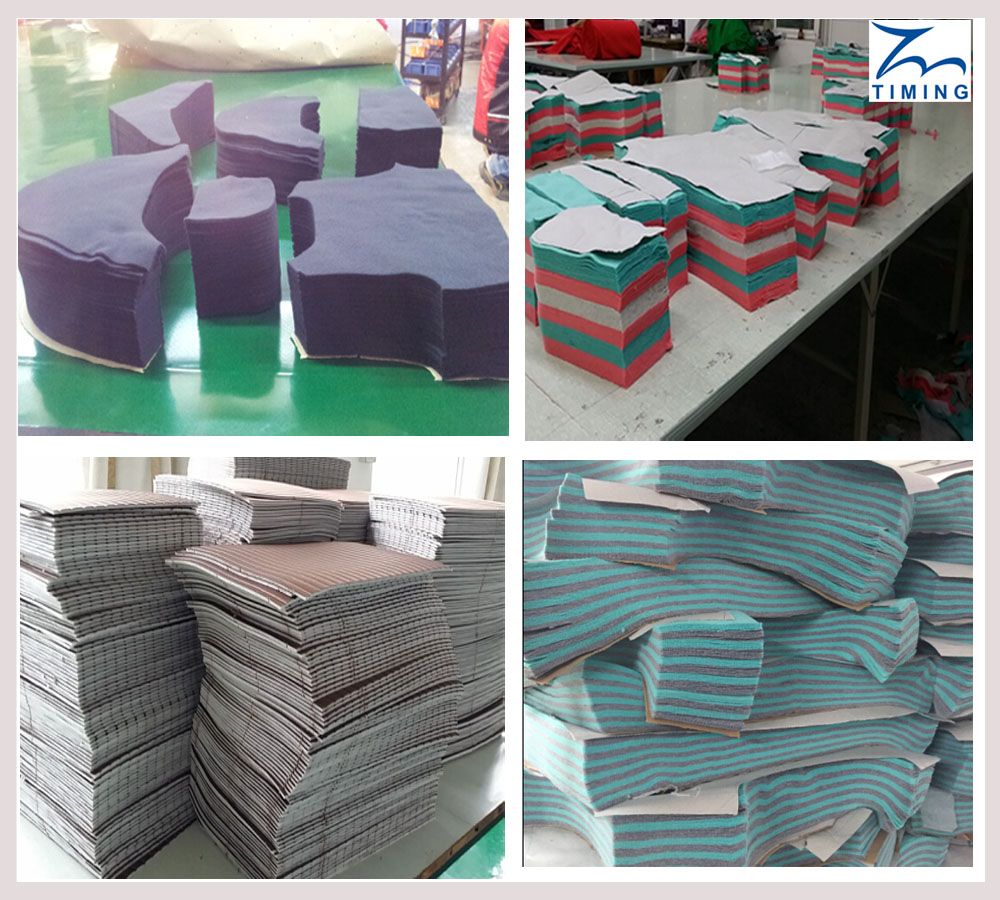

Sample  Picture:
Fabric and Sheets Automatic Cloth Cutting Machine Industrial Fabric Cutting Machine Fully Automatic Garment/Textile/Fabric Cutting Machine
Certifications
Fabric and Sheets Automatic Cloth Cutting Machine Industrial Fabric Cutting Machine Fully Automatic Garment/Textile/Fabric Cutting Machine
Welcome to contact me for moreinformation!
