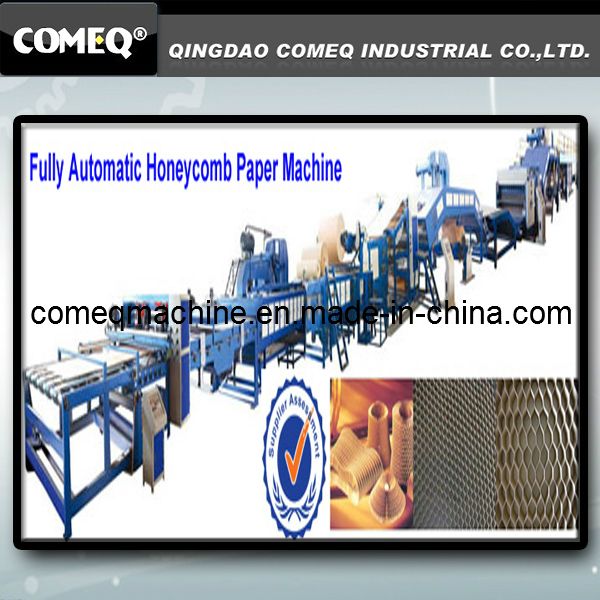

Automatic Honeycomb Paper Core & Paperboard Making Machine

$100000.00 /piece


Stock:	1000piece

Send Inquiry

Seller Support:

Trade Assurance — To protect your orders from payment to delivery

Product Details

Transaction Comments

Basic Info

Model NO.: ZDFW-1600
Usage: Packing Paper Machine, Packing Products
Computerized: Yes
Transport Package: Seaworthy Package

Process: Finishing Process Machine
Automatic Grade: Automatic
Trademark: COMEQ
Origin: China

Product Description

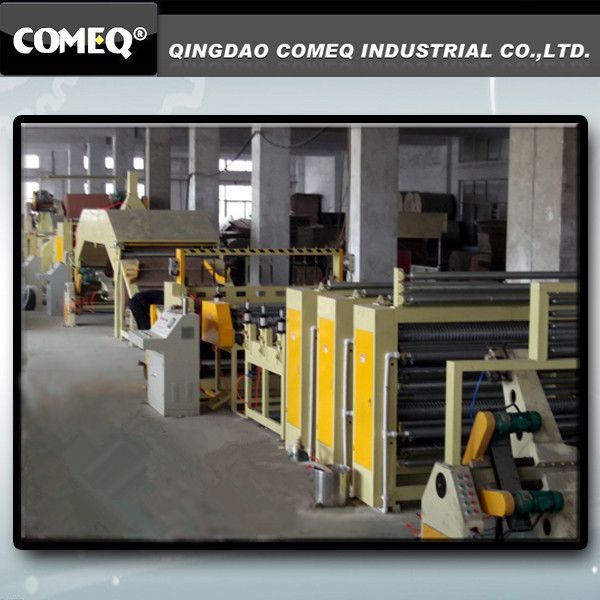

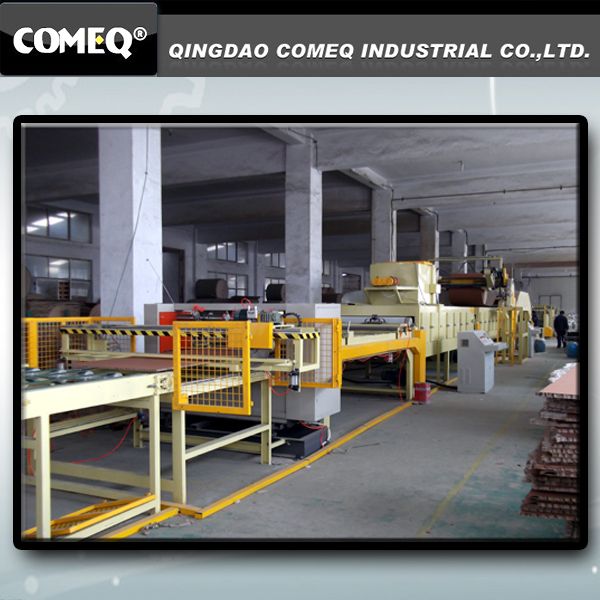

Automatic honeycomb paper core & paperboard production line is fully automatic system, which is producing endless honeycomb paper core and required honeycomb paperboard.

Automatic Honeycomb Paper Core & Paperboard Making Machine

Main Features:
(1). advanced technology, high degree of automation, low dissipation, good usage of honeycomb paper board and low labor intensity
(2). completely computer control, touching screen operation and combination of machine, optic-electric which makes machine more stable and reliable.
(3). rational design applied to realize high yield product, high usage of raw material and pleasant working environment without dust
---just only 2-3 workers needed in the whole producing process which realizes real completely automatic production and cost efficiency.
process flow: paper loading in multi rollers---gluing---laminating---drying---cross-cut---auto gathering and transmission

Main technical parameter:

Model	ZDFW-1600
Max width of paper roll for core making	≤2000mm
Max. width of paper core (after stretching)	1600mm
Max. Width of paperboard	1600mm
Cutting speed for honeycomb core	450-450times cut/min for thickness less than 3cm 220-350times cut/min for thickness 3-8cm
Side length of honeycomb	4,6,8,9,10….60mm
Production capacity	6-25m/min
Cutting thickness for honeycomb core	6-100mm
Max thickness of card board	6-100mm
Cell Size in line	2(TWO) cell size as choice
Wastage	0-2%
Glue	Starch Glue or White emulsion(PVA)
Suitable Core paper	100-160gsm
Suitable board surface paper	Over 160gsm
Machine Weight	55tons
Compressed Air	0.6MPa, output: 0.8cbm/min, capacity:≥1cbm
Heating method	electrical heating and heated air circulation
Workers	2-3persons

Mainly Including of:
1. Electric Shaftless Paper Roll Stand                                   3sets
2. Paper Roll Trolley with Track                                        6sets
3. Glue Smearing Device                                                  2sets
4. Laminating Device                                                         1set
5. Core Paper Heating and Forming Device                  1set
6. Face Paper Gluer                                                          1set
7. High Speed Paper Core Cutter (continuously)         1set
8. Paper Core Conveying and Stretching Device         1set
9. Paper Core Heating and Forming Machine             1set
10. Electric Shaftless Paper Roll Stand for paperboard lamination 1set/single lamination or 2sets/dual lamination
11. Dual Side Gluing Machine                                            1set
12. Paperboard Heating and Press Machine (1)                     1set
13. Cooling Device                                                                1set
14. Paperboard Heating and Press Machine (2)                     1set
15. Cooling Press and Conveyor                                        1set
16. Paperboard Slitter                                                           1set
17. Paperboard Transverse Cutter                                      1set
18.Paperboard Conveying Belt                                           1set
19. PLC control system                                                         1set
