10 Layer PCB Circuit Board with BGA and Impedance Control

Add to wish list

+ Add a New List

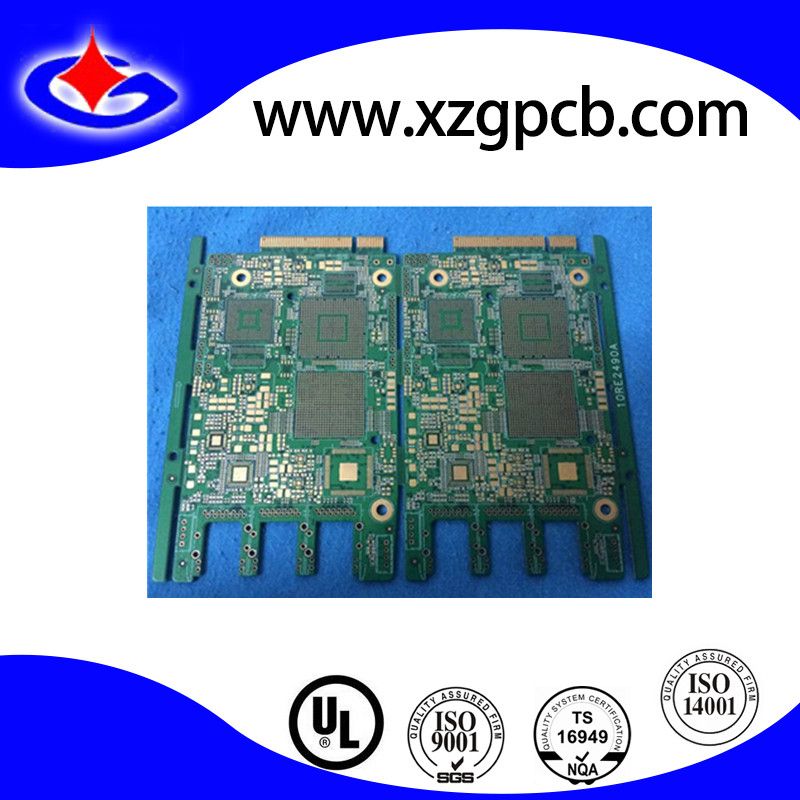

10 Layer PCB Circuit Board with BGA and Impedance Control

$0.25 /piece


Stock:	1000piece

Send Inquiry

Seller Support:

Trade Assurance — To protect your orders from payment to delivery

Product Details

Transaction Comments

Basic Info

Model NO.: WBPN1033AO
Dielectric: FR-4
Application: Computer
Mechanical Rigid: Rigid
Base Material: Copper
Brand: Xzg
Solder Mask Colour: Green
Trademark: XZG
Specification: IPC-Class 2
HS Code: 8534009000

Type: Rigid Circuit Board
Material: Fiberglass Epoxy
Flame Retardant Properties: V0
Processing Technology: Electrolytic Foil
Insulation Materials: Epoxy Resin
Demension: 46*136mm
Silkscreen Colour: White
Transport Package: Vaccume Package
Origin: Guangdong, China

Product Description

Specifiction:

layer:10 layer
Material:Fr4 it170
TG value:tg170
board thickness:1.6mm
copper thickness:1.5oz
min BGA size:0.25mm
min line width and distance:4/4mil
min Hole size:0.2mm
surface treatment: gold finger +imersion gold

Why US:

UL (E246887), ISO9001, TS16949, ISO 14001 certified.
Turnover USD 50-100 million per year
25,000 sqm area,1100 staff
Mass Production from single to 20 layers
Special Material: ROGERS, Arlon, Taconic.etc.
Client: SAMSUNG, Skyworth, Malata, Midea.etc.

Capability & Lead Time:

Certificates(UL:E246887, TS16949, ISO14001, ISO9001):

Factory Tour:

Clients and Suppliers:

FAQ:

Q1:Are you a manufacturer or trading company?
A:XingZhiGuang is a PCB manufacturer, specialized in PCB for over ten years.

Q2:What kind of PCB file you need before production
A:Gerber, or files like PROTEL 99SE, PROTEL DXP, POWER PCB, CAM350.etc.
b. Dimensional Specifications
c. BOM List (only for PCBA)

Q3: How long will you send us quotation ?
A: After all files were sent, 2 to 8 hours as per your file.

Q4:What is your minimum order quantity?

A:Our MOQ is 1 PCS.

Q5: How to find you?
A: Please click the button "send" at the end of each page, or contact our sales on Trade Manage online!
