A: Production Description:

The dry mortar plant capacity is 5-100tph. It can be full automatic or semi automatic. The machine structure type can be

workshop type, series type or tower type. The machine cover space is 50-1000m². The whole set of dry mortar

plant include sand dryer, burning furnace, bucket elevator, screen, storage silo,screw conveyor, weighing system, mixer, packer, dust collector and control system.

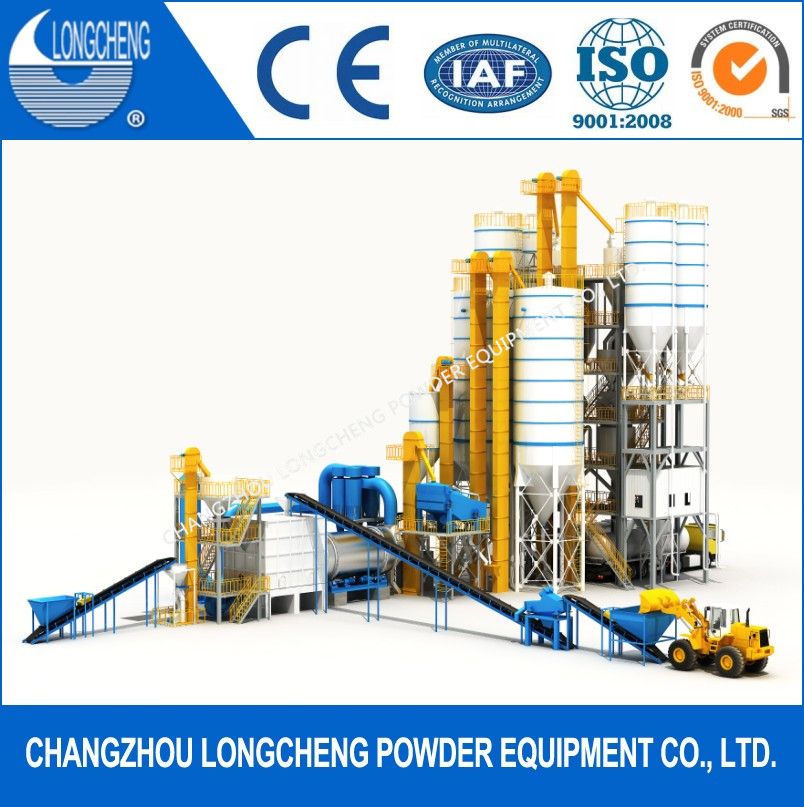

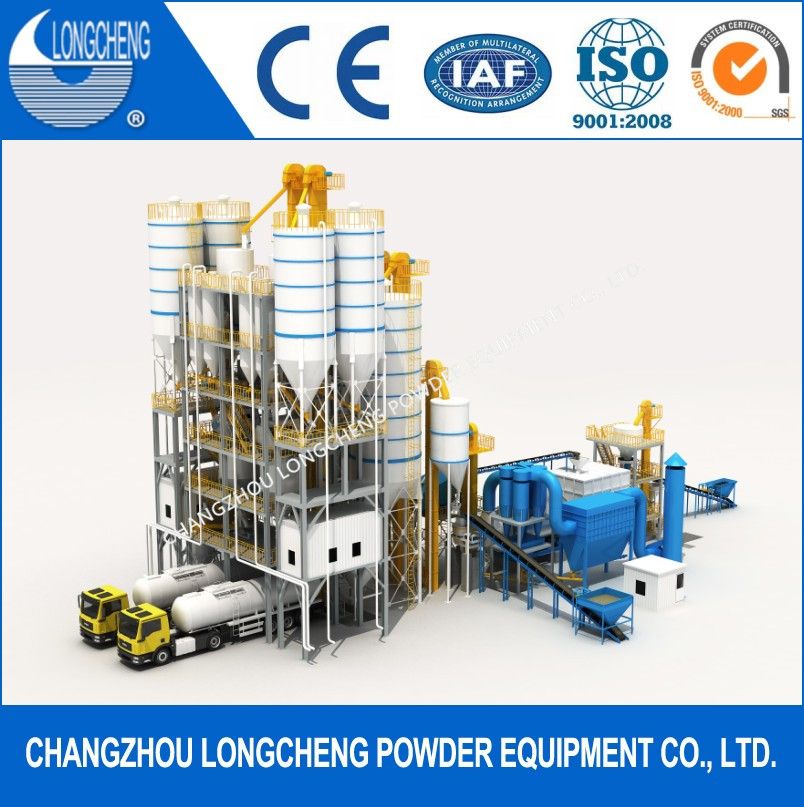

1.Whole dry dry mortar plant picture:

2.Sand dryer

3.Bucket elevator and storage silo

4.Weighing system

5.Mixer

6.Packer

7.Dust collector

8.Control system

B: Equipment components
Sand-drying systems composed with the belt machine, screening machine, crushing machine,  heating furnace, dryer, dust collector, electrical control and etc.; mortar mixing system consists of storage tank, batching scales silo, double shaft weightlessness mixer or coulter mixer, elevator, premixing silo, small silos, finished products tank, packages (bulk) equipment, dust, electrical control, framework and etc.

C: Technical Porcess
Drying system process:

• Fuel combustion heat released into the dryer in the effect of draft fan.
• Wet sand conveyed to the dryer by belt conveyor.
• The dry sand out of the dryer into the linear vibrating screen for screening by bucket elevator, sieved dry sand by bucket elevator and the selector valve, respectively, yellow sand and coarse sand tank standby.
• Exhaust fumes and smokes produced by the drying process is drawn into a cyclone and then to the pulse bag dust, dust and exhaust fumes after treatment be discharged with national standards.
• Sand drying line controlled by IPC automatically (manually), the dynamic display the process.

Mortar mixing system process:

• The materials are sent to the respective storage tank by bucket elevator or screw conveyor.
•  When required metering, the valve of the storage tank automatically open, and the raw material into the metering scale, according to preset program closes pneumatic valve under the silo, measurement completed.
• The pneumatic valve under the metering scale open, the material falls into mixer and begins to mix.
•  After mixing, the mortar conveyed into the finished product silo, finished mortar through the sub-feeder, can be sent to the finished bulk machine, bag packaging machine or product storage tank.

D:Equipment classification
Modular production equipment: designing according to the manufacturer's plant and scale of investment. Low cost, reasonable process. Can be configured automatic measurement and the computer operating system.
Tower Production equipment: The type of production line system from top to bottom arranged by function, according to raw material storage system, batching systems, coulter mixer, bulk and packaging system.
E:Equipment advantages
1, Wide range usage: the device is able to meet the different production requirements of dry mortar. Such as: masonry mortar, plastering mortar, polymer mortar, polystyrene particles insulation mortar and other dry mortar.
2, Small investment: for wall insulation and decorative mortar production projects with a small investment, quick, short time to recover the cost. And avoid the machine is idle and waste of resources caused by excessive investment.
3, Simple application: This equipment takes less area, low power consumption, small working space, less preparation capacity, and easy operation.
4, Long life: the materials of vulnerable parts all used high-strength wear-resistant steel. Greatly extend the life.
5, Automatic computer control, intelligent identification, passive measurement, high sensitivity, stable performance, strong anti-interference ability, accurate measurement.
F: Application
Applied in chemical, pharmaceutical, pesticides, dyes, petroleum, metallurgy, building materials and other powder and powder (solid - solid), powder and liquid (solid liquid) mixing, reaction, drying, cooling. Be installed outside the cylinder jacket, steam - water dual - use, but the heating or cooling materials.

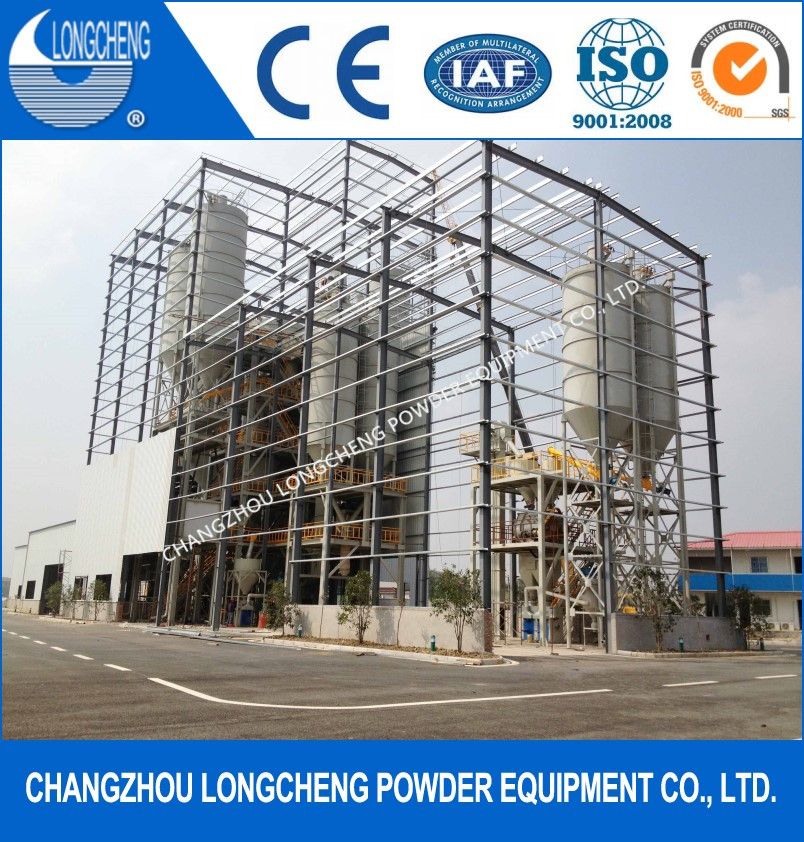

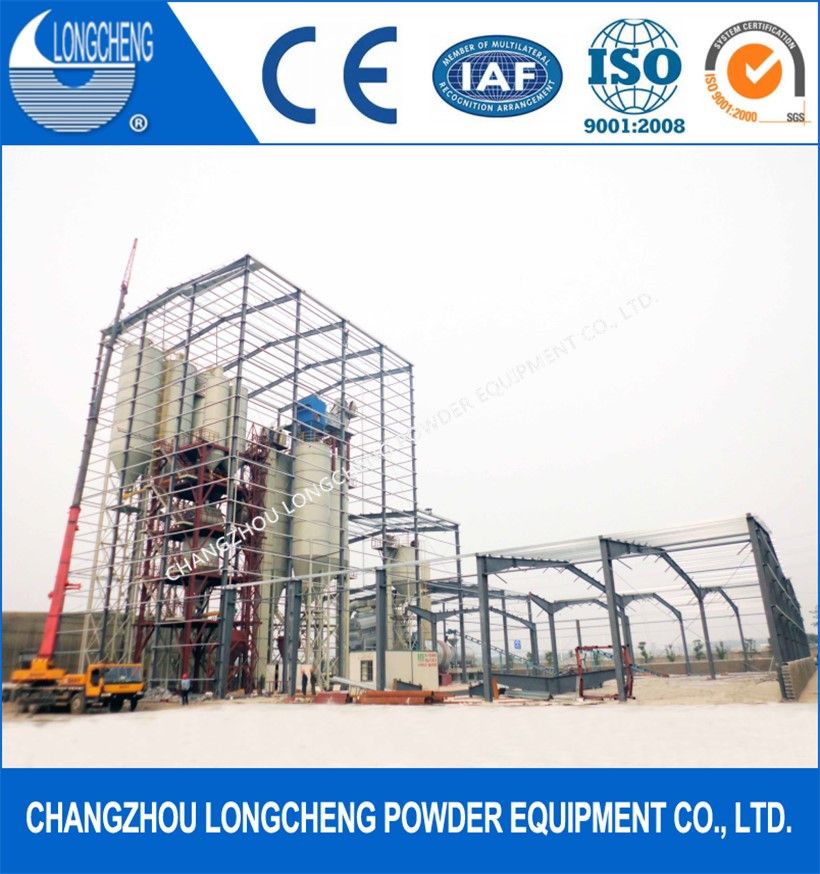

G: Factory Scene

H: Why Choose Us ?
♦  Factory
We have our own factory and skilled workers, rich-experienced R&D and professional service team.
♦  Quality and Price
Our quality is built on good quality material, imported from Japan, Germany etc. We have passed ISO9001,CE, GMP. Our price is based on the quality, and we will give reasonable prices to every customer.
♦  Product Range
We can provide a wide range of products for your One-stop sourcing. Also we can customize according to your specific requirements.
♦  After-sales Service
We can give you one years after-sales warranty, we can also send our engineer to you factory to install this equipment and train your staff, but the Buyer should pay the round air ticket cost and arrange the hotel accommodation as well as the means for Seller's engineer. We will send some free set of spare parts for the change.
♦  Pre-sales Consultation
Please contact us before you place orders, or need any technical support or guidance.
