10-Layer Multilayer 3oz PCB for Power Supply
$0.15 /piece
Stock: 1000piece
Send Inquiry
Seller Support:
Trade Assurance — To protect your orders from payment to delivery
Product Details
Transaction Comments
:
Basic Info
  • Model NO.: M10C14265
  • Dielectric: FR-4
  • Flame Retardant Properties: V0
  • Processing Technology: Electrolytic Foil
  • Insulation Materials: Epoxy Resin
  • Brand: Xzg
  • Board Thickness: 3.6mm
  • Surface Finishing: Lead Free Hal+Enig
  • Silkscreen: White
  • Min Hole Size: 0.4mm
  • Transport Package: Vacunm Packing
  • Origin: Huizhou
  • Type: Rigid Circuit Board
  • Material: Rogers 4535
  • Mechanical Rigid: Rigid
  • Base Material: Copper
  • Model: FR-4
  • Tg Value: Tg180
  • Copper Thickness: 3oz
  • Soldermask: Green
  • Min Line W/S: 4/4 Mil
  • Trademark: XZG
  • Specification: CE, RoHS, SGS
  • HS Code: 8534009000
Product Description

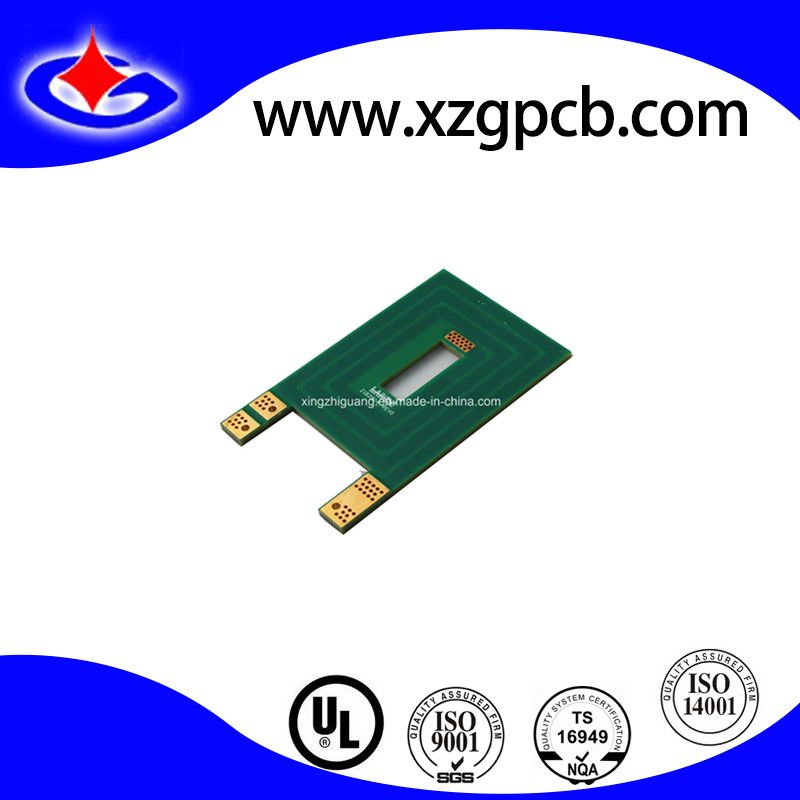

10-Layer Multilayer 3oz PCB for Power Supply
Specification:
Layer   10
Material FR4-TG 180
Board Thickness 1.6mm
Copper Thickness 3oz
Soldermask Green
Silkscreen White
Surface Finishing Lead Free HAL+ENIG
Min Line Width/Space 4/4 mil
Min Hole Size 0.4mm

Capability:
10-Layer Multilayer 3oz PCB for Power Supply

Lead Time:
10-Layer Multilayer 3oz PCB for Power Supply


Why US:
  • UL (E246887), ISO9001, TS16949, ISO 14001 certified.
  • Turnover USD 50-100 million per year
  • 25,000 sqm area,1100 staff
  • Produce from single to 20 layers
  • Special Material: ROGERS, Arlon, Taconic.etc.

FAQ:

Q: Files needed for quotation or place order?
A:     a. Gerber File
         b. Dimensional Specifications
         c. BOM List (only for PCBA)

Q: How long will you get our quotation?
A: After all files were sent, 2 to 8 hours as per your file.

Q: How to find us?
A: Please click the button "send" at the end of each page, or contact our sales on Trade Manage online!
