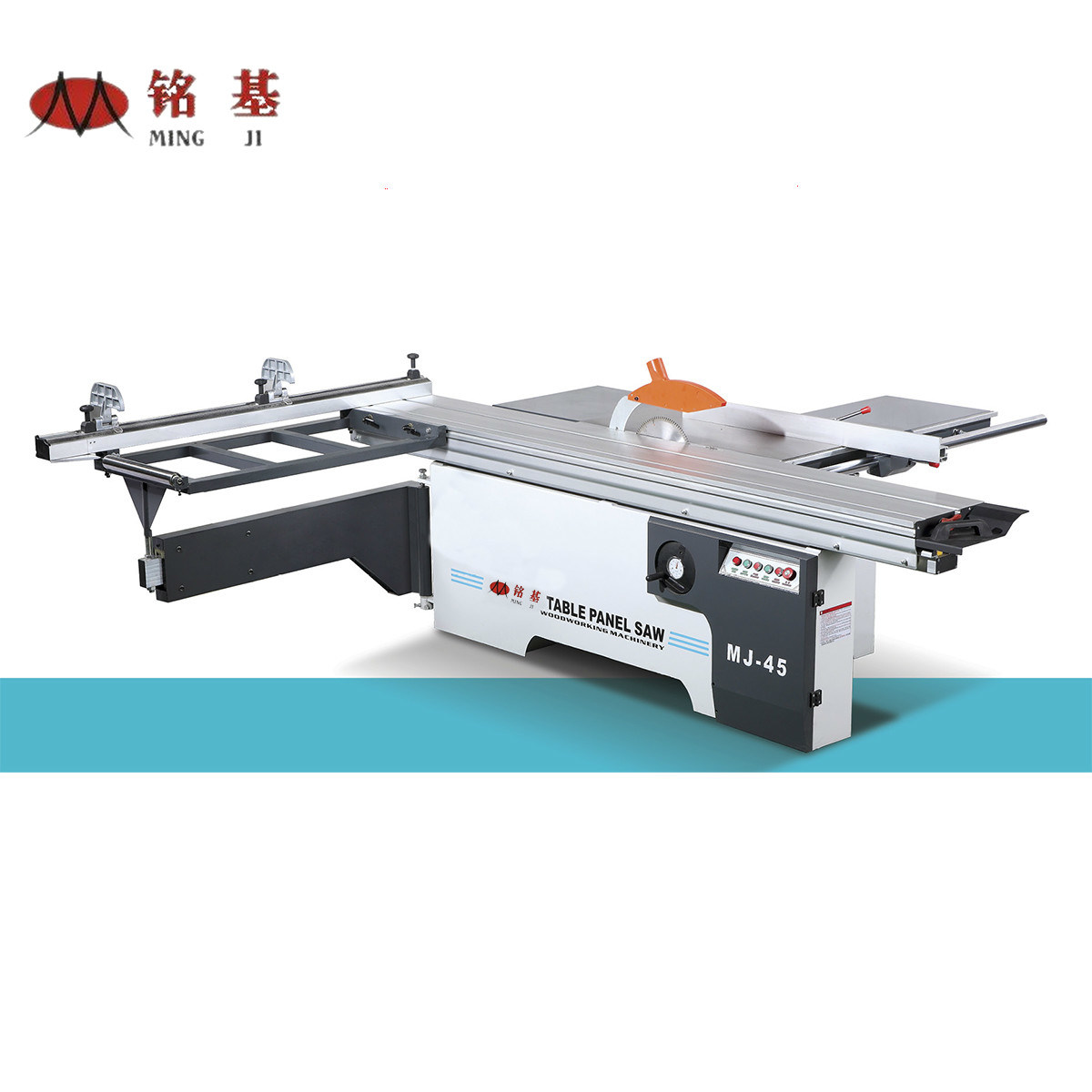

High Accuracy 45 Degree Sliding Panel Saw
$2200.00 /set
Stock: 1000set
Send Inquiry
Seller Support:
Trade Assurance — To protect your orders from payment to delivery
Product Details
Transaction Comments
:
Basic Info
  • Model NO.: MJ-45
  • Power Type: Manual
  • Controlling Mode: Artificial
  • Precision: High Precision
  • Customized: Non-Customized
  • Color: Iron Grey
  • Specification: max. cutting length: 2800mm/3000mm/3200mm
  • Type: Table Panel Saw
  • Layout: Horizontal
  • Automatic Grade: Manual
  • Certification: CE, ISO, SGS
  • Condition: New
  • Trademark: MING JI
  • Origin: China
Product Description
Application:

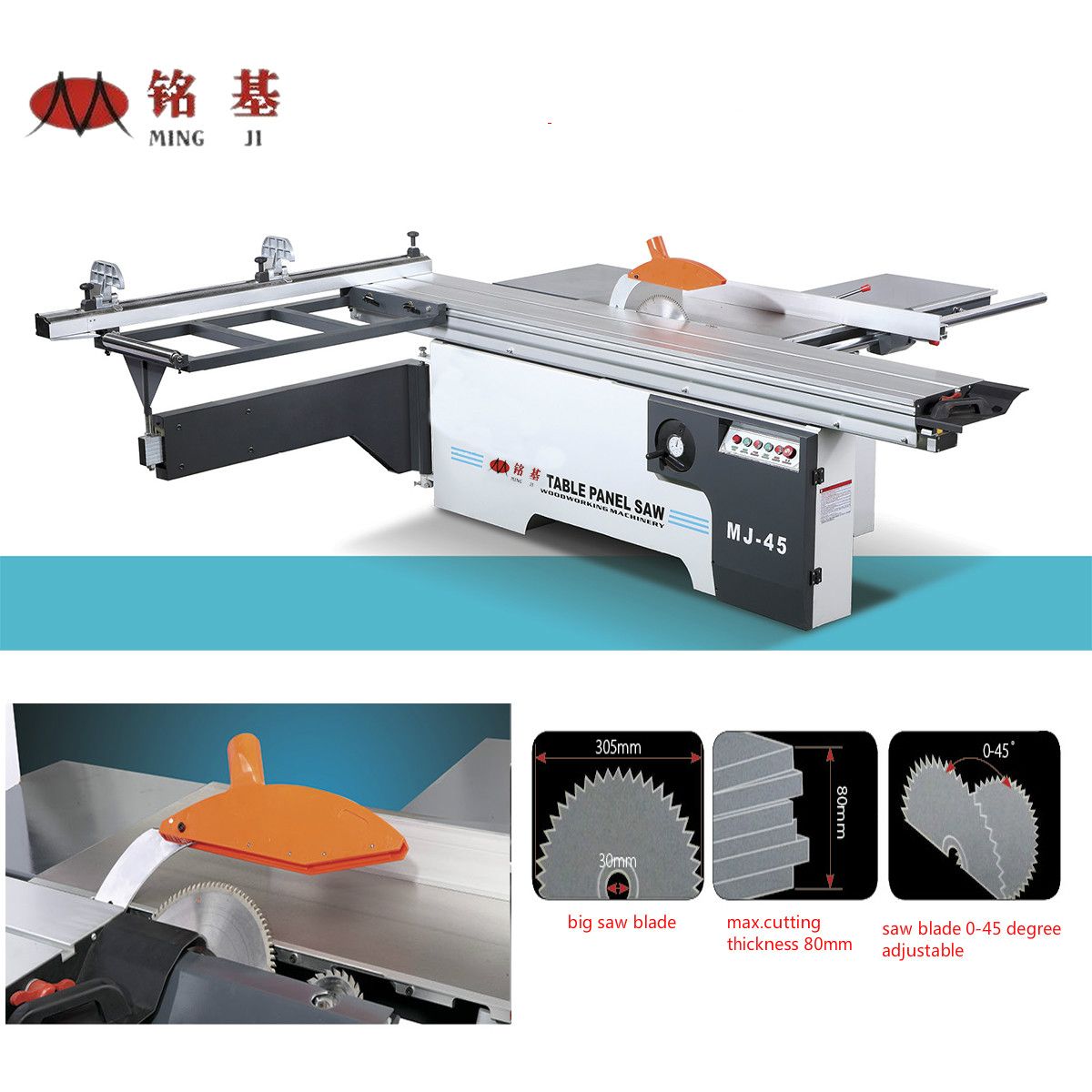

This sliding table saw machine is a basic machine for cutting wood panels. the max. cutting thicknss can be 2800mm, 3000mm, 3200mm or even longer. the saw blade can be adjustable from o° to 45°, also it can cut 90°, easy operated and high accuracy.


High Accuracy 45 Degree Sliding Panel Saw
High Accuracy 45 Degree Sliding Panel Saw

Technical Data:
max. cutting length 2800mm/3000mm/3200mm
sliding table width 375mm
max. cutting thickness 80mm
max. cutting thickness while 45° cutting 60mm
saw blade diamter 305mm
groove saw blade diameter 120mm
main saw motor power 4-5-5kw
groove sawl motor power 0.75-1.1kw
main saw rotate speed 4000-5000rpm/min
groove saw rotate speed 8000rpm/min
weight 800kg
Voltage 380V.50Hz, 3 phase


High Accuracy 45 Degree Sliding Panel Saw
