Vinyl Welding Equipment Hot Air Hand Tool

$199.00 /sets


Stock:	1000sets

Send Inquiry

Seller Support:

Trade Assurance — To protect your orders from payment to delivery

Product Details

Transaction Comments

Basic Info

Model NO.: triac s
Power: 1600W
Ceramic Heating Element: Kanthal Wire
Bearing: Imported From Japan
Accessories: Brush, Nozzle, Silicone Roller
Warrange: 12 Months Except Ceramic Heating Element
Transport Package: Carton Box or Tool Box
Origin: China

Voltage: 220-230V
Color: Green, Black
Gasket: Resist High Temperature, Imported From Japan
Body Material: PA66
Printing: Can Be Your Logo
Trademark: HEATFOUNDER
Specification: 1.65kg

Product Description

Vinyl Welding Equipment hot air hand tool

Hot air welder
Temperature controll	We use photocell to controll temperature inside.
Temperature switch	Outside of the gun there is temperature switch. And once the plastic body is above 135 degree,the whole circuit will be cut off.


Plastic material	At present,this plastic is one can resist the highest temperature. It can resist 280 degree.


Bearing	We use high temperature bearing manufactured in Japan.

Ceramic heating element	We use Swedish heating wire for ceramic heating element inside the hot air gun. And ceramic material is also good quality. It can resist high temperature 1650C.

TECHNICAL DATA:

ZX1600	ZX3400	1.Power cord
Voltage(V) :42 100 120 200 230 For 50/60Hz	Voltage(V) :200 230 For 50/60Hz	2.Main switch 3.Screw on the clamp
Power consumption(W) :960 1400 1600	Power consumption(W) :3400	4.Potentionmeter for temperature adjustment
Weight (kg) :1.3 with 3m cord	Weight (kg) :1.4 with 3m cord	5.Handle & Nozzle
Temerature :20-700 degrees Celsius,infinitely controlled		6.Air fillter
Air flow (1/min) :Max.230		7.Rubber stand
Air pressure (pa) :3000 (30mbar)after about 24 h operating time		8.Adapter tube
Size (mm):Customized		9.Heat protection tube

APPLICATION:

Welding of thermoplastic materials as well as single - ply flexible plastic and modified bitumen in the form of boards,tubes profiles,lining membranes,coated materials,films,foams,tiles and sheets.The following procedures are possible :Overlap welding ,welding with rod,with tape,butt welding and melt welding.
Heating - up for forming,bending and sealing of thermoplastic semi- finished materials and plastic granules.
Dry of water - damp surfaces.
Shrinking of heat shrink sleeves,films,tapes,solder sleeves,pre formd and moulded parts.
Soldering of copper pipes,solder joints and metal foils.
Defrosting of frozen water pipes.
Activating / Dissolving of solvent free adhesives and fusion adhesives.
Igniting of wood shavings,paper,coal or straw in furnaces.

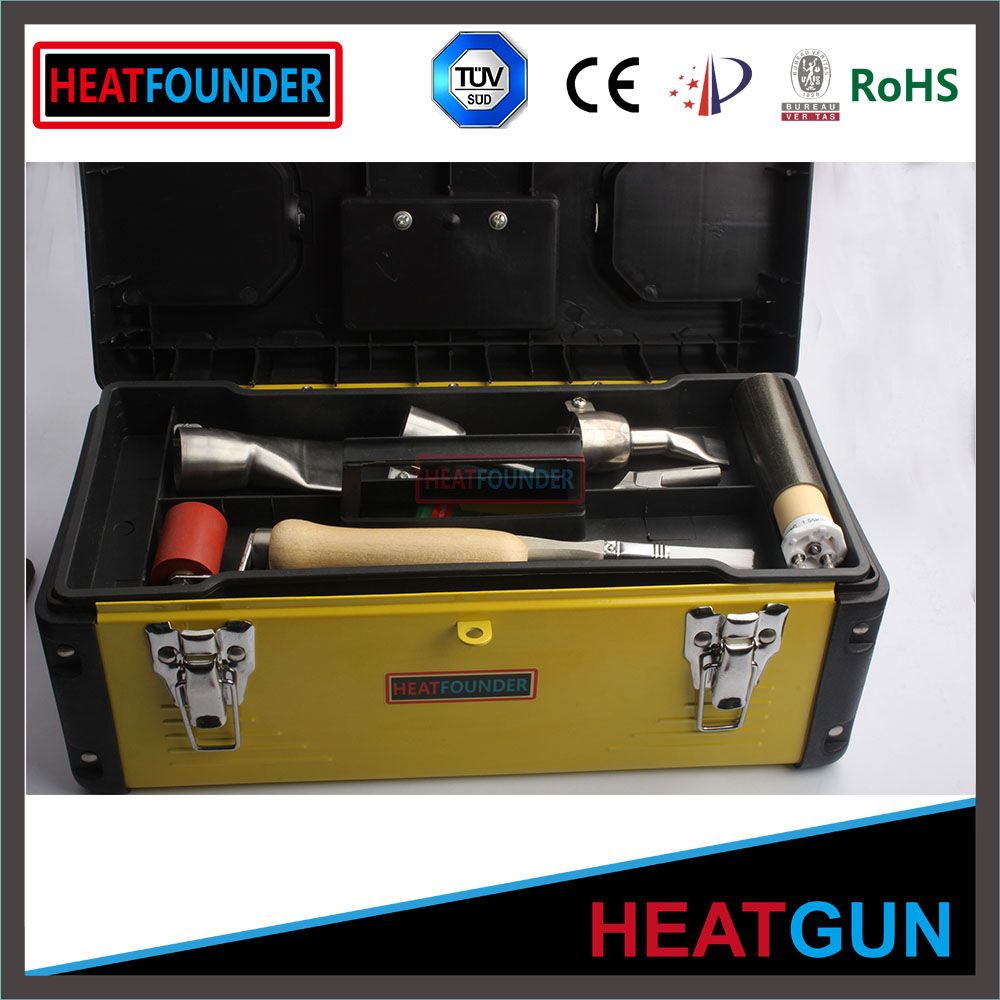

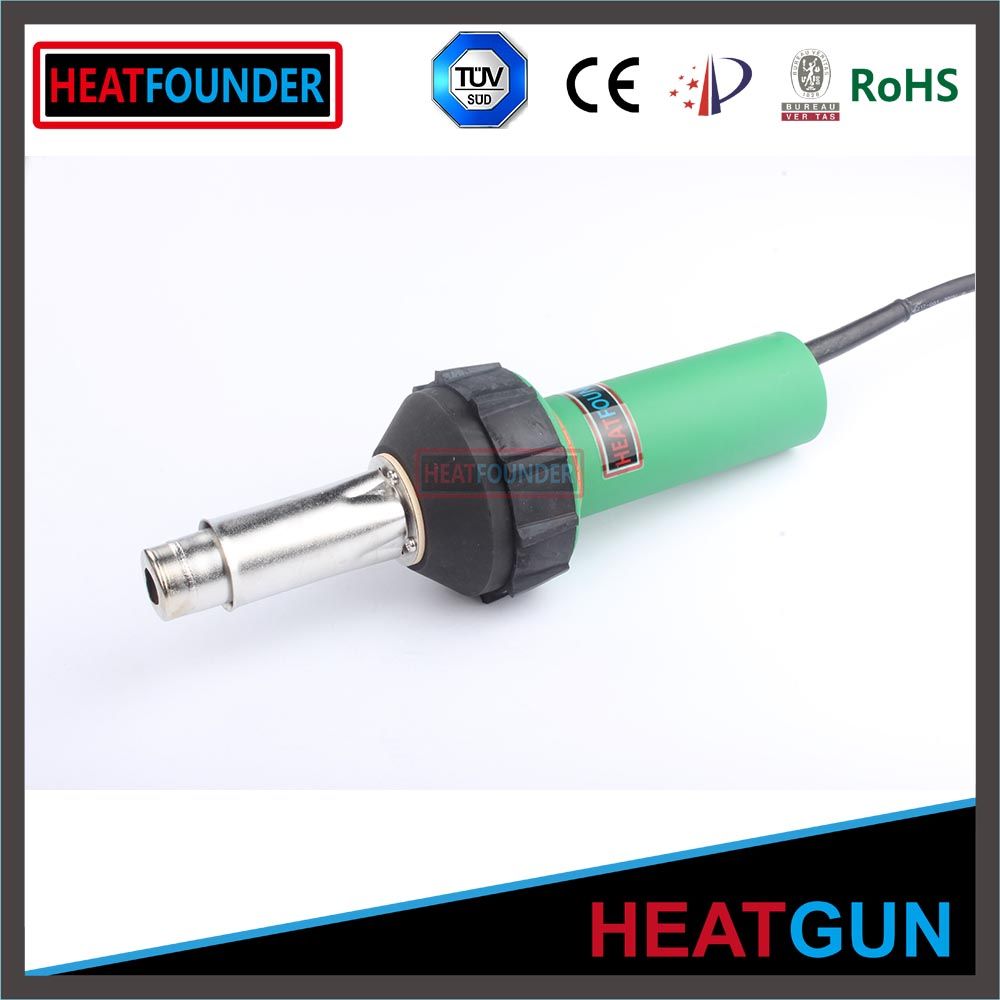

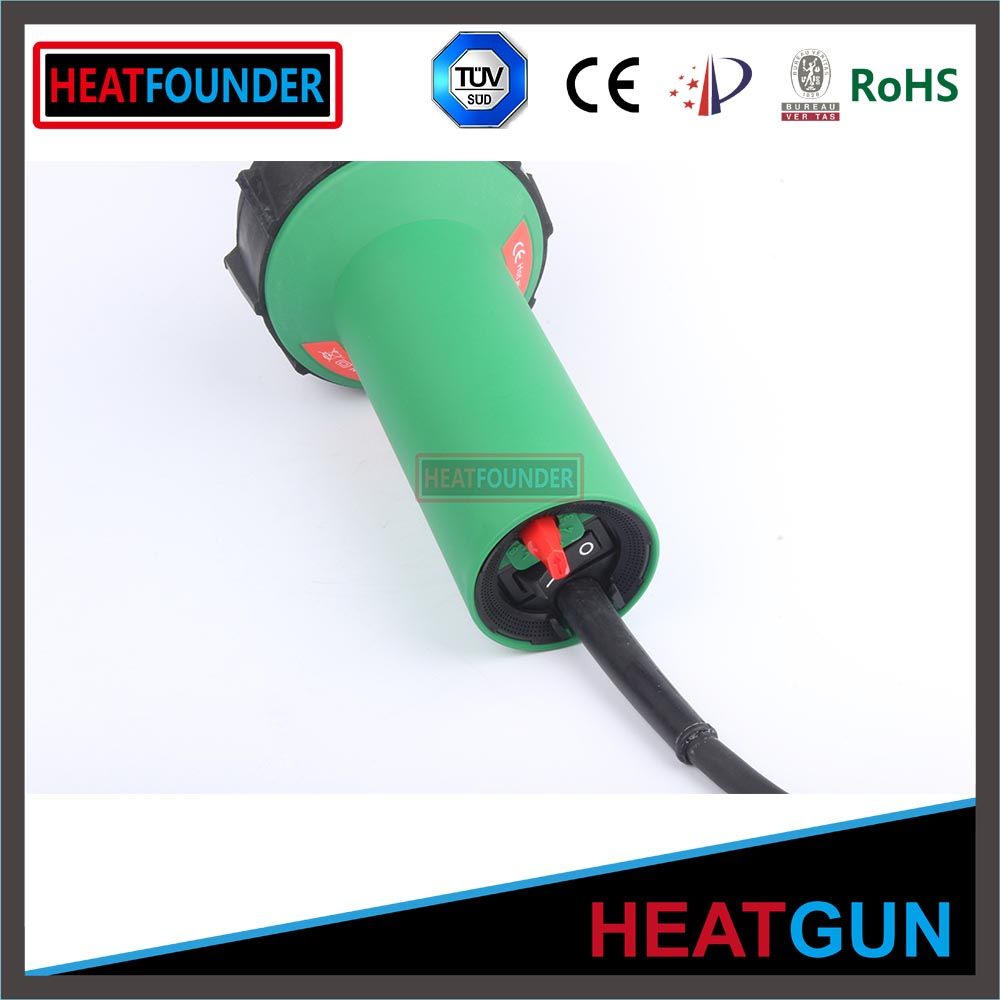

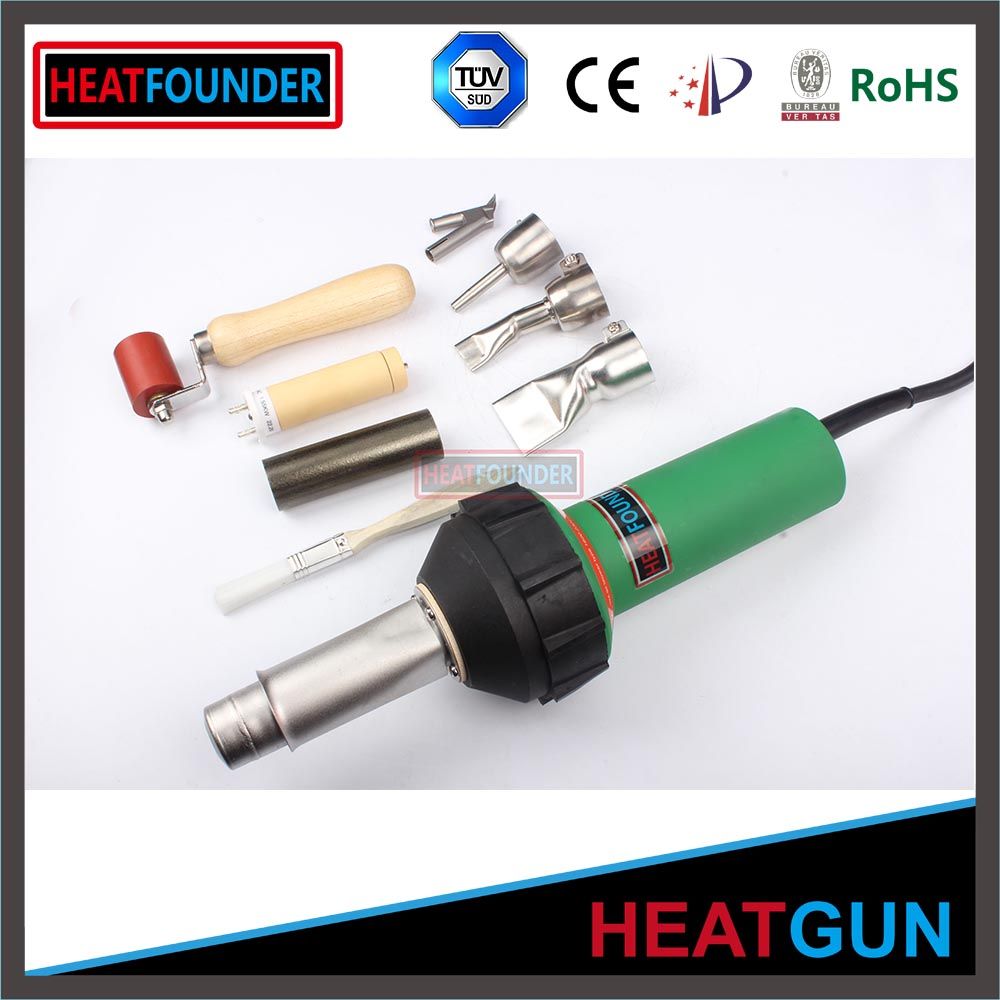

Detailed pictures:

Vinyl Welding Equipment Hot Air Hand Tool
