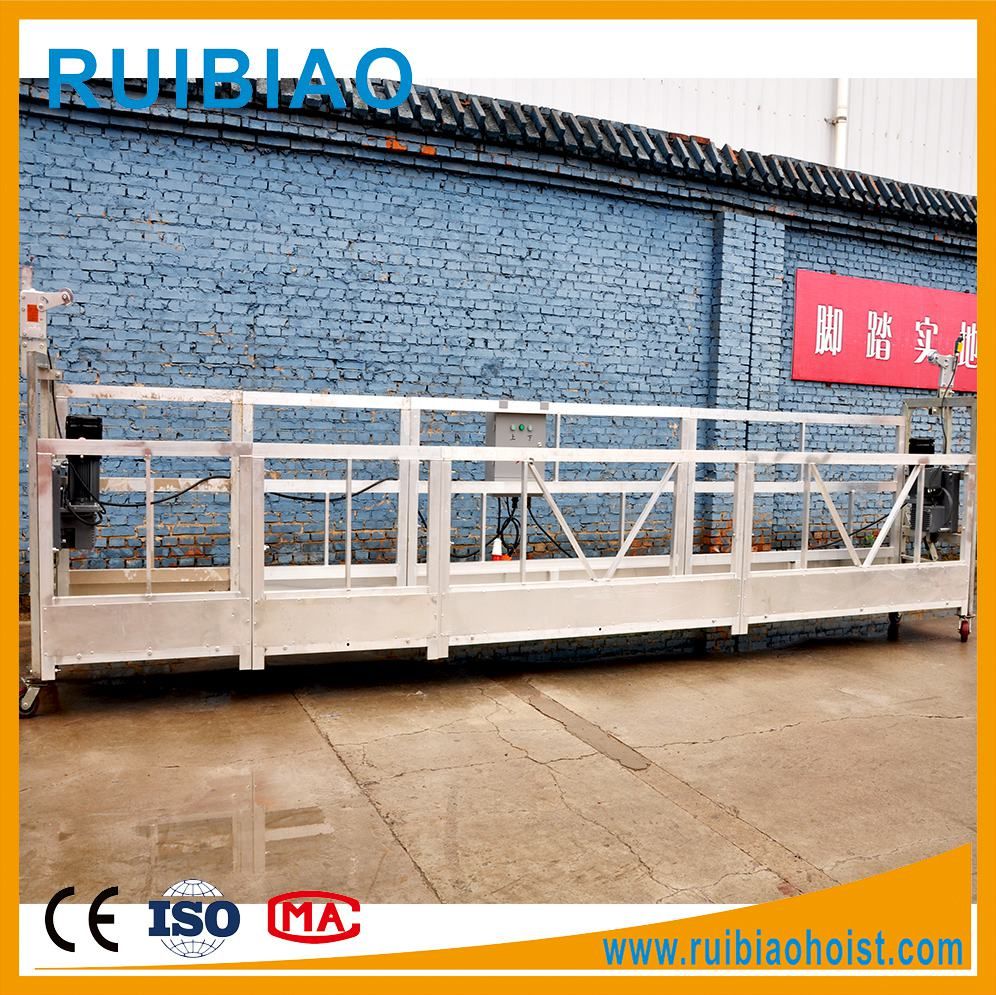

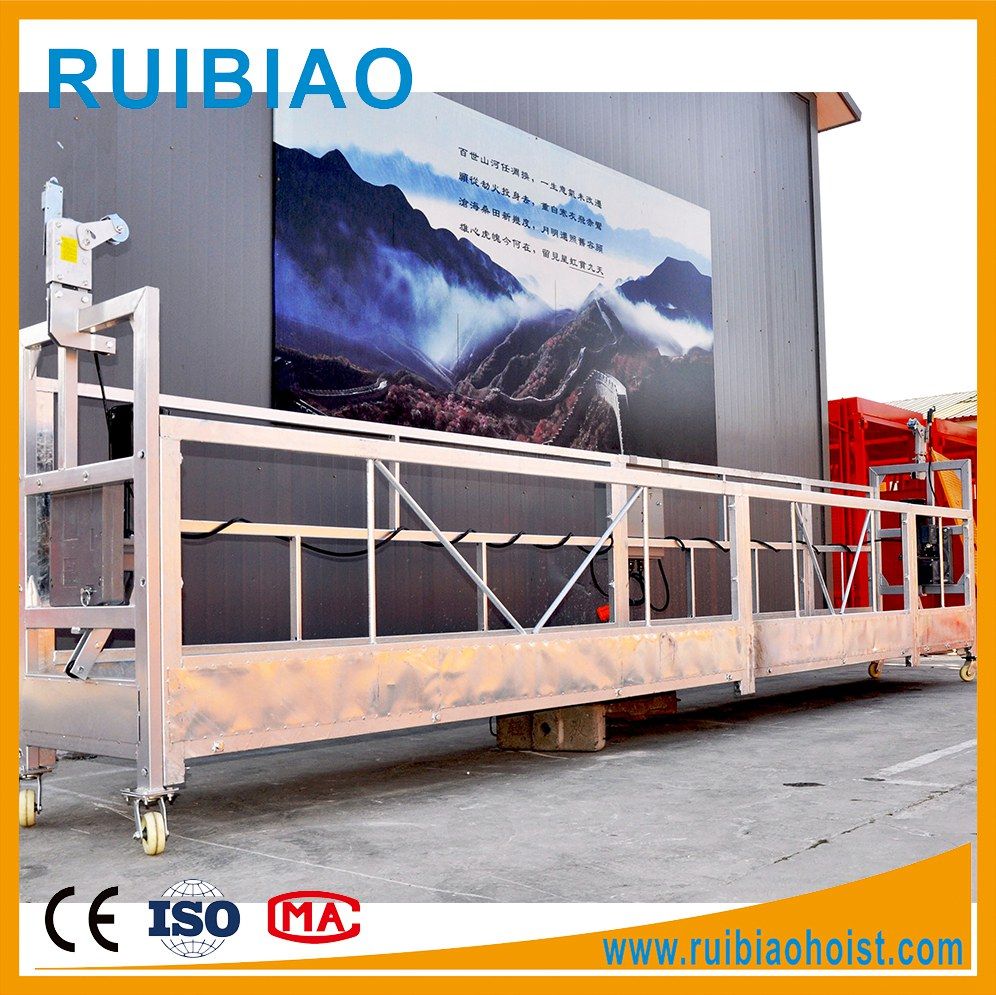

Cradle Aluminum Suspended Platform Zlp630 (suspended platform)
$1500.00 /sets
Product Details
Transaction Comments
| : | Basic Info
Product Description
      ZLP250, ZLP500, ZLP630, ZLP800, ZLP1000 Suspended Platform ZLP630 platform is intended for temporary applications for lifting people and their working equipment - at unlimited heights. The model perfectly suited to lightweight applications such as painting and decorating, refurbishing, jointing and repairs, windows cleaning etc. The complete system consists of the working platform equipped with two electric LTD hoists and the support wheels, suspended by means of steel wire ropes from a suspension structure. Safety systems To ensure safe operation without danger to personnel, the platform is fitted with the following safety devices: 1) Service brake incorporated in the LTD hoist. 2) Two fall arrest devices (Anti-tilt LSF safety lock) acting on the safety wire ropes. 3) Overload sensor incorporated in the LTD hoists according to EN 1808. (Option) 4) Two upper limit switches. 5) No power descent in case of power failure. 6) Emergency stop. 7) Phase controller. (Option) Technical Information The perfectly suited to lightweight applications such as painting and decorating, refurbishing, jointing and repairs, windows cleaning, ... The main para. Of ZLP630 suspended platform: 1) No power descent in case of power failure. 2) Emergency stop. 3) Phase controller. (Option) 4) Rated Load: 630kg 5) Lifting Speed: 9m/min 6) Voltage-3Phase: 380V/ (415V/220V) 7) Frequency: 50Hz/60Hz 8) Power: 1.5kw×2 9) Hoist: LTD63 10) Safety Lock: LSF308 11) Dia. of Wire Rope: 4×31SW+FC-8.3mm 12) Platform Size: (2×3)×0.76×1.45m 13) Weight of Suspension Jibs: 340kg 14) Weight of Lifting Part: Aluminum310kg/Steel 450kg 15) Counter Weight: 900kg Platform Suspension The different variants are to be distinguished by their suspension principles. Three different stirrups allow to choose the platform the best to your requirements (type of work, type of building, maximum loads, number of persons). End stirrup: Fitted at the ends of the platform. Advantages: The most economical and lightweight version, although showing extraordinary performances. "Frame" stirrup: Slipped over the platform like a "frame". Advantages: The ends of the platform and therefor the building corners are clear and can be easily accessed, exchangeable with the upper part of the end stirrup. "L" stirrup: Placed at the rear of the platform behind the workers. Advantages: The working surface is completely clear and the whole façade can be easily accessed. Anchoring Options The platform applies to all types of suspension which are manufactured according to the current standards and recommendations. The EN 1808 stipulates a safety factor of 3 for anchor points and suspension structures. Rigid offers a complete range of suspension structures which can be fitted on different types of roofs: the suspension jibs or the parapet clamp. In most applications, it is possible to use a system of mobile suspension jibs in the roof for the attachment of temporary suspended platforms. Double-Deck Platform The ZLP platform can be eily transformed in a double-deck platform using especially designed attachment rods.

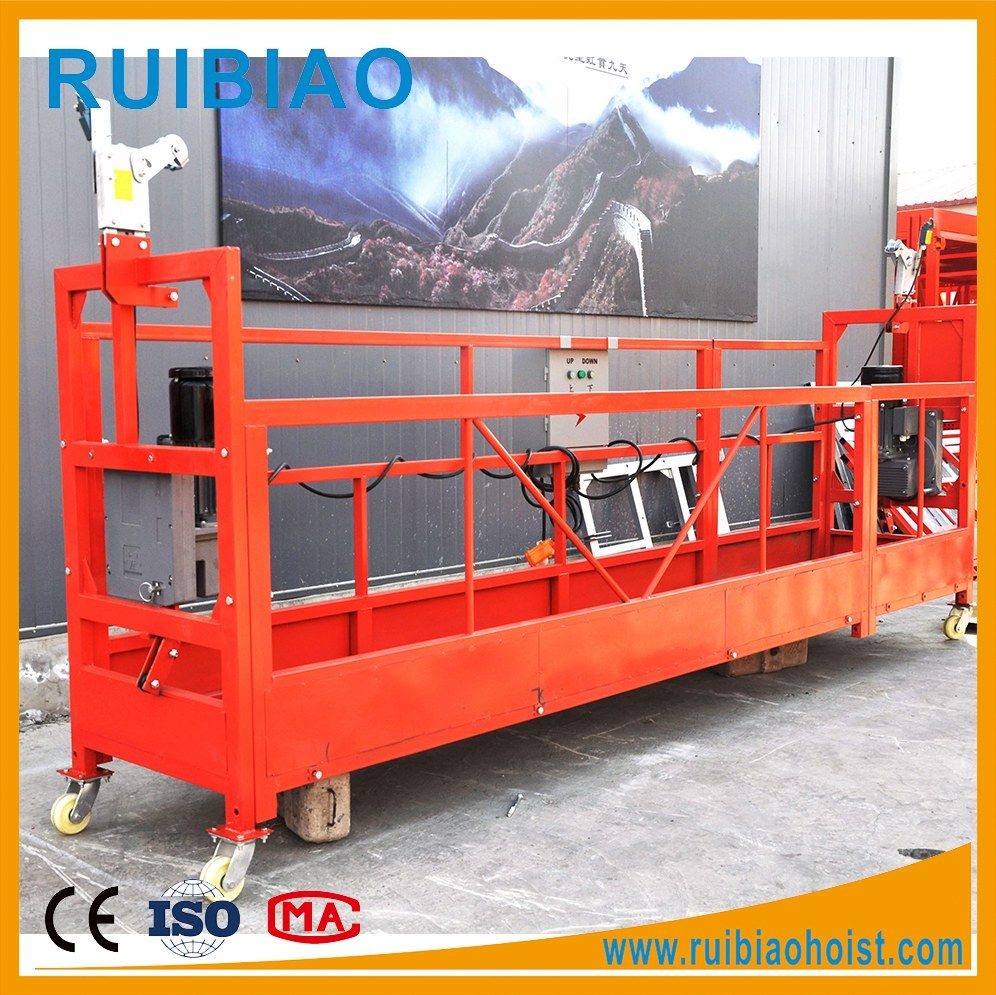

Factory in China ZLP500/630/800 Powered Suspended Platform/cradle/window cleaning equipment A. Introduction of ZLP Suspended Platform ZLP series suspended platform belongs to electrical-driven climbing and decorating machinery, mainly used to decorate, maintain and clean the external walls of high-level buildings and exterior construction. B. Features of ZLP Suspended Platform 1. Combination of the bottom platform 2. Convenient and reliable electric control system 3. Reasonable designed structure and Attractive appearance 4. The working height can be asjusted to customer need. 5.. The voltage and frequency can be changed according to different countries conditions. 6. The material of the suspended platform can be determined by customer: Steel material (finish treatment: power coated, hot dipping) or aluminum alloy material 7. Famous brand of galvanized stee wirel rope 8. The film of the ZLP Suspended platform is anti-corrosion( Steel material platform finish treatment is power coated or hot gavalnized could choosed; price will be different. ) C. Advantages of JIUHONG ZLP Suspended Platform 1. CE ISO international certificates. 2. One year guarantee time. 3. Special made can be accepted. 4. Factory direct sale. D. Technical Parameters of ZLP Suspended Platform
Common used models of ZLP630 and ZLP800
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
