Special Design with Patent Electric Pallet Truck Material Lifting Equipment
$3600.00 /piece
Stock: 1000piece
Send Inquiry
Seller Support:
Trade Assurance — To protect your orders from payment to delivery
Product Details
Transaction Comments
:
Basic Info
  • Model NO.: CBD20
  • Type: Powered Pallet Truck
  • Load Capacity: 1T - 5T
  • Load center: 500mm
  • Condition: New
  • Fork Demesion: 72*170*1220mm
  • Wheel Type: PU
  • Load Speed: 0.035
  • Battery Voltage/Rated Capacity(5h): 24V210A
  • Battery Size: 650*201*590mm
  • Transport Package: Pallets
  • Origin: Hubei, China
  • Cab Location: Not Adjustable
  • Power: AC Motor
  • Fuel: Electric
  • Lift height: 110mm
  • Drive Unit: Battery
  • Fork Width: 690
  • Drive Wheel Size: 230*70
  • Unload Speed: 0.048
  • Battery Weight: 190kg
  • Trademark: VSM
  • Specification: length: 1985mm, width: 722mm, overall height: 1330
  • HS Code: 8427900000
Product Description
CAPACITY: 2000KG
DEMENSION:1985*722*1330MM
FORK DEMENSION:72/170/1220MM
DRIIVE MOTOR POWER AT s2 60MIN: 1.6kw, horizontal motor
Drive system: ACTIVE
CONTROL SYSTEM: ZAPZ(Amercia, world top brand)

CBD power pallet truck offers a huge advantage over hand pallet its quick and effortsless loading and transporting features.
The compact design can easily mobbe in the most confiined space and narrow aisle as in retail stores small warehouse and factories.
1. Control setystem:CURTIES, New design, national patented produc
patent Number 201430452556.5). Unique
    Transformers series appearance;
2.high perfmance traction battery,long working time.
3.Imported driving wheels,strong power.
4.External inteligent charger,reliable and convenient.
5.Ergonomic handle design, easy to operate.
6.Foldable pedal enables comfortable operation.

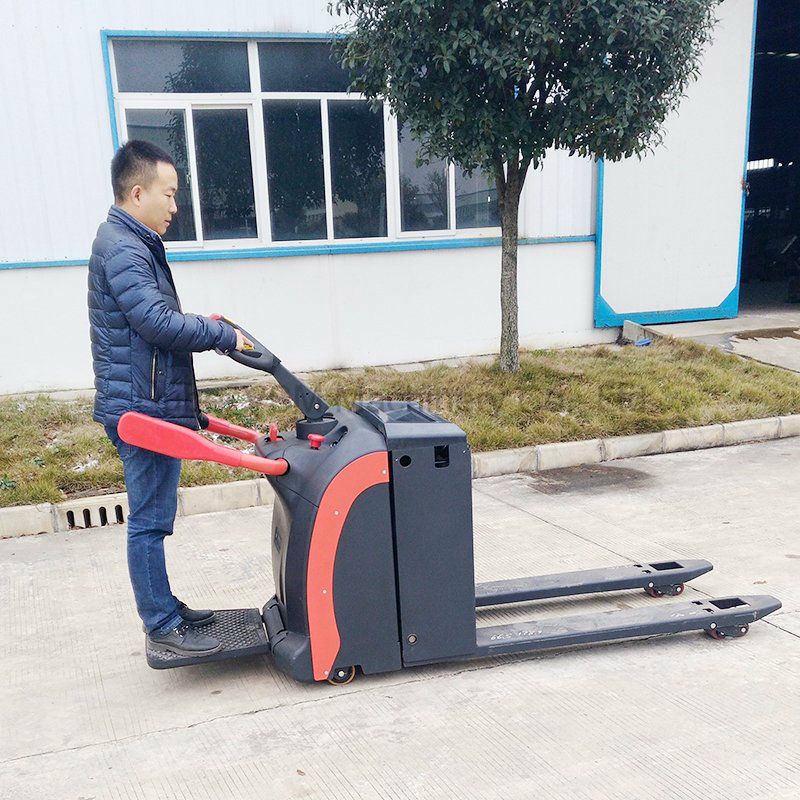

PRODUCT PHOTOES

Special Design with Patent Electric Pallet Truck Material Lifting Equipment
Special Design with Patent Electric Pallet Truck Material Lifting Equipment



PRODUCT INFORMATION
Model CBD20 CBD25 CBD30
Drive unit Battery Battery Battery
Operator type Pedal Pedal Pedal
Capacity (kg) 2000 2500 3000
Wight(lncl.battery)(kg) 690 720 740
Overall length (mm) 1985 1985 1985
Overall width (mm) 722 722 722
Overall height (mm) 1330 1330 1330
Raised height (mm) 110 110 110
Fork dimensions (mm) 72/170/1220 72/170/1220 72/170/1220
Fork spread (mm) 690 690 690
Aisle width,1000×1200 pallet crossways (mm) 2592 2592 2592
Aisle width,800×1200 pallet crossways (mm) 2392 2392 2392
Outer turning radius(mm) 1759 1759 1759
Wheel type PU/PU PU/PU PU/PU
Operator side Φ230×70 Φ230×70 Φ230×70
Load side 2×Φ80×87 2×Φ80×87 2×Φ80×87
Drive speed,with load /
without load (km/h)		 5/7 5/7 5/7
Lifting speed,with load /
 without load  (m/s)		 0.035/0.048 0.035/0.048 0.035/0.048
Maximum climbing angles,
with load / without load (%)		 5/8 5/8 5/8
Service brake Electromagnetic Electromagnetic Electromagnetic
Drive motor power at S2 60 min (kw) 1.6horizontal motor 2.5vertical motor 3.0vertical motor
Lift motor power at S3 15% (kw) 1.5 1.5 1.5
Battery voltage / rated capacity (5h)( V/Ah) 24/210 24/240 24/240
Battery weight(kg) 190 210 210190
Battery l / w / h(mm) 650/201/590 650/201/590 650/201/590
Battery type traction battery traction battery traction battery
Type of drive control AC AC AC
Control System  ACTIVE  ACTIVE  ACTIVE
Sound level for operator (dB(A)) 85 85 85



Special Design with Patent Electric Pallet Truck Material Lifting Equipment

DETAILED VIEW:

Special Design with Patent Electric Pallet Truck Material Lifting Equipment


MORE  HOT SALE PRODUCTS
Special Design with Patent Electric Pallet Truck Material Lifting Equipment

our workshop

Special Design with Patent Electric Pallet Truck Material Lifting Equipment


welcome your factory tour at any time!
