Electric Pallet Truck Cbd15-610/1.5 Ton
$1200.00 /piece
Stock: 1000piece
Send Inquiry
Seller Support:
Trade Assurance — To protect your orders from payment to delivery
Product Details
Transaction Comments
:
Basic Info
  • Model NO.: CBD15-610
  • Power: AC Motor
  • Fuel: Electric
  • Lift height: 200
  • Brand: JAC
  • Entry Type: 2-Way
  • Trademark: JAC
  • Specification: CE/SGS/ISO9001/ISO14001
  • HS Code: 8427109000
  • Type: Powered Pallet Truck
  • Load Capacity: 1T - 5T
  • Load center: 500mm
  • Condition: New
  • Material: Steel
  • Style: Double Faced
  • Transport Package: JAC Standard Export Packing
  • Origin: Hefei, China
Product Description
JAC FORKLIFT SERIES:

Warehousing Series: Pallet truck

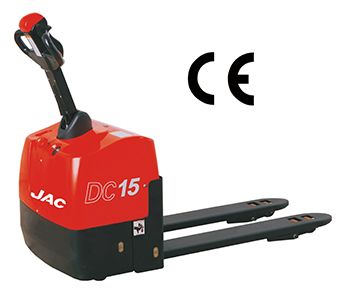

Electric Pallet Truck Cbd15-610/1.5 Ton

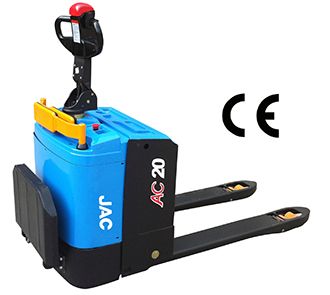

Electric Pallet Truck Cbd15-610/1.5 Ton

Product name: Electric pallet truck

Loading Capacity: 1500KG-2000KG

Advantage:

Power steering system
Original America-made Curtis controller, Allbright Contractor, AMP connectors, NSK bearings

Vertical drive system, Driving Floating Adjustable system design
Maintenance free AC motor provides stronger power and enhanced grade ability

USA CURTIS controller

Two magnetic valves,three kinds of descend speed

Proximity switch ensure safety and energy-saving

Optional fork tilting device


Feature UNIT Specs
Model   CBD15-610
Configuration NO.   610
Load capacity KG 1500
Load center mm 600
wheel base mm 1234
operating type   walkie

Wheels
wheel type   PU
wheel quantity driving wheel/balance wheel/bearing wheel   1/2/4
driving wheel size mm Φ252*67
balance wheel size mm Φ80*58(double wheel)
Bearing wheel size mm Φ99.5*40

Dimension
min.fork lowered height mm 85
max.fork lifting height mm 205
max.lifting height mm 120
overall fork width mm 540/600/685
fork length mm 1150/1200
fork width mm 160
fork thickness mm 44
overall length mm 1630
overall width mm 724
overall height(with handle) mm 1220
overall height(without handle) mm 685
min.turning radius mm 1400
min.aisle width for pallets 800X1200 mm 1817
min.aisle width for pallets 1000X1200 mm 1858

Performance
Travel speed laden/unladen km/h 3.5/4
lift speed laden/unladen mm/s 56/60
Gradeability laden/unladen % 5/7

Electrical configuration
drive motor kw DC 0.63
lift motor kw DC 0.8
steering motor kw  N/A
battery voltage/capacity v/ah 24/70
brake   electromagnetic/regenerative
controller   CURTIS

Weight
Battery weight kg 48
service weight with battery kg 285
Electric Pallet Truck Cbd15-610/1.5 Ton
