NPN/PNP No Nc 2 Wire Flush Type Proximity Sensor (LM18)

Add to wish list

+ Add a New List

NPN/PNP No Nc 2 Wire Flush Type Proximity Sensor (LM18)

$3.02 /piece


Stock:	1000piece

Send Inquiry

Seller Support:

Trade Assurance — To protect your orders from payment to delivery

Product Details

Transaction Comments

Basic Info

Model NO.: LM18-3005
Composition: Combination Mode
Output: Switch Type
Theory: Inductive Proximity Switch
Brand: Winston/OEM
Output Form: NPN PNP
Transport Package: Export Standard Carton Box
Origin: Made in China

Type: Inductive Proximity Switch
Production Process: Copper
Usage: Position Sensor
Shell Material: Metal
Working Tem.: -25 C~+70c
Trademark: Winston/OEM
Specification: CE
HS Code: 90330000

Product Description

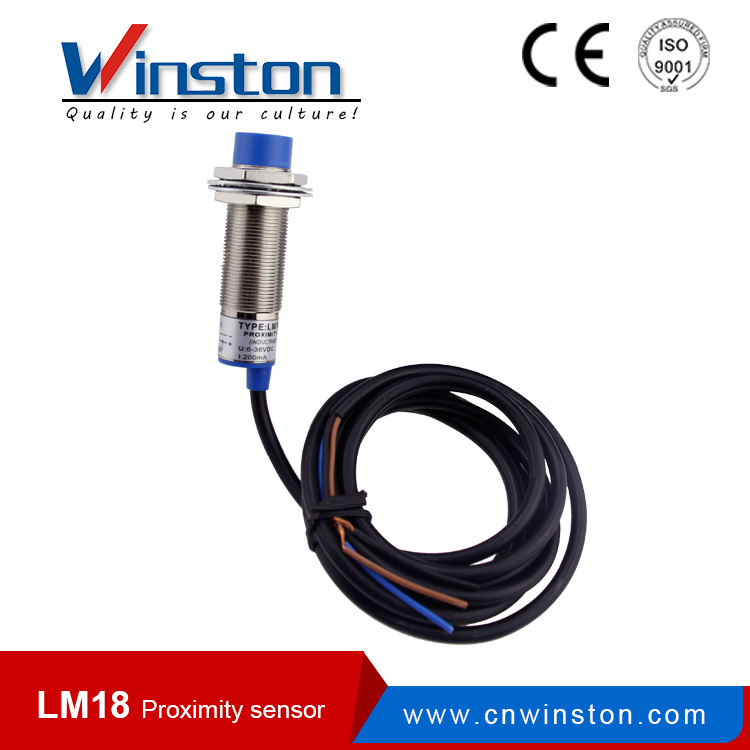

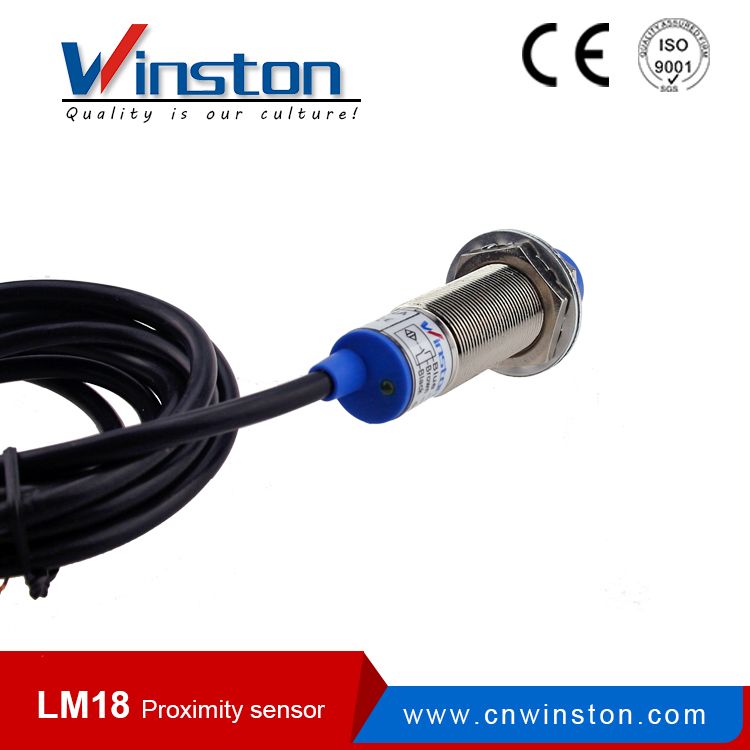

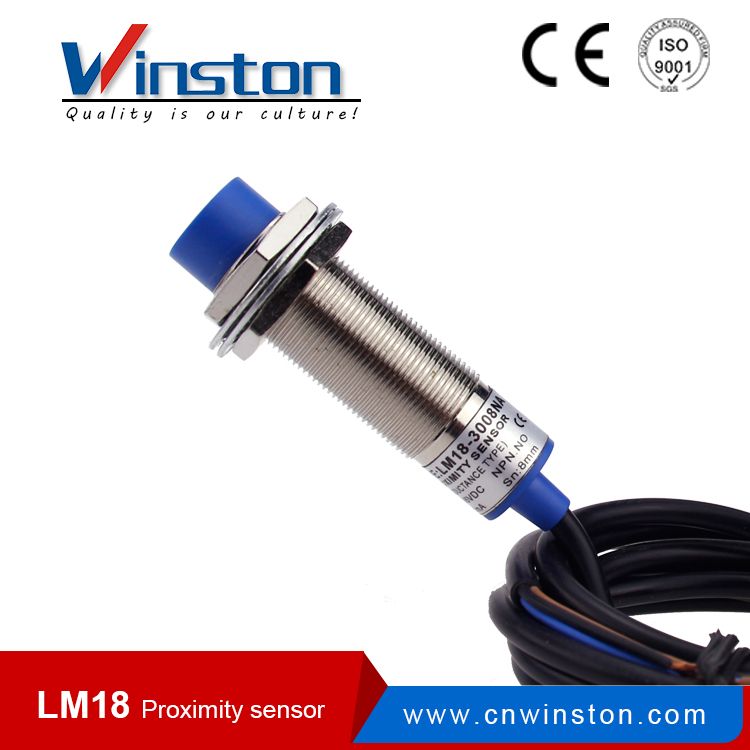

NPN/PNP No Nc 2 Wire Flush Type Proximity Sensor (LM18)

Model explanation of proximity switch

1. Switch category(LM: inductance type; CM: capactitance type;SM:Hall type; AM:safety explosion-proof type; XM: mimic linear type)
2. Outward appearance code(: Cylinder type; F: Angular column type and planeinstallation type)
3. Operating voltage(30: 6-36VDC; 310: 5-24VDC; 320: 12-60VDC; 20:90-250VAC; 210: 24-250VAC;220: 380VAC; 40: 12-240VDC/24-240AC; 50: Special voltage)
4. Detection distance( 01: 1mm; 05:5mm; 10:10mm)
5. Output method (N: Three-line DC NPN output;P: Three-line DC PNP output;
L: Two-line DC output;: AC two-wire output;J: Relay output;NP: NPN+PNP output)
6. Output status(A: NO; B: NC; C: NO+NC; MU: Mimic voltage; MI: Mimic current)
7. Auxi function code(T: With connector; Y: Water proof, oil proof; I: Special requirement;
H: High temp resistance; R: Ring type)

Main Features:

Compact volume
high precision of repeated location
Diversified exterior structures
Good performance of anti-interference.
Wide voltage range
Dust proof,vibration proof,water proof and oil proof.
With short-circuit protection and inverted connecting protection.
Size:

DETECTION DISTANCE 5mm
Flush	DC10-30V	NPN	NO	LM18-3005NA
			NC	LM18-3005NB
			NO+NC	LM18-3005NC
		PNP	NO	LM18-3005PA
			NC	LM18-3005PB
			NO+NC	LM18-3005PC
		two wire system	NO	LM18-3005LA
			NC	LM18-3005LB
	AC90-250V	SCR Control-lable silicon	NO	LM18-2005A
			NC	LM18-2005B
			NO+NC
		Relay output
DETECTION DISTANCE 8mm
Non-Flush	DC10-30V	NPN	NO	LM18-3008NA
			NC	LM18-3008NB
			NO+NC	LM18-3008NC
		PNP	NO	LM18-3008PA
			NC	LM18-3008PB
			NO+NC	LM18-3008PC
		two wire system	NO	LM18-3008LA
			NC	LM18-3008LB
	AC90-250V	SCR Control-lable silicon	NO	LM18-2008A
			NC	LM18-2008B
			NO+NC
		Relay output
Controloutput		DC		200mA
		SCR/ Relay		300mA
Output voltagc drop DC/AC				NPN/PNP< 3V,Two wire<3.9V,AC< 10V
Consumption current				DC< 15mA, AC< 10mA
Standard detected object				18181(A3 iron)
Repeated precision				0.02
DC/AC				200Hz/25Hz
Working environment temperature				-25º C~+70º C
Insulation resistance				50MΩ
Shell material				Metal
Protection grade				IP67
Altemative model at home and abroad				LJ18A3-8-

Packing
NPN/PNP No Nc 2 Wire Flush Type Proximity Sensor (LM18)

PS: If you can't find the exact type of your product.Please don't rush to go away. Contact me and your questions will be replied ASAP. Thank you for your time.
