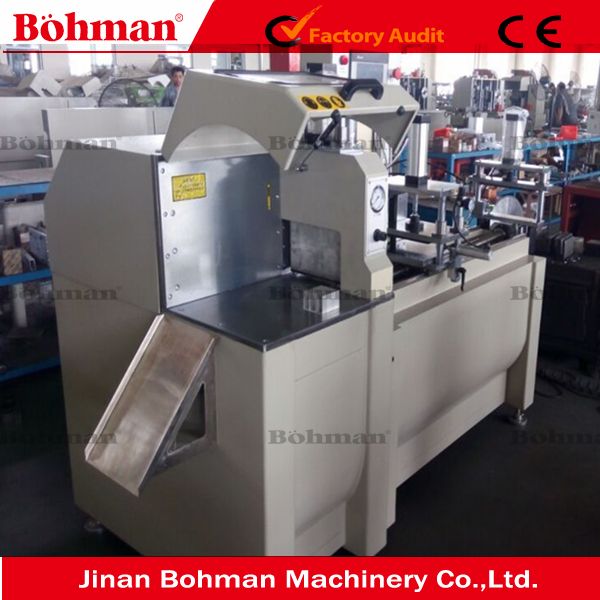

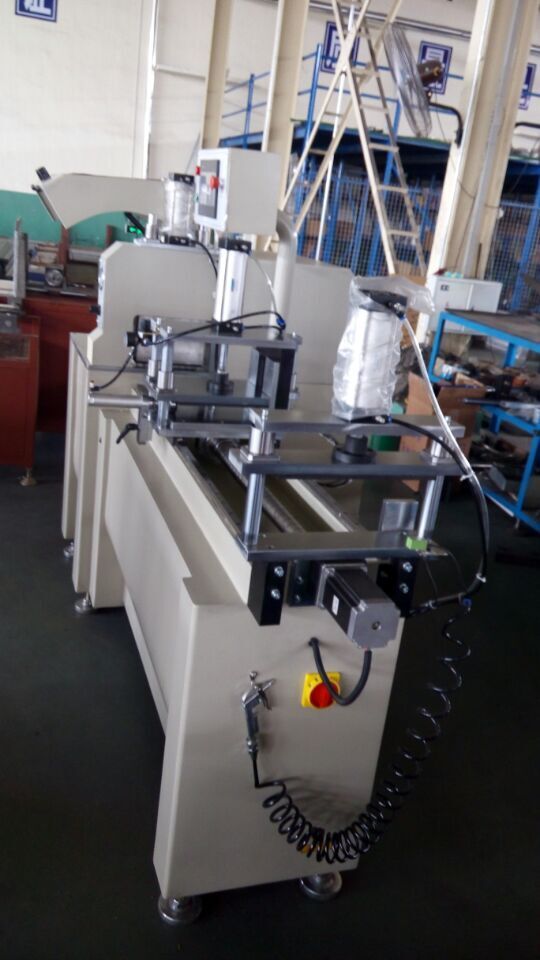

High Efficient CNC Full Automatic Corner Connector 90 Drgree Cutting Saw for Industrial Aluminum Profile
$8000.00 /set
Stock: 1000set
Send Inquiry
Seller Support:
Trade Assurance — To protect your orders from payment to delivery
Product Details
Transaction Comments
:
Basic Info
  • Model NO.: GXSK-450
  • Warranty: 1-year
  • Condition: New
  • Application: Metal, Plastic
  • Layout: Horizontal
  • Specification: 2500*1200*1650mm
  • HS Code: 8459310000
  • Waterproof Rating: IPX-8
  • Certification: CE
  • Control: Automatic
  • Power Source: Electric
  • Trademark: Bohman
  • Origin: Shandong, China
Product Description

Main Features:

1.CNC system and it can set cutting length ,and auto-feeding and cutting and whitout tailing.

2. Adopt spindle motor direct drive ultra-thin hard alloy carbide tooth saw blade,high transmission efficiency,high
machining precision,high material utilization
3. The kinematic pair of cutting part adopts linear guide,the kinematic pair of automatic feeding adopts ball screw.Stable operation,high precision
4. With the function of automatic counting
5. With the device of spraying,which could improve the processing precision and prolong the service life of saw blade
6. Forward and backward profile butt joint without tailing,when the profile was cutting

Technical Parameters:

Power Supply 380V 50Hz

Cutting Motor Power 3kw

Motor Rotary Speed 2800r/min

Operation Air Pressure 0.5-0.8mpa

Auto-feeding Length 5-1000mm

Blade Specification Ø450*Ø30mm*2.6

Blade blade feeding speed 0-3m/min

Outside Dimension 2050*1200*1650mm(Conveyor:5400mm)

Weight 780kg

High Efficient CNC Full Automatic Corner Connector 90 Drgree Cutting Saw for Industrial Aluminum Profile

High Efficient CNC Full Automatic Corner Connector 90 Drgree Cutting Saw for Industrial Aluminum Profile
High Efficient CNC Full Automatic Corner Connector 90 Drgree Cutting Saw for Industrial Aluminum Profile
High Efficient CNC Full Automatic Corner Connector 90 Drgree Cutting Saw for Industrial Aluminum Profile
High Efficient CNC Full Automatic Corner Connector 90 Drgree Cutting Saw for Industrial Aluminum Profile
High Efficient CNC Full Automatic Corner Connector 90 Drgree Cutting Saw for Industrial Aluminum Profile
