Glass Beveling Machine of 9 Motors for Mirror Polishing (BXM261B)
$18500.00 /piece
Stock: 1000piece
Send Inquiry
Seller Support:
Trade Assurance — To protect your orders from payment to delivery
Product Details
Transaction Comments
:
Basic Info
  • Model NO.: BXM261B
  • Certification: CE
  • Control System: Manual
  • Grinding Head Number: 9
  • Dimension of Product: 7800*1200*2600mm
  • Transport Package: Exported Standard Wodden Case
  • Origin: China
  • Type: Glass Beveling Machine
  • Structure: Horizontal
  • Glass Edging Machine Type: Glass Beveling Machine
  • Condition: New
  • Trademark: BEIJIANG
  • Specification: 3900*1250*1750mm
  • HS Code: 8464201000
Product Description
Production Description

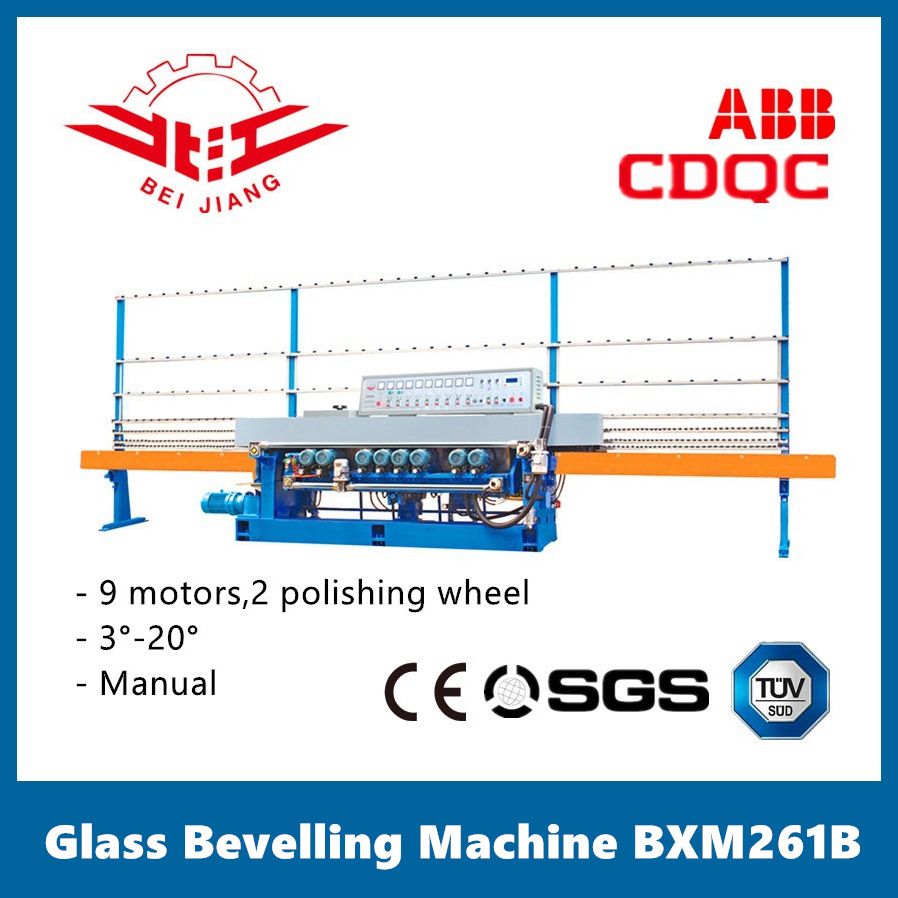

Glass beveling machine BXM261B

- spindels driven by motor, capable of satisfying for economizing on energy, high efficiency and service easy

- adopts pneumatical polishing, the chamfering spindles can move forward and backward wholely, and the angles can adjust wholely. Stable water tank can get the best waterproof purpose.

The feeding speed of glass can be adjusted with the operation by means of the mechanical step-less transmission. Their graphic and data will be automatically shown on the screen for processing the glass. Rough grinding, fine grinding and polishing can be finished in one time.
Wheel Pos.

Pos. 1~2 Diamond wheel φ150mm Each 1

Pos. 3 Diamond wheel φ175mm 1

Pos.4~7 Resin wheel φ150mm Each 1

Pos. 8~9 Polishing wheel or Felt φ150mm Each 1


SPECIFICATIONS FOR GLASS EDGING MACHINE BXM261B
Voltage/frequency 380V/220V/415V, 50Hz/60Hz as required
Number of Spindles 9pcs
Working speed 0.5-5(m/min)
Min. Glass 40*40(mm)
Max. Glass 3000*3000(mm)
Thickness 3-25(mm)
Max. Grinding amount 3mm
Bevel Angle 3°- 20°
Bevel Width 0-40mm
Total power 23.25kw
Weight 4410kg
Height of worktable 850mm
Dimension 7900×1200×2600(mm)

Main Feature

1) Simple structure, manual operation, easy in installation and maintation.
2) Adopting advanced components in electric parts(CHINT).
3) Electronic control the front conveyer for grinding different thickness glass.
4) Good quality wheels to grind glass.
5) Stepless reduction for glass feeding speed.

Glass Beveling Machine of 9 Motors for Mirror Polishing (BXM261B)Glass Beveling Machine of 9 Motors for Mirror Polishing (BXM261B)Glass Beveling Machine of 9 Motors for Mirror Polishing (BXM261B)Glass Beveling Machine of 9 Motors for Mirror Polishing (BXM261B)



Our service

Pre-Sale Service

* Inquiry and consulting support.
* View our Factory.

After-Sale Service

* Training on installing the machine, training on operating the machine.
* Consulting support
* Machine parts support


Packing & Delivery

Glass Beveling Machine of 9 Motors for Mirror Polishing (BXM261B) Packaging
Size 3900 (L) * 1250 (W) * 1750(D)
Weight 4500kg
Packaging Details The normal package is plywood box(Size: L*W*H). If export to european countries, there is no need to fumigate. If container is too tigher,we will use pe film for packing or pack it according to customers special request.



About Us

Foshan beijiang glass machinery co. ltd. has work on glass edging machine for over 25 years. The company retains excellent machine tools and advanced inspection equipment. With strict examination system to ensure the quanlity, products are sold to all over country and to world.


Contact Us

Foshan Beijiang Glass Machinery Co., Ltd.

Address: No. 8 East Bo'ai Rd., Shishan District, Foshan , Guangdong, china.
Tel: +86-757-81208306
Fax: +86-757-81208302

Glass Beveling Machine of 9 Motors for Mirror Polishing (BXM261B)
