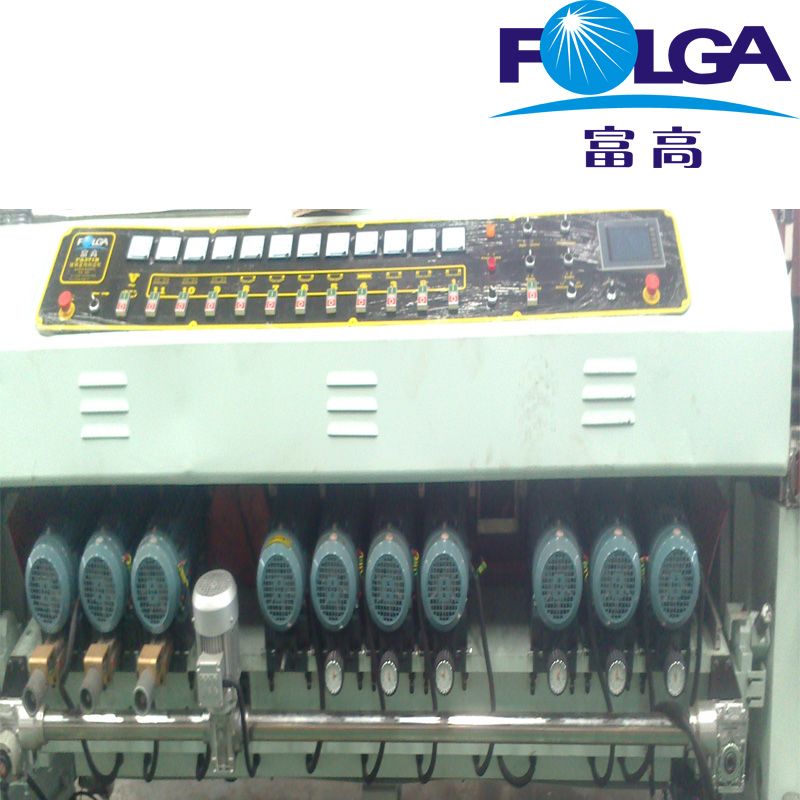

Straight Line Beveling Glass Machine (FA261B)

$34000.00 /sets


Stock:	1000sets

Send Inquiry

Seller Support:

Trade Assurance — To protect your orders from payment to delivery

Product Details

Transaction Comments

Basic Info

Model NO.: FA261B
Certification: CE, ISO
Glass Thickness: 3~19 Mm
Min. Process Size: 30X30 Mm or 25mm Strips
Angel Range: 3°-45°
Overall Size(L×w×h): 6800 Mm×1000 Mm×2500mm
Working Height: 850mm
Trademark: FOLGA
Origin: Guangdong, China

Type: Glass Beveling Machine
Condition: New
Speed: 0.4~5m/Min
Max. Process Size: 3000 Mm X3000 Mm
Max Bevel Width: 40mm
Power: 24.3kw
Grinding Wheel No.: 9
Transport Package: Export Packing

Product Description

This product is suitable for flat glass straight line bevel rough grinding, fine grinding, and the hemline polishing. Adopt coarse pitch chain to carry the glass, smooth transmission, high precision grinding. Rear transport board with the automatic cleaning device, keep it clean for long. With the Manual automotive-lubricating systems, keep the machine work in the lubricate situation. Adopt PLC automatic and manual operation system control, human interface for display, can set the glass thickness, after being processed thickness and bevel width. This product the biggest characteristic is Though lift the back guide rail to change the fall with the front, then achieve to enlarge the grinding glass size and bevel width after being processed. This machine has high precision lift, strong rigidity, and high rate of end product. Is Suitable for process lager volumes of glass mosaic.

I. Main technical data
1, Voltage: 380V/50HZ
2, Speed: 0.4~5m/min
2, Min. process size: 30X30 mm
3, Max. process size: 3000 mm X3000 mm
4, Glass thickness: 3~19 mm
5, Angel range: 3°-45°
6, Max bevel width: 40mm
7, Power: 24.3KW;
9, Overall size(L×W×H): 6800 mm×1000 mm×2500mm
10, Working height: 850mm
Straight Line Beveling Glass Machine (FA261B)

Straight Line Beveling Glass Machine (FA261B)

Name	Main specification
The material of the machine and frame	Pedestal,upright post,crossbeam,grinding head, all adopt high quality and thick material castings. Through the high temperature heat annealing treatment, the structure performance is stable
Front truck and back truck	adopts armor plate 40Cr,stable function, the low possibility of breakdown.
No. 9#, 10#Wheel head	adopts pneumatic polishing
Grinding Motor	adopts the products from Shanghai ABB Motor
water pump	Adopt SHANQING or JINGLONG brand.
converter motor	adopt WANGYAN converter motor with high pulling torque, front and rear guide rail linkage adopt big modulus bevel gear box, to make more stable to grinding the big bevel edge and the thickly glass.
Pendulum swing angle adopt screw rod rear support structure to improve the grinding level.
The guide rail at front screw rod, screw nut install at the side of the upright post to make it maintain more convenience.
Exit transport guide rail install the guiding arrangement for the small glass, to avoid the small glass paste on the rear board when at grinding.
transfer worm gear box	adopt ZHUJIANG brand.
pneumatic components	adopt ZheJiang HENGYI brand
Bearing	adopt HRE brand
glass support shelf	adopt aluminum frame
photoelectric switch, intermediate relay	Adopt Japan OMRON brand.
transport timing belt	adopt YONGLI brand
timing belt wheel	adopt the ultra hard alufer
drive transducer	adopt JAPAN HITACHI
rotary switch emergency stop switch	adopt JIANGYIN CHANGJIANG brand
photoelectric switch, intermediate relay	adopt Japan OMRON brand.
PLC	adopt Taiwan DELTA
Touch screen	adopt Taiwan HITECH
rotary encoder	from Korea Autonics .
transformer, low voltage breaker, contactor	adopt JIU CHUAN CHINT brand
