Insulating Glass Production Line Hot Sale Double Glass Machine in Jinan
$50000.00 /units
Product Details
Transaction Comments
| : | Basic Info
Product Description

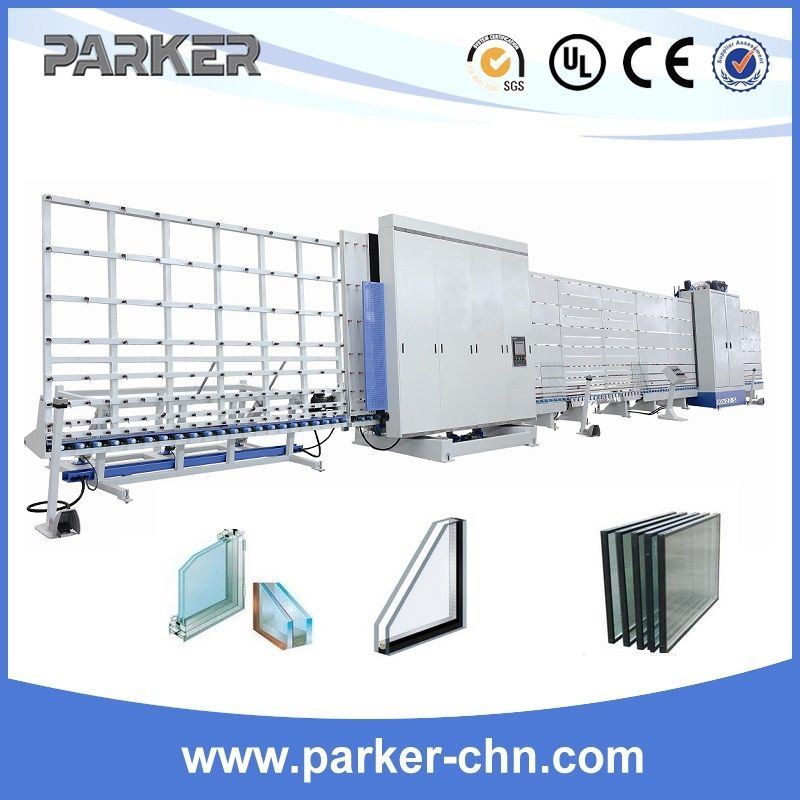

Insulating Glass Production Line Hot Sale Double Glass Machine In Jinan
Main Feature:1. The electric component, sensor and PLC auto-controlling is imported low power supply; 2. The appliance is efficient for the operator can input the order continuously; 3. Touching screen is imported originally. It is easy to operate. The process and fault can be showed automatically; 4. It is controlled by punctuated system which is energy-saving. The inspecting and combining speed up when other non operating parts are intelligent-asleep; 5. It can produce big and small scale insulating glass(Optional) Main Technique Parameter: Power supply: 380V 50Hz Air consumption: 200L/min Power: 29.50kW Max. Process dimension: 2500mm× 3200mm Min. Process dimension: 200mm× 450mm Max. Thickness of the insulating glass: 40mm Washing Glass Thickness: 3-25mm Convey speed: 12-40m/min Cleaning Speed: 2-12m/min Max. In accelerating: 48m/min Dimension: 24600mm× 3800mm× 3450mm
|
