Star Product Raw Material Concrete Sand Cement Flyash Slag Wall Panel Machine Jj

$9999.00 /set


Stock:	1000set

Send Inquiry

Seller Support:

Trade Assurance — To protect your orders from payment to delivery

Product Details

Transaction Comments

Basic Info

Model NO.: JQT
Customized: Customized
Type: Extrusion and Vibration
Width(mm): 500-1200
Factory Visit: Welcome
Features: Easy Operation
Color: Red, Yellow, Green
Weight: 1200kg
Transport Package: 2360*1130*720mm
Origin: China

Certification: SGS, ISO
Automatic Grade: Semiautomatic
Speed(M/Min): 1.2-1.7
Thickness(mm): 80-180
Application: Building Materials Machinery
Voltage: 380V/220V/415V
Business Type: Manufacturer Direct Supplying
Trademark: VICTORY
Specification: 2360*1130*720mm

Product Description

if you have a skype, pls contact me through my skype

JJ LIU

from zhengzhou, China

to get more information and get best price and service.

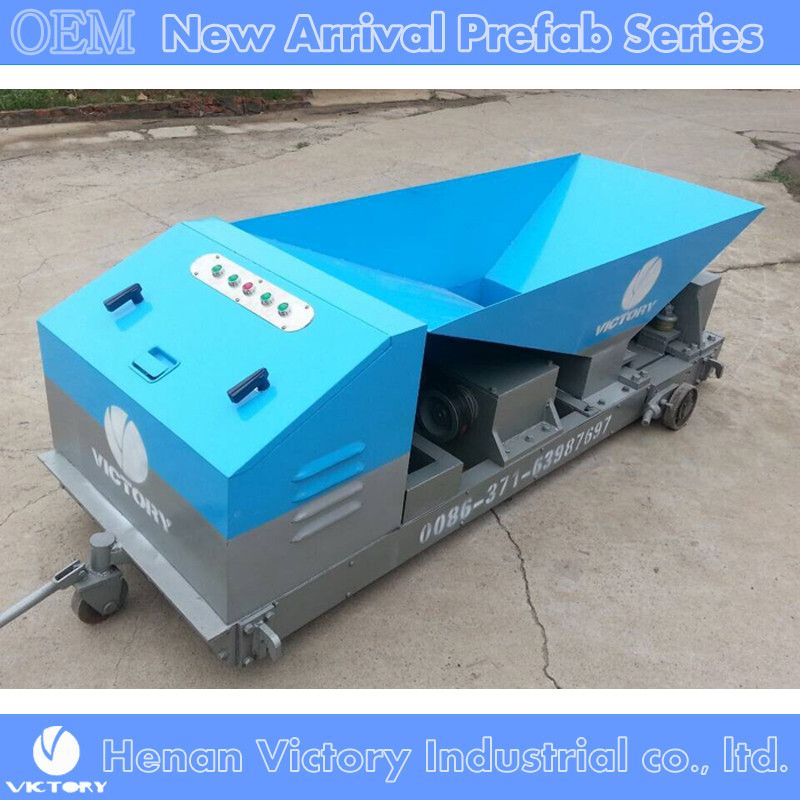

Light weight concrete hollow core wall panel machine

Product Description

Extrusion technology
For producing light weight wall panels for interior partition walls or exterior walls
Production speed is 1.3-1.7 m per minute depending on the differences of raw materials
Lightweight cocnrete aggregates ,cement+lightweight aggregate
Allow 1.8-6mm steel wires as reinforcement materials
Full Wear-resistant alloy spare parts including feeding auger,vibration plate
Service life for feeding auger more than 150000KM

Main Specification

Model	JQT9x60	JQT10x60	JQT12x60	JQT18x60
Width(mm)	595±2	595±2	595±2	595±2
Thickness(mm)	90±1	100±1	120±1	180±1
No. of holes and hole diameter(mm)	7*58	6*58	5*85	3*132
Panel making speed(m/min)	1.1-1.7	1.1-1.7	1.1-1.7	1.1-1.7
Main motor (kw)	4	4	5	7
Vibrator(kw)	0.8	0.8	0.8	1.1
Overall dimensions (mm)	2560x950x980	2560x950x980	2560x950x980	2560x950x980
GW(kg)	1100	1200	1300	1800

Inner struture of extruder

Production line and related machines

End products and application

Super flat and required only Putty/Thin Skim Coat
Customized up to 6m length to minimize waste, lintel, stiffer, labor & time
The ONLY REINFORCED with High Tensile Steel Wire for Bending Strength and Safety in its usage as High Wall.
Installed for internal, external and parapet wall both laid horizontal and vertical.

Packaging & Shipping

Light Weight Concrete Hollow Core Wall Panel Machine
