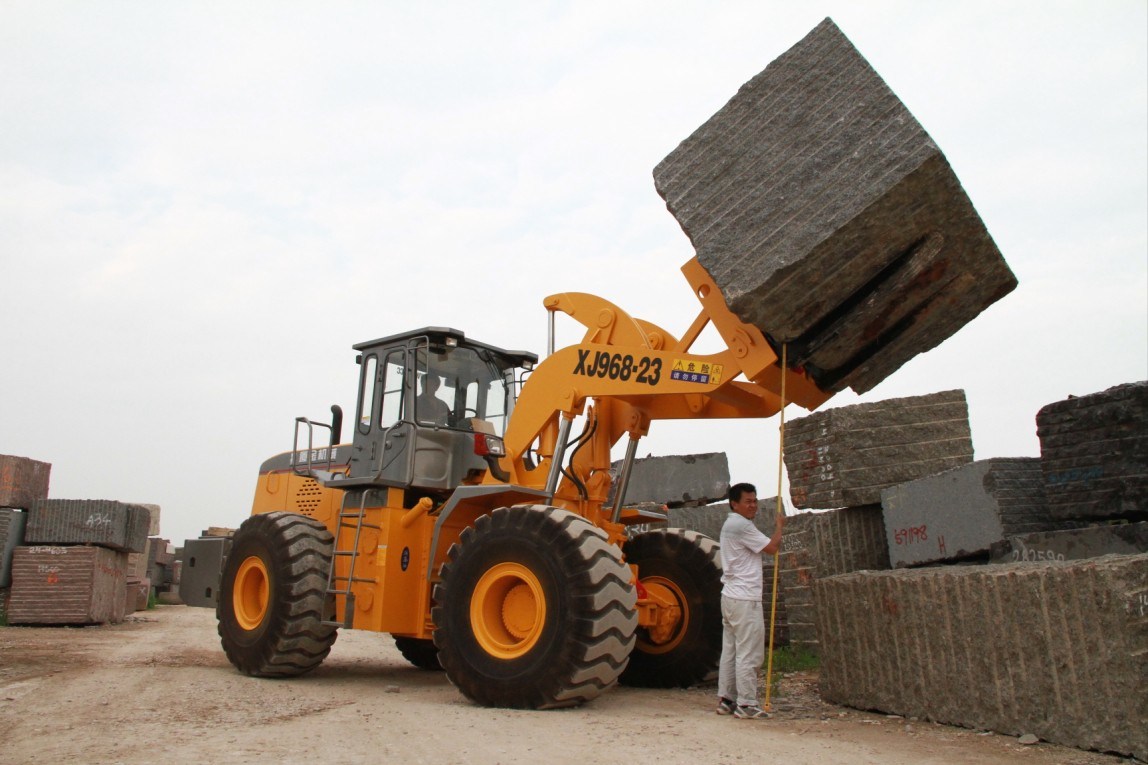

Forklift Loader Xiajin Machinery 9~ 45 Tons Marble for Stone

Add to wish list

+ Add a New List

Forklift Loader Xiajin Machinery 9~ 45 Tons Marble for Stone

$78000.00 /set


Stock:	1000set

Send Inquiry

Seller Support:

Trade Assurance — To protect your orders from payment to delivery

Product Details

Transaction Comments

Basic Info

Model NO.: XJ968-23D
Transmission: Hydraulic Transmission
Load and Unload Method: Front Discharge
Certification: CE, ISO9001: 2000
Color: Yellow
Engine: 260HP Engine
Tool: Fork and Bucket,Quick-Couple
Transport Package: Pack in Container or Ship by Whole Machine
Origin: Xiamen

Type: Blofk Handler Forklift Loader
Walking Mode: Wheeled
Engine Power: 147~515kw
Condition: New
Load: 18t
Servce: 1 Year
Trademark: XIAJIN MACHINERY
Specification: CE and ISO
HS Code: 84295100

Product Description

Specifications of XJ968-23D:

Description			Specification	Unit
Rated power			175	KW/h
Overall dimension(L x W x H)	with fork		8716X3030X3500	mm
Max.lifting height			3480	mm
Operating weight			26000	kg
Max.Limited Load			23000	kg
Bucket capacity			2.3	m³
Dimensions of fork	(L x W x H)		1500X230X110	mm
	Distance of fork		≤1220	mm
	Loading capacity		23000kg to 3.48m
Driver's guard	Height		1680	mm
Turning angle			±35	°
Max. Climbing Gradient			30	°
Turning radius			7350	mm
Wheel base			3500	mm
Tread			2300	mm
Min. Ground clearance			430	mm
Unloading angle			18	°
(with fork) Haul location height (Ground clearance of material)			300	mm
Fuel tank capacity			380	L
Hydraulic fuel tank capacity			380	L
Specification of tyre			26.5R25
Engine System
Model		WEICHAI POWER------WD10G240E21
Rated power		175kw(240hp)
Type		Top-grade Diesel WEICHAI engine, co-worker of German Deutz Company and AVL technology, Austria; 6 Cylinders, Turbocharged Intercooled, with multinomial patents, synthesize multilevel compound desert air filter technology, high efficiency, low noise and cooling technology, especially using in dusty environment.
Rated speed		2200r/min
Max. torque		1000Nm
Total air displacement		220g/kw.h
Number of cylinders-stroke		6-126×130
Fuel consumption		15-18 L/H

Superior performance:
Cross-country---to integrate advantages of cross-country forklift and wheel loader, also strengthened and improved systematically.
Strong---the two front tires can support 26000kg, the two front rims can support 30000kg, working surface of the strengthened fork over 275mm,the Max. Load of lifting reaches 16T.
Safe---the strengthened whole machine system and driving room with safe designed, using of safe guard.
Energy-saving---top-grade WEICHAI engine which with multinomial patents and special technology, fuel-efficient and high efficiency and durable.
Multifunction---with fork or bucket for dual-purpose, driver's cab can be used with or without safety guard and guardrail to carry out a tractor serves several purposes.
