High Quality Steel Tile Metal Roof Roll Forming Machine
$9000.00 /piece
Product Details
Transaction Comments
| : | Basic Info
Product Description
Steel roof roll forming machine, cold roof roll forming machine, steel tile roof roll forming machine.

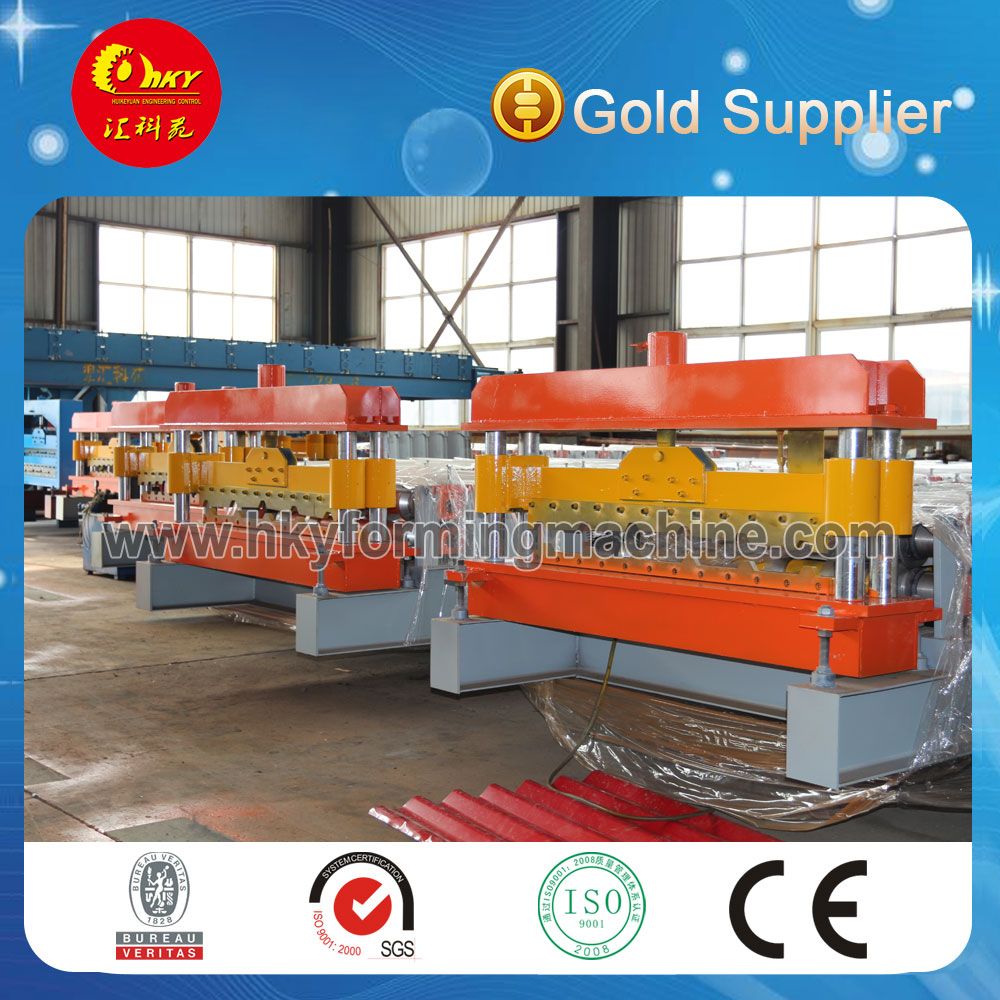

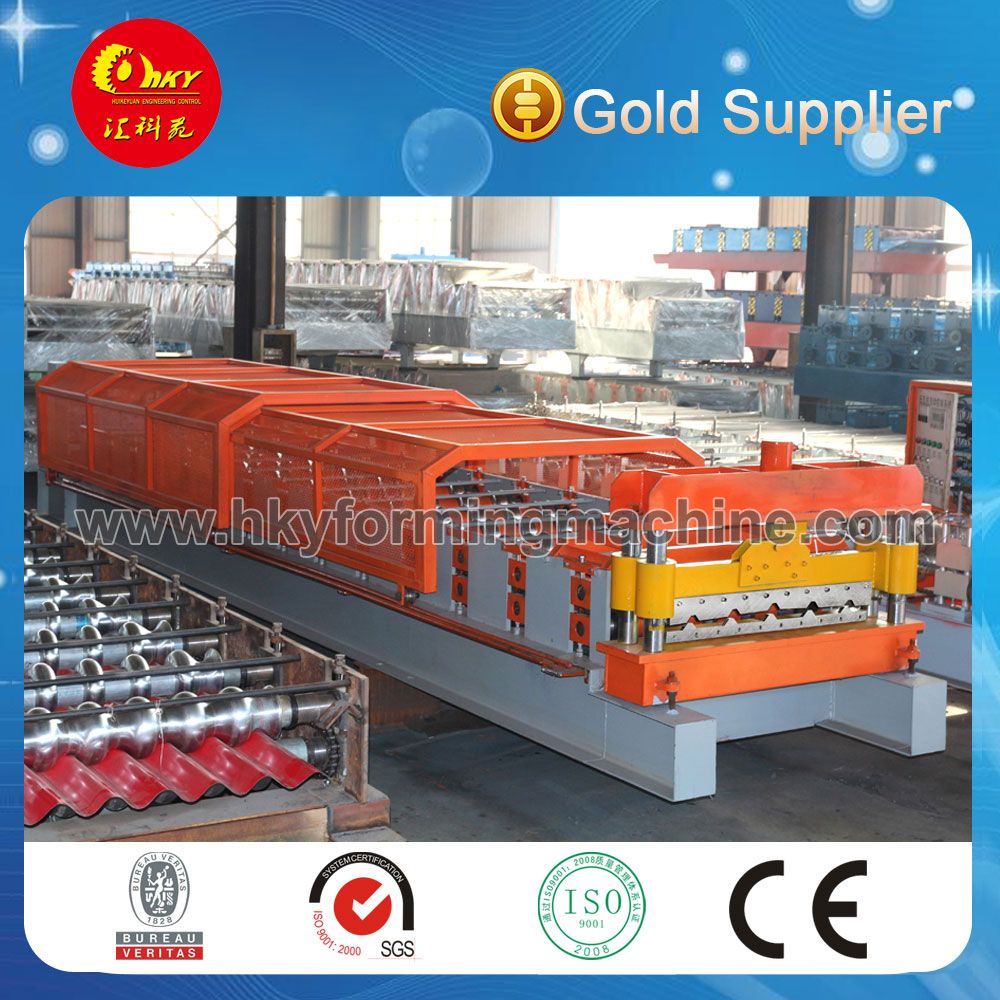

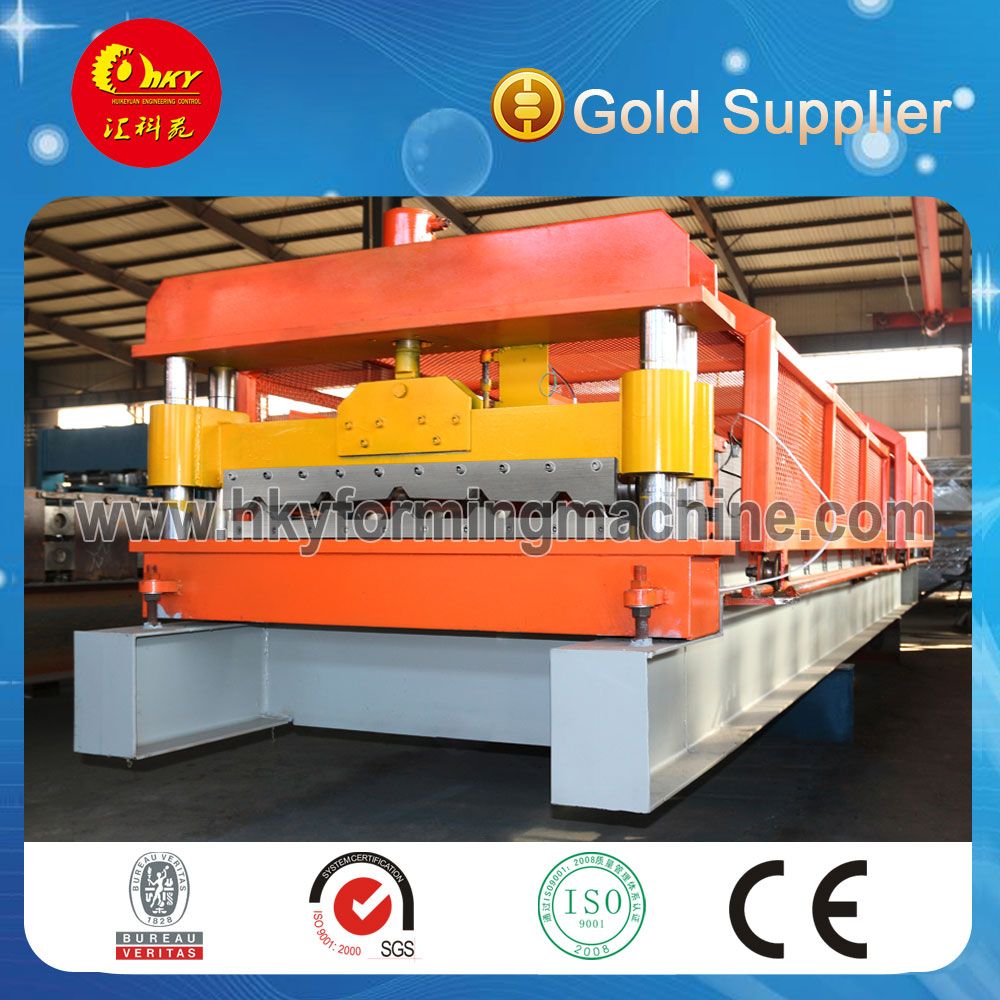

 Components of whole set roof roll forming machine: The De-coiler Coil Sheet Guiding and Adjusting Equipment Film Covered Device Main Roll Forming System Post-Cutting Device Hydraulic Station PLC Control System Support Table Technical parameters of export standard roof roll forming machine: 1 Main motor power: 5.5KW 2 Hydraulic station power: 4KW 3 Hydraulic oil pump: CB-E310 4 Sprocket: P-25.4 5 Roller station: 16 6 Yield strength: 32MPa 7 Diameter of principal axis: 80MM (add a key between axle and roller to fix) 8 Material of roller: C45steel hard chrome plating 9 Processing speed: 8-15m/min(we can do 15m/min also, but we recommend 8m/min) 10 Thickness: 0.2-1.0mm 11 Installation dimension about(L*W*H): 9.2*1.5*1.4M 12 Total weight: About 6.6T 13 Equipment parts includes: Decoiler (capacity 8t), roll forming system, hydraulic system, PLC frequency conversion control system, the sensor of length, cutting system. 14 The temperature range of working line: -35--50 We also can design and manufacture as per your request! Please check our machine photoes as below, 1. single roof sheet roll forming machine  2. Double deck roofing sheet roll forming machine  3. Glazed tile roof sheet roll forming machine
|
