Trapezoid Roof Tile Roll Forming Machine
$7350.00 /set
Stock: 1000set
Send Inquiry
Seller Support:
Trade Assurance — To protect your orders from payment to delivery
Product Details
Transaction Comments
:
Basic Info
  • Model NO.: 840-1050
  • Certification: SGS, CE, ISO
  • Customized: Customized
  • Transmission Method: Chain Drive
  • Raw Materials Thickness: 0.3-0.8mm
  • Raw Materials: PPGI PPGL Gi Gl Aluminium Coil
  • Roller Material: High-Grade 45# Steel
  • Shaft Material: 45# Steel Outer Diameter: 70mm
  • Warranty: 12 Months
  • Transport Package: Standard Export Packing: 1 X 40gp Container
  • Origin: Hebei, China
  • Tile Type: Colored Steel
  • Condition: New
  • Usage: Roof, Wall, Floor
  • Products Name: Trapezoid Roof Tile Roll Forming Machine
  • Raw Materials Width: 914-1250mm
  • Control System: Siemens PLC
  • Cutting Blade Material: Cr 12 High Grade Steel
  • Machine Color: blue or According to Customer′s Need
  • Trademark: HX
  • Specification: 6500*14500*1400mm
  • HS Code: 84552210
Product Description
Company Profile Details
    Tianjin Haixing Imp&Exp company are specializing in the production of all kinds of roof roll forming machine ,different sizes roofing sheet,PPGI/GI ,Alu-Zinc steel coils ,Galvanized steel coils ,Galvanized steel sheet ,Galvalume steel coils/sheet ,cold/hot rolled sheet/cols , professional service and favorable price , satisfied with the quality ,welcome to every customers come to visit and buy ! ! ! We will 24 hourse services for you ,please don't hesitate to contact us when you need .
Trapezoid Roof Tile Roll Forming Machine
Trapezoid roof tile roll forming machine main parameters details
Technical parameters:
2 Main motor power 4kw, 3 phase or as your request
3 Hydraulic motor power 3kw
4 Hydraulic Pressure 10-12MPa
5 Voltage 380V /3phase/ 50 HZ (or as your requirement)
6 Control System PLC Delta Inverter
7 Main Frame 300mm/350mm H-Beam or 350mm
8 Backboard Thickness 16mm
9 Chain Size 1 Inch
10 Feeding Material color steel coils
11 Feeding Thickness 0.3-0.8mm
12 Feeding Width 100-1200mm
13 Effective width 840-1050mm
14 Productivity 0-15/min
15 Roll Station 13 roll steps(according to different design)
16 Roller Diameter 70mm(depend on different design)
17  Roller material  45# steel
18  Cutter material Cr12
19 Cr-Plating Size 0.05mm
20 Overall Size 6800*1400*1150mm
21 Total Weight 5.8T
22 Components Manual Uncoiler-------------------1 set
Guiding Platform------------------1 set
Coil Strip Leveler------------------1 set
Main Machine of Roll Forming------1 set
Electric-Motor---------------------1 set
Cutting Device--------------------1 set
Hydraulic Station------------------1 set
PLC Control-----------------------1 set
Supporter Table-------------------1 set
24 Package Standard seaworthy packing
All technical parameters can be changed, according to customer's need.
Trapezoid Roof Tile Roll Forming Machine
Trapezoid roof tile roll forming machine photos showing
1.Roof forming machine profile drawing

Trapezoid Roof Tile Roll Forming Machine

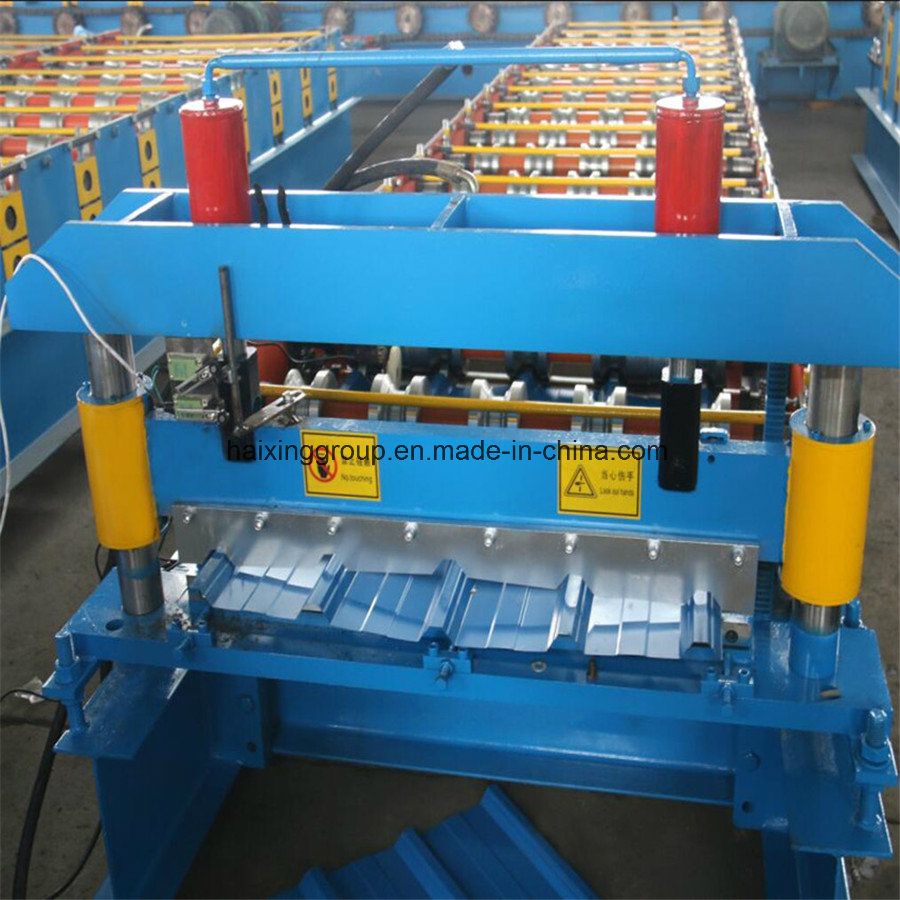

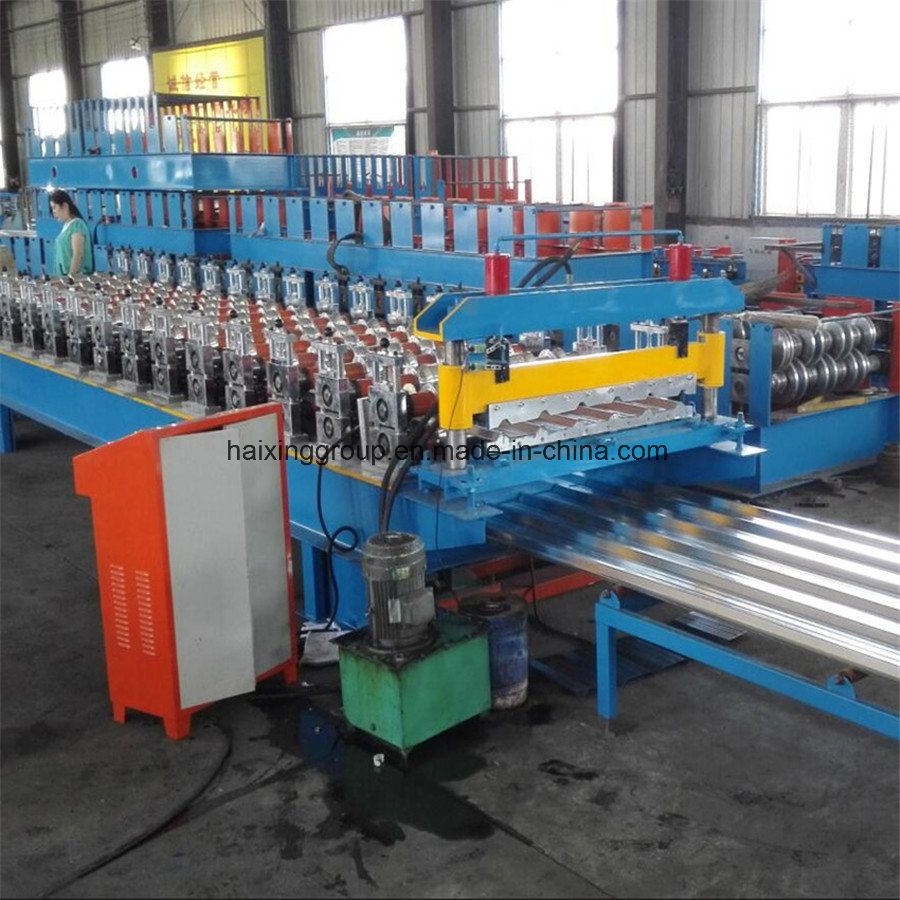

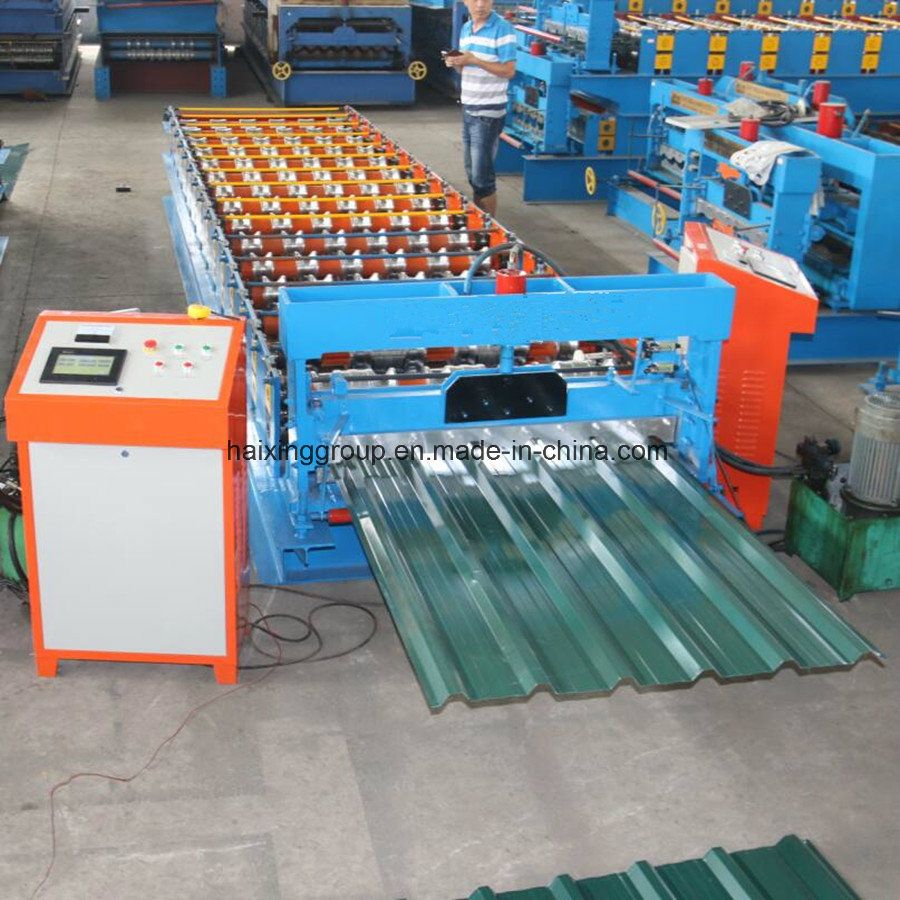

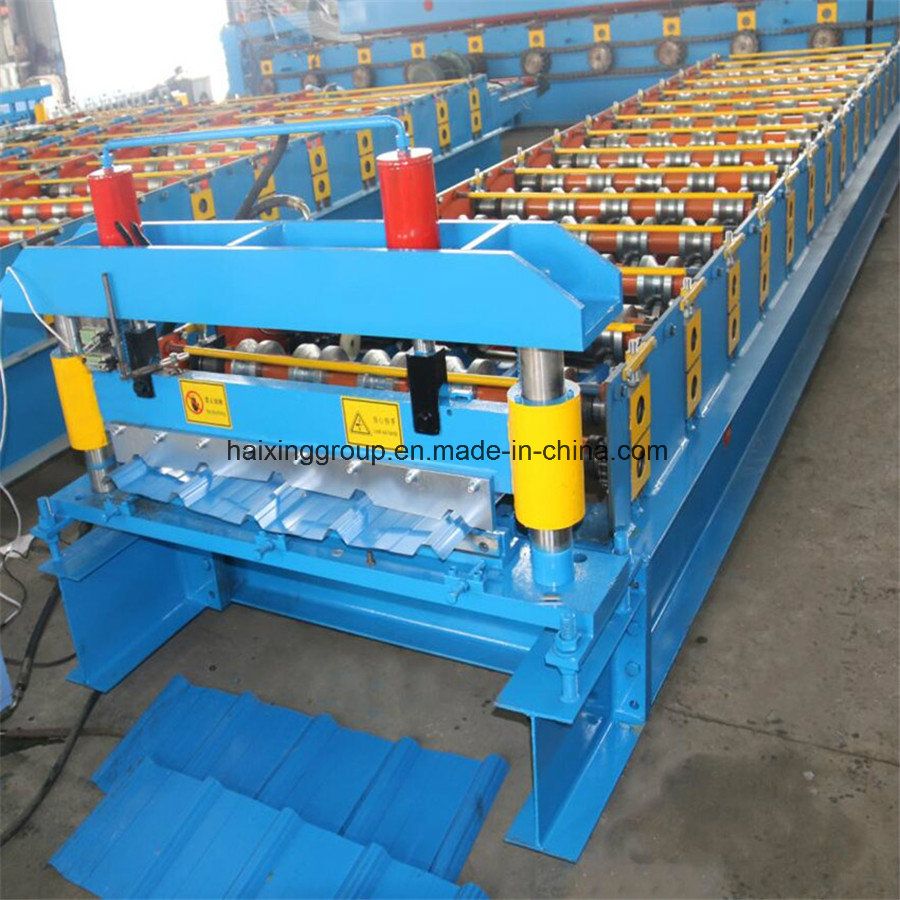

2.The roof forming machine pictures
Trapezoid Roof Tile Roll Forming Machine

The application of metal roof sheets for house and villas :
It can produce various of steel roof and wall panel, it is a new building materials ,the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short building period , beauty, light weight but high strength.

The advantages of trapezoid roof roll forming machine:
The advantages of the roof forming machine
1.Our machines can uses galvanized steel sheet, colored armor plate or aluminum plate as the material plate.
2.Controlling by computer, PLC display, operation is easy, running is steady and reliable,endurable,maintenance-free.
3.We can make and design will kinds of roll forming machine according to customer's request.

Sales Service:
1.we provide the technical support for whole life of our machines.
2.If buyers need the technician to go abroad , we will arrange the technician,but the buyers should take all the cost ,inculding visa, roundtrip ticket etc.
Trapezoid Roof Tile Roll Forming Machine
Trapezoid roof roll forming machine package and shipment details :
Standard export packing: 1 x 40GP container,main machine naked and fastened with iron wire in the container, rollers were painted with oil and packed with plastic film, electrics devices be packed with wooden box.
Trapezoid Roof Tile Roll Forming Machine

Contact details
If you have any need and questions ,please don't hesitate to contact us .Sunny at here  24 hours waiting for you .Looking forward to you join us !
                                                     Tianjin Haixing  Imp.& Exp. Co., Ltd
Address:8-402 ZHIYUAN BUILDING SHUGUANG ROAD,HEBEI DISTRICT,TIANJIN CHINA
Tel: 0086-22-86728681  Fax: 0086-22-86728682
 Email: Skype:
Mob QQ:2891205862
Website :
