PU Foam Window & Door Shutter Roll Forming Machine 44mm
$18000.00 /piece
Stock: 1000piece
Send Inquiry
Seller Support:
Trade Assurance — To protect your orders from payment to delivery
Product Details
Transaction Comments
:
Basic Info
  • Condition: New
  • Dimension: 36000*1600*1600mm
  • Main Power: 11kw
  • Tile Type: Glazed Steel
  • Usage: Floor
  • Trademark: LOTOS
  • Specification: STEEL
  • HS Code: 8455229090
  • Certification: ISO, CE, SGS
  • Material Thickness: 0.3-0.5mm
  • Weight: 13 Ton
  • Customized: Customized
  • Transmission Method: Gear Box
  • Transport Package: Container
  • Origin: China
Product Description
Brief introduction:
The roll forming machines can produce various of steel roof and wall panel, it is a new building materials, the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.
PU Foam Window & Door Shutter Roll Forming Machine 44mmPU Foam Window & Door Shutter Roll Forming Machine 44mm
1. Genaral
Material: Galvanized Coil, Aluminum
Material Thickness:  0.3-0.5mm
Main roll forming machine Power: 11 KW
Forming Speed: 10-12m/min
Feeding width: 229mm
Production line G/W: 13T
Production line length: about 38m
2. Working Flowing


PU Foam Window & Door Shutter Roll Forming Machine 44mm
3. Technical Parameter
3.1 Decoiler
Decoiler Type Manual
Loading capacity 3Ton, Impassive to expanding

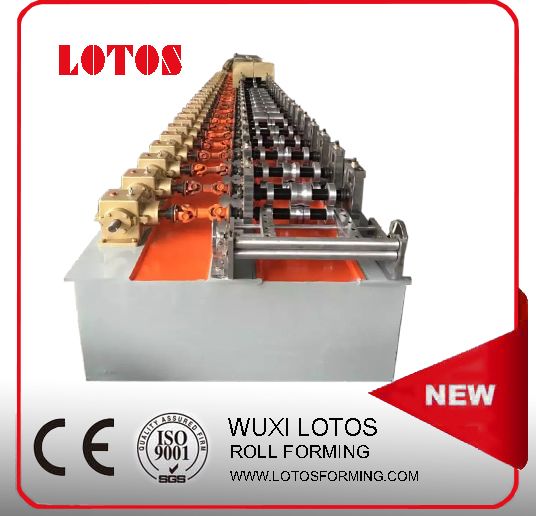

3.2 Roll Forming system with feed panel unit
Axis Diameter 50 mm
Forming Roller station 36+1 groups
Main Axis material First grade 45# steel,heated and quenched
Roller material First grade 45# steel,
Hard Chrome Coated, 2um
heated and quenched
Pillar size 42*45mm
Forming Speed 10-12 m/min
Drive Type Gear box
Machine Frame stand Welded structural steel,
thickness 12mm
3.3 Cutting Device
Cutting type Panasonic Servo tracking cutting
Cutting system power 2.2KW
Cutting length tolerance ±0.5mm

3.4 PU Foaming Untit
PU Raw material tanks A+B
China good brand


3.5 Electrical System
PLC system Japan PANASONIC/DELTA
Length Controller Japan PANASONIC/DELTA
Operation Touch Screen PANASONIC/DELTA
Inverter Japan PANASONIC/DELTA
Voltage 380V/50Hz/3P
