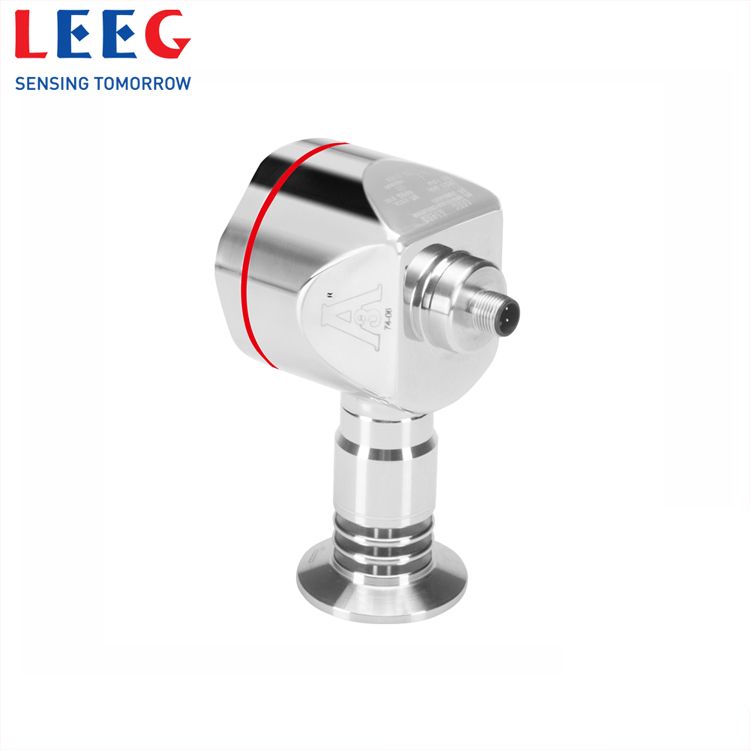

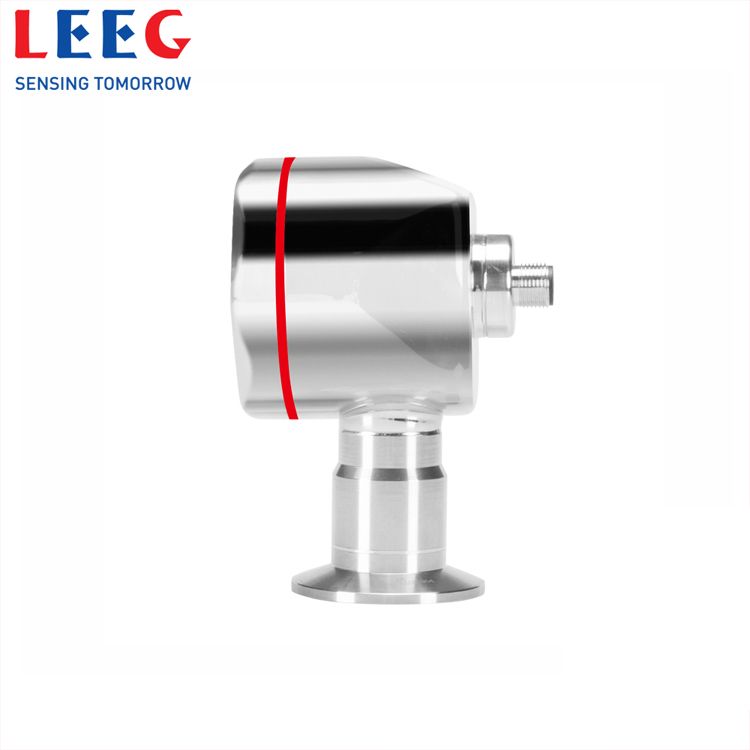

Sanitary Flush Diaphragm Silicon Pressure Sensor for Pharmacy and Food

Add to wish list

+ Add a New List

Sanitary Flush Diaphragm Silicon Pressure Sensor for Pharmacy and Food

$200.00 /piece


Stock:	1000piece

Send Inquiry

Seller Support:

Trade Assurance — To protect your orders from payment to delivery

Product Details

Transaction Comments

Basic Info

Model NO.: SMP858-TSF-S
Structure Type: Monosilicon Pressure Sensor
Accuracy Grade: 0.2G
IP Rating: IP67
Customized: Customized
Diaphragm Material: SS316L, Hastelloy C
Reference Accuracy: 0.2%, 0.5%
Process Connection: Tri-Clamp 1-1/2", Tri-Clamp 2", DIN32676 Dn32...
Application: Pharmacy, Food, Milk & Beverage
Sensor Type: Monosilicon Pressure Sensor
Transport Package: Standard Export Carton Box
Origin: China

Type: Normal Pressure Transmitter
Measuring Medium: Liquid
Pressure range: 10kpa-3MPa
Certification: CE
Media Temperature: -40- 300ºC
Output Signal: 4-20mA, 4~20mA/Hart, Customer
Medium: Viscous, Paste-Like, Adhesive, Crystallising..
Approvals: 3A, Ex-Proof, Ce Certificate
OEM Service: Available
Trademark: LEEG
Specification: Net weight about 0.6kg
HS Code: 9026201090

Product Description

Brief introduction
Sanitary pressure transmitter, designed for food and pharmaceutical industry, is suitable for CIP/SIP cleaning and sterilization.
Smart compact design, the welded process diaphragm medium parts is made of high quality stainless steel 316L, roughness≤0.4um, filling fluid with hygiene standard in line with FDA certification, variety of international standard process connections are available.

Features

Measuring range: 10kPa-3MPa

Output signal: 4-20mA, 4-20mA+HART, customer

Reference accuracy: ±0.2% URL, ±0.5% URL

Media temperature: -40-300ºC

Protecction class: IP67

Stability: ±0.2% URL/ 1 year

Process connection: M20*1.5 male, G1/2 male, G1 male, G1-1/2 male...

Approvals: 3A, CE, EX-proof certificate

Advantage
Sanitary Flush Diaphragm Silicon Pressure Sensor for Pharmacy and Food

1. Double diaphragm overload protection structure can easily cope with high overload test.
2. Isolated air cavity design to prevent condensation and avoid pollution to the media.
3. ASIC and SMT signal transmitting module. Friendly button parameters operation function, display measured data quickly.
4. 160 pressure calibration points to assure high measuring precision.
5. ISO2852,DIN32676 and others various standard mechanical connection.
6. Superb stainless steel welding technology and surface treatment process conform to international sanitary standard.
7. Roughness of stainless steel surface Ra≤ 0. 4μm, conform to international sterile standard.

Application: Pharmacy, food, dairy, milk & beverage

Ordering information chapter

Item	Parameters	Code	instruction
	Model	SMP858-TSF-S	Mono-silicon gauge pressure transmitter
sensor	Separator	-	Detailed specifications as following
	Pressure range code	S403G	40KPa
		S254G	250KPa
		S105G	1MPa
		S305G	3MPa
Electrical connetion	Separator	-	Detailed specifications as following
	Electrical connetion	F1	Stainless steel termimal, aviation plug M12*1 (4 pin) (H2), IP67,vertical mounting
		F2	Stainless steel termimal, aviation plug M12*1 (4 pin) (H2), IP67,horizontal mounting
Output	Separator	-	Detailed specifications as following
	Output signal	H	4-20mA+HART two wire, power supply: 16.5~55vdc
		F	4-20mA two wire, power supply: 10.5~55vdc

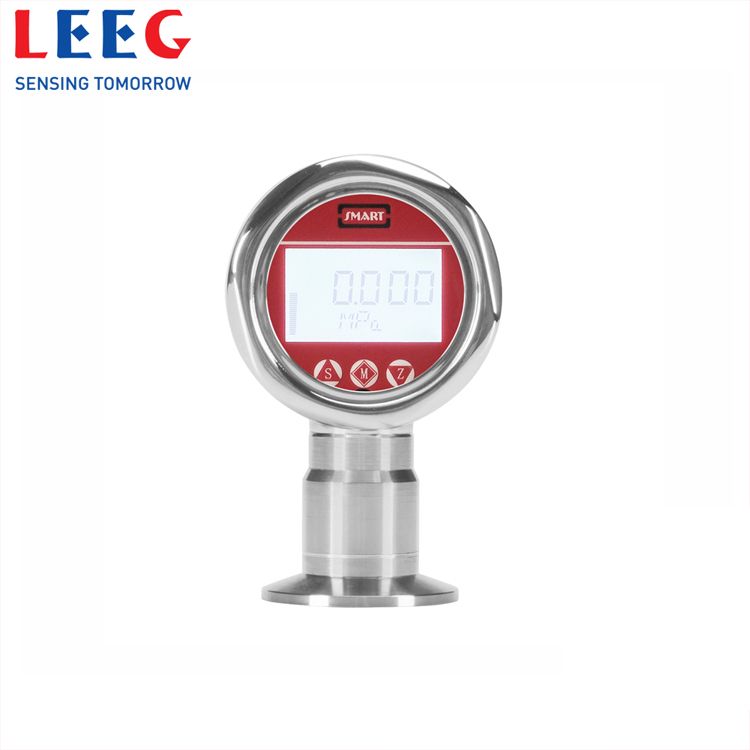

	Display	C	LCD display
		A	Without LCD display
Process connection	Separator	-	Detailed specifications as following
	Process connector material	4	Stainless Steel SUS304
		6	Stainless Steel SUS316
	Connection type	NT	Standard Connection, suitable for medium temperature -25~85ºC
		HT	With Cooling Element, suitable for medium temperature -40~150ºC
	Isolation fluid filling	F	Sanitary Filling Fluid, Neobee M-20, process temperature: -10~180ºC
		S	Sillicon Oil, process temperature: -45~205ºC
	Isolation diaphragm material	S	SUS316L stainless Steel
		H	Hastelloy C Alloy
		K01	Tri-Clamp 1-1/2", max mesuring range: 2MPa
	Process connection specifications	K02	Tri-Clamp 2", max mesuring range: 2MPa
		K03	DIN32676 DN32, max mesuring range: 1.6MPa
		K04	DIN32676 DN40, max mesuring range: 1.6MPa
		K05	DIN32676 DN50, max mesuring range: 1.6MPa
		K06	ISO2852 DN38, max mesuring range: 4MPa
		K07	ISO2852 DN40, max mesuring range: 4MPa
		K08	ISO2852 DN51, max mesuring range: 2.5MPa
		K09	DIN11851 DN25, max mesuring range: 2.5MPa
		K10	DIN11851 DN40, max mesuring range: 2.5MPa
		K11	DIN11851 DN50, max mesuring range: 2.5MPa
		K12	SMS DN1-1/2", max mesuring range: 2.5MPa
		K13	SMS DN2", max mesuring range: 2.5MPa
		K14	IDF DN1-1/2", max mesuring range: 2MPa
		K15	IDF DN2", max mesuring range: 2.MPa
		K18	DRD, max mesuring range: 2.5MPa
		K20	Plug in cartridge flush sanitary-clamp, max mesuring range: 2MPa
Additional options	Separator	-	Detailed specifications as following
	Electrical connection accessory	/J1	Air female plug (straighter) with 2m cable, 4 pin, M12*1, IP67
		/J2	Air female plug (elbow) with 2m cable, 4 pin, M12*1, IP67
		/G1	1.5" tri-clamp
		/G2	2" tri-clamp
		/M1	1.5" seal ring
		/M2	2" seal ring
	Calibration report	/Q1	Calibration report provided by our company
	Approvals (multiple)	/I1	Intrinsic safety certificate, ExiaIICT4, NEPSI
		/H1	3-A certificate
		/F3	CE certificate
